NETWORKING
TESTING THE CONNECTION
37.12 Technical Reference Manual Chapter Issue 5, Aug 14
Using a Laptop If ‘Pinging’ the network fails, a laptop computer can be attached to the printing
machine to test the network driver and card is working correctly.
NOTE
Before commencing testing, make a note of the original configurations of both
the laptop and the printer so that they can be reset on completion.
1. Connect the laptop to the DEK printer using a cross-over network cable.
2. On the laptop, change the IP Address to 195.100.100.2 with a subnet mask
of 255.255.255.0.
3. Select OK and reboot the laptop.
4. On the DEK printer, change the IP Address to 195.100.100.1 with a subnet
mask of 255.255.255.0.
5. Select OK and reboot the printer.
6. From the Windows desktop, select Start - Run and enter CMD in the box
labelled ‘Open:’.
7. Select OK.
8. Type Ping 195.100.100.2.
9. If the ping is successful, the reply displays the following information: Reply
from 195.100.100.2: bytes=32 time<10ms TTL=128.
10. Disconnect the cross-over network cable and reset the printer and laptop to
their original settings.
Finding an IP
Address
If the IP Address of a machine is not known (either PC or DEK Printer) these
can be obtained by opening the Command Prompt window. At the prompt type
IPCONFIG/ALL
All addresses are listed which the item is connected to including routers and
other servers.
STINGER
OVERVIEW
Chapter Issue 2, Aug 14 Technical Reference Manual 38.1
CHAPTER 38 STINGER
OVERVIEW
Stinger is a glue dot dispenser module attached to the camera carriage. The
dispensed adhesive is used to hold larger mass components, which may as a
result of transportation, or where under components are used, move after
placement.
After product has been printed, stinger dispenses adhesive in a pre-pro-
grammed pattern onto the product’s surface. A laser can be programmed to
take a measurement at various locations on the product; these measurements
are used to check that the dispense gap is maintained, even where product
warpage exists.

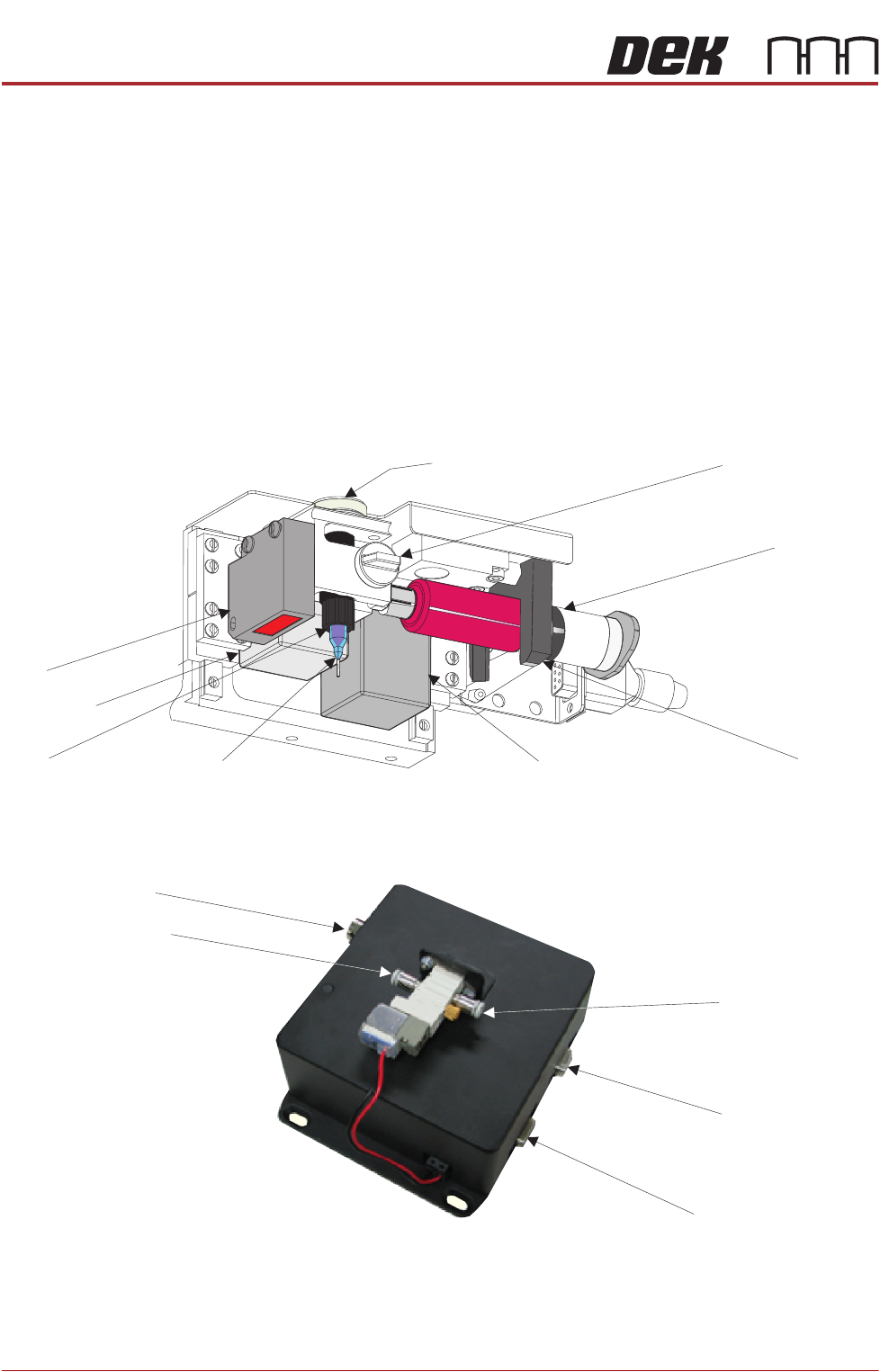

Camera Carriage
USC Bracket Location
(bracket not shown)
Stinger Assembly
Camera Mount
(camera not shown)
Board Stop Sensor
STINGER
OVERVIEW
38.2 Technical Reference Manual Chapter Issue 2, Aug 14
Elements The assembly comprises:
• Auger and auger drive motor
• 10cc Syringe and dispense nozzle
•Z-axis motor
• Laser light sensor
• Consumable low level sensor (not shown)
• Pneumatic regulator
• Electrical and pneumatic control interface
• Purge Station (optional) (not shown)
The syringe attaches to an auger valve at the outlet end and to a pneumatic
supply at its input. A ‘C’ shaped clamp holds the unit in position at the rear and
it is fixed at the front with a plastic clamp screw.
The control interface is mounted on the panel at the rear of the printer. It
provides all the electrical and the pneumatic control functionality. An air pres-
sure regulator sets pneumatic pressure.
