4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 53
► Press the flap slightly outwards,
above the pin, so that you can unhook
it on this side.
► Carefully turn the flap to one side and
unhook it on the other side as well.
► Remove the flap.
Installation
Installation is performed by following the above instructions in the reverse order.
► Make sure that the replacement flap has been fitted with all the required safety labels and the
handle.
► First hook the flap into place at the pin on one side.
► Push the other side of the flap slightly apart (apply slight pressure) over the second pin.
4.2.26 Replacing the left side panel
Equipment required
Phillips screwdriver
Loctite 222 (screw locking varnish)
Spare part: left side panel [03062390-xx]
NOTICE
Right side panel
The right side panel can not be replaced, as it features the typeplate with serial number.
Removal
► Place the LDU-X down on its right-hand side, on a stable, clean and even surface.
► Remove the old left side panel (see section4.2.29.1 "Removing the Side Covers" [}57]).
Installation
► Fit the new left side panel (see section 4.2.29.10 "Fitting the Side Covers" [}65]).
4 Service Work
4.2 Replacing Spare Parts
54 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017
4.2.27 Replacing the cable X adapter - control board
Overview

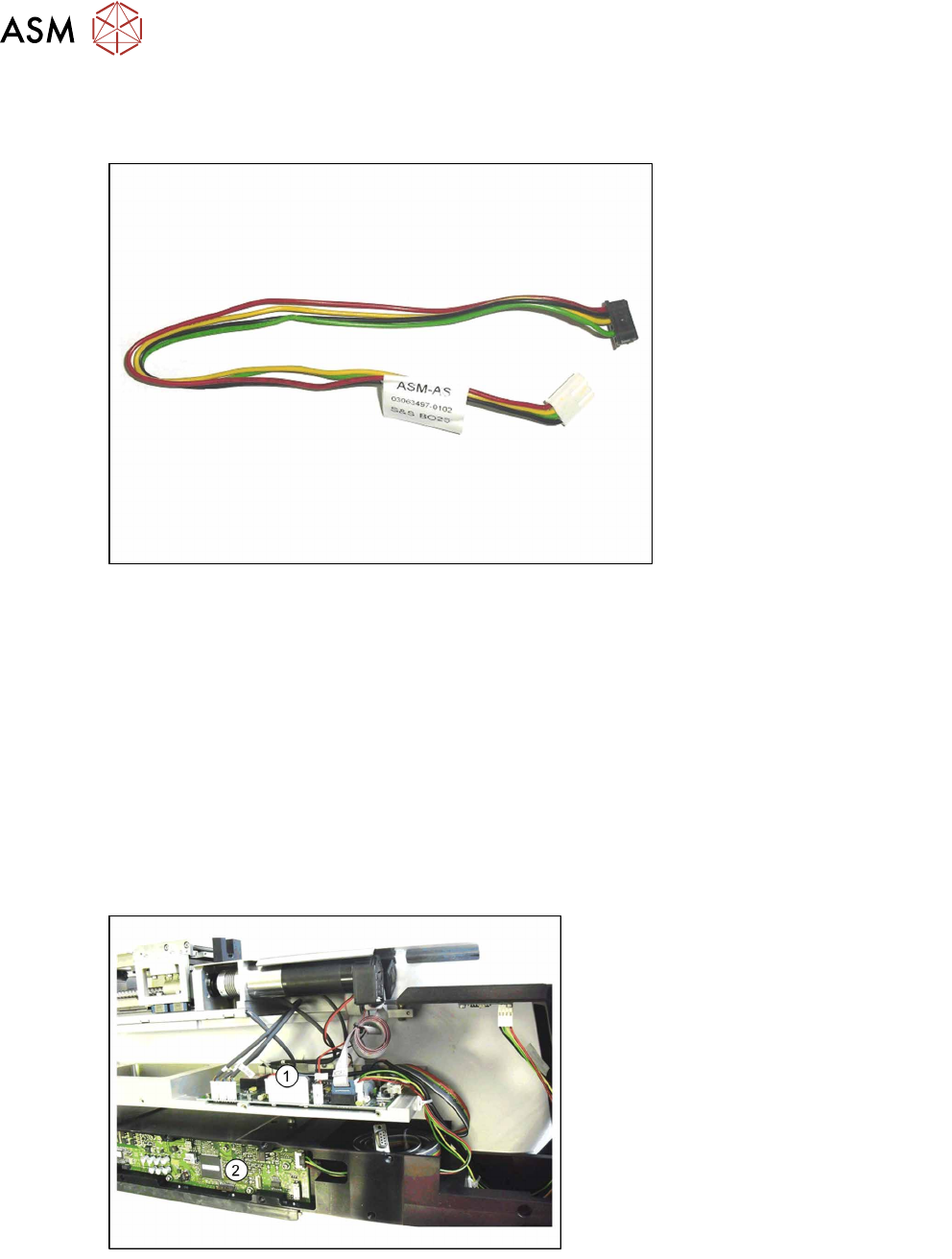

Cable X adapter - control board [03063497-xx]
Equipment required
●
Standard tools
●
Loctite 222 (screw locking varnish)
●
Phillips screwdriver
●
2 small cable ties
●
Spare part: Cable X adapter - control board [03063497-xx]
Removal
► Remove the left side cover (see section 4.2.29.1 "Removing the Side Covers" [}57]).
The LDU-X has now been taken apart into its main components and the press-fit connection to the
control board are accessible.
1. LDU-X control board
2. X adapter control board
4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 55
► Open the two cable ties marked in the
diagram.
► Pull the connector for the "cable X ad-
apter - control board" vertically up and
out of the connection for the LDU-X
control board.
► Pull the connector for the "cable X ad-
apter - control board" sideways and
out of the connection for the X ad-
apter - control board.
Installation
Installation is performed by following the same instructions in the reverse order.
► Plug the black connector for the "cable X adapter - control board" sideways into the connec-
tion for the X adapter - control board.
► Plug the white connector for the "cable X adapter - control board" vertically into the connection
for the LDU-X - control board.
► Replace the two cable ties which you removed earlier on.
► Fit the left side cover into place (see section 4.2.29.10 "Fitting the Side Covers" [}65]).
