4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 63
Description of terminal strip (11)
In the terminal strip diagram, terminal K1 is located at the top, terminal K16 is at the bottom.
K1 30V K9 -
K2 30V identification FS2 connection to K8 K10 -
K3 30V level sensor (+) brown K11 -
K4 30V key switch K12 Refill LED (+)
K5 Key switch K313 GND refill LED (-) blue
K6 Level sensor switch cable black K14 GND level sensor (-)
K7 - K15 GND
K8 Identification FS2 connection to K2 may
only be used with FS2
K16 GND

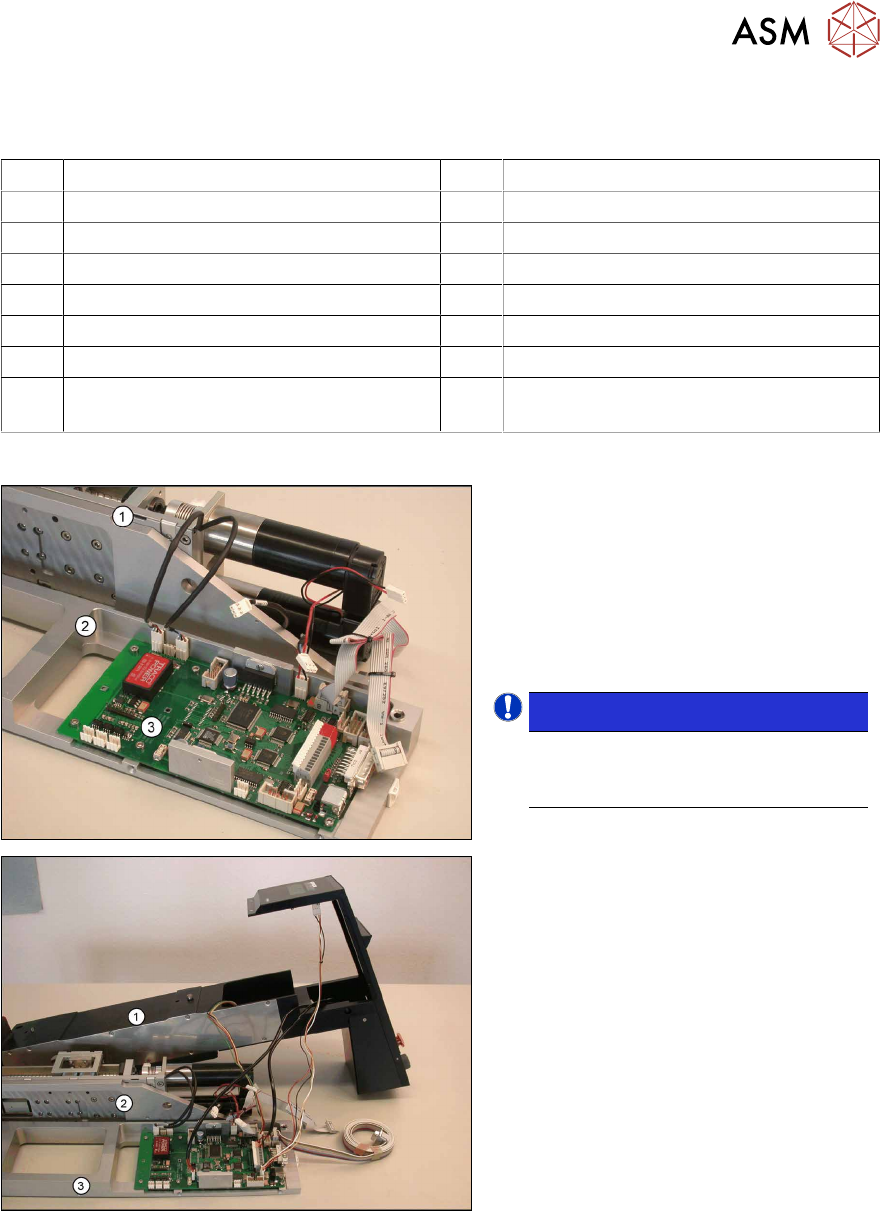

4.2.29.9 Assembling and Fitting the LDU Basis
► Place the lower section of the base
unit(2) and the LDU-X control
board(3) and the upper section of the
base unit(1) next to one another, as
shown in the diagram.
► Restore all press-fit connections in the
rear part of the LDU-X control board,
which points to the upper section.
 NOTICE!
For an overview of the LDU-X con-
trol board press-fit connections,
refer to the previous section.
.
► Place the LDU housing(1) with the
other parts, as shown in the dia-
gram(2) and(3).
► Restore all press-fit connections
between the housing and the LDU-X
control board (service and emergency
stop button, display, control board X
adapter).
4 Service Work
4.2 Replacing Spare Parts
64 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017

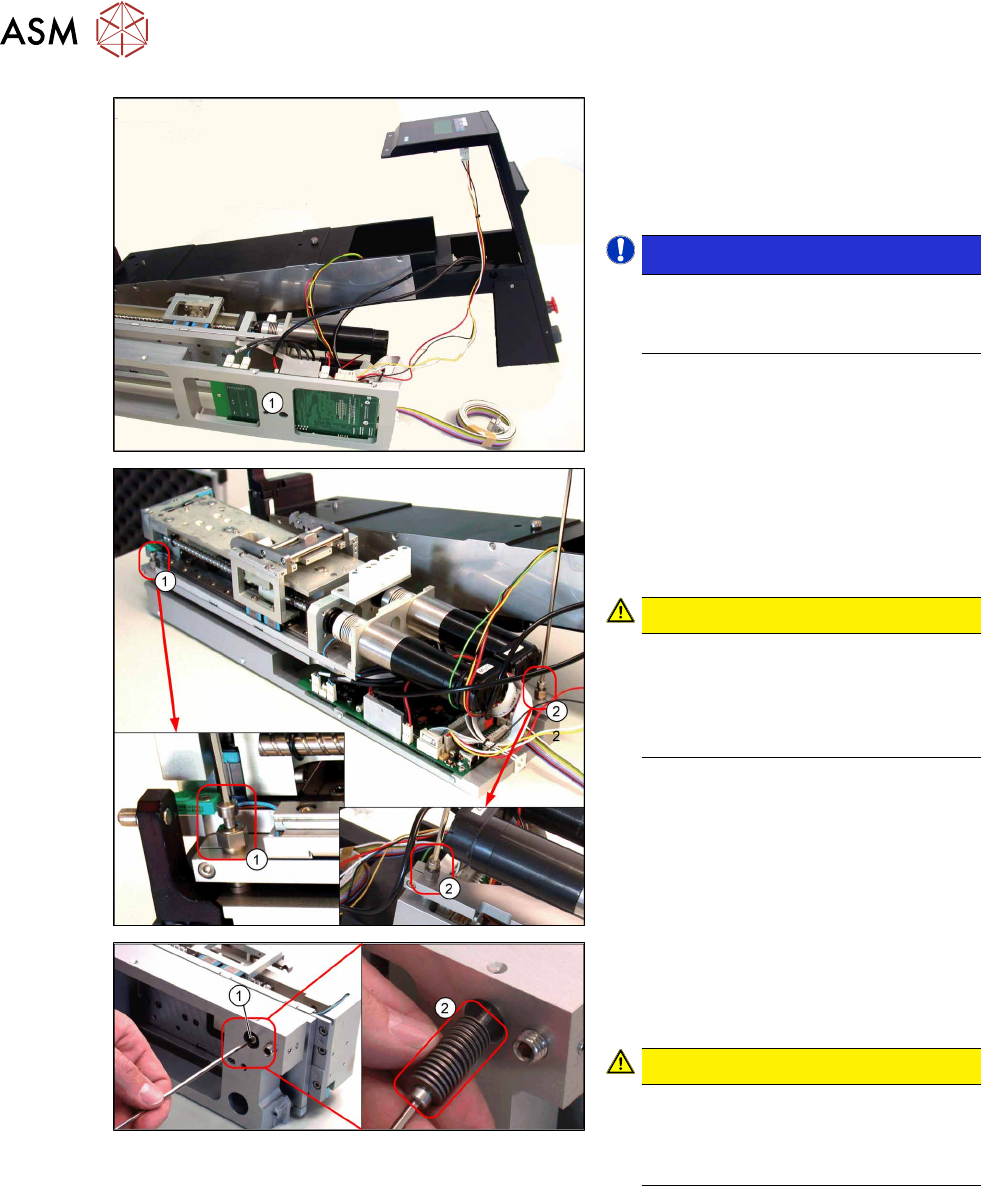

► Place the lower section of the base
unit(1) behind the upper section, as
shown in the diagram.
► Restore the other press-fit connec-
tions for the LDU-X control board.
 NOTICE!
Check all press-fit connections.
These parts are not easy to reach
when everything has been fitted.
.
► Fit the upper and lower sections of the
base unit together. Make sure that the
rests for the two cup spring screws(1)
and(2) are still in the lower section of
the base unit.
 CAUTION!
Running cables
Make sure that the cables can not
rub anywhere or block moving parts.
Take care that the cables are not
trapped or folded.
.
► Screw both parts together with the
two adjustment screws(1) and(2) .
► Reinsert the screw (1) fastening the
upper section of the LDU base unit
with the cup springs (2) and then
tighten.
 CAUTION!
Cup springs
Make sure you have the correct num-
ber of cup springs (29 x). These must
be in pairs.
.
4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 65

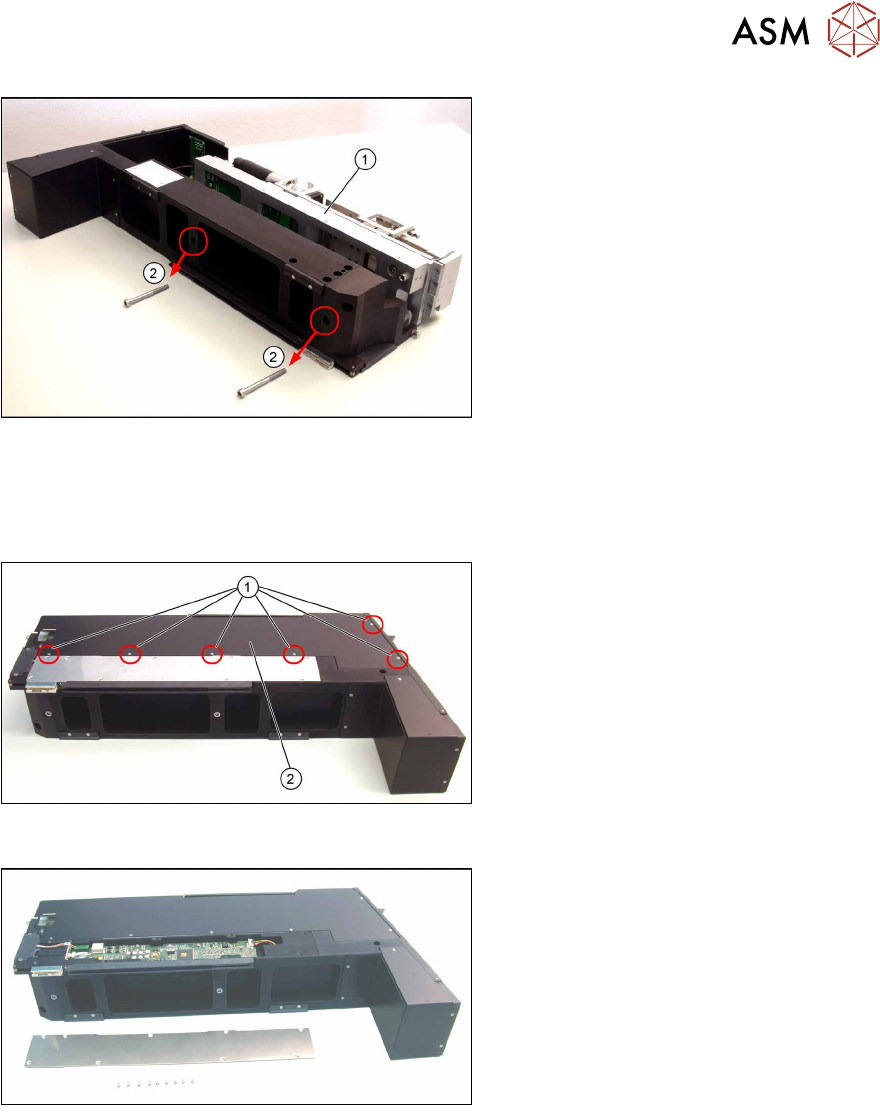

► Refit the LDU base unit(1) on the
LDU housing and fix this into place
with the two fastening screws (2).
See also
2 4.2.29.8 "LDU-X Controller" [}62]
4.2.29.10 Fitting the Side Covers
► Refit the left side cover(2) and fix into
place with the 6 screws(1).
► Do the same for the right side cover.
4.2.29.11 Removing the Controller Cover
► Loosen and remove the 9 screws
fastening the side cover plate and
place the cover plate to one side.
