4 Service Work 4.2 Replacing Spare Parts Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 65 ► Refit the LDU base unit (1) on the LDU housing and fix this into place with the two fastening screws (2) . See also …
4 Service Work
4.2 Replacing Spare Parts
64 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017
► Place the lower section of the base
unit(1) behind the upper section, as
shown in the diagram.
► Restore the other press-fit connec-
tions for the LDU-X control board.
NOTICE!
Check all press-fit connections.
These parts are not easy to reach
when everything has been fitted.
.
► Fit the upper and lower sections of the
base unit together. Make sure that the
rests for the two cup spring screws(1)
and(2) are still in the lower section of
the base unit.
CAUTION!
Running cables
Make sure that the cables can not
rub anywhere or block moving parts.
Take care that the cables are not
trapped or folded.
.
► Screw both parts together with the
two adjustment screws(1) and(2) .
► Reinsert the screw (1) fastening the
upper section of the LDU base unit
with the cup springs (2) and then
tighten.
CAUTION!
Cup springs
Make sure you have the correct num-
ber of cup springs (29 x). These must
be in pairs.
.
4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 65
► Refit the LDU base unit(1) on the
LDU housing and fix this into place
with the two fastening screws (2).
See also
2 4.2.29.8 "LDU-X Controller" [}62]
4.2.29.10 Fitting the Side Covers
► Refit the left side cover(2) and fix into
place with the 6 screws(1).
► Do the same for the right side cover.
4.2.29.11 Removing the Controller Cover
► Loosen and remove the 9 screws
fastening the side cover plate and
place the cover plate to one side.
4 Service Work
4.2 Replacing Spare Parts
66 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017

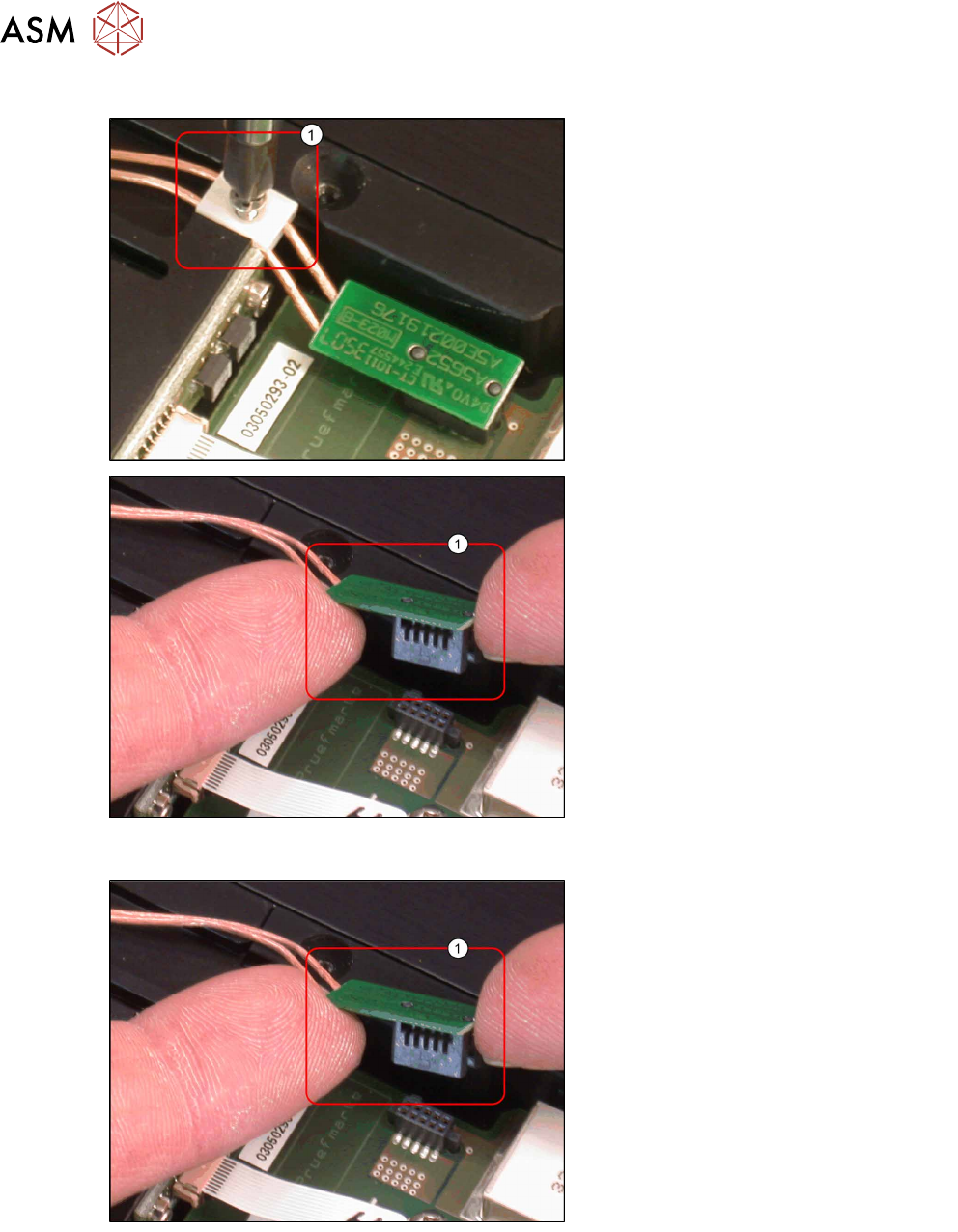

4.2.29.12 Removing the EDIF Unit
► Loosen the screw(1) fastening the
cable clamp on the two cables to the
EDIF and remove the cable clamp.
► Remove the connector(1) for the EDIF
unit from the control board.
4.2.29.13 Fitting the EDIF Unit
► Plug the connector(1) for the EDIF
unit into the control board.
