VERSION: .1.01 E

25 / 52

5.1.3 Set up the printer

5.1.3.1 Unpacking& check

After opening the box, take out the filling material first, and then carefully take out the

printer。

Check if the following items are complete: (printer, transformer, ribbon, label paper, and

communication cable)

Please place the printer on a flat and sturdy surface and check for any damage caused by

transportation

5.1.3.2 Power and communication connection

5.1.3.2.1Connect the printer power cord

Keep the power on switch in the "off" position

Connect one end of the transformer to the power socket of the printer, and the other end to

VERSION: .1.01 E

26 / 52

an external AC power source

Note:

When connecting to the power socket of the printer, it is necessary to avoid touching the

locking ring of the parallel port

5.1.3.2.2After confirming that both the printer and counter power are turned off, please use

a dedicated communication cable to connect the barcode machine serial port to the

counter printer interface and tighten it with screws to prevent loosening。

VERSION: .1.01 E

27 / 52

5.1.4 Introduction of Printer

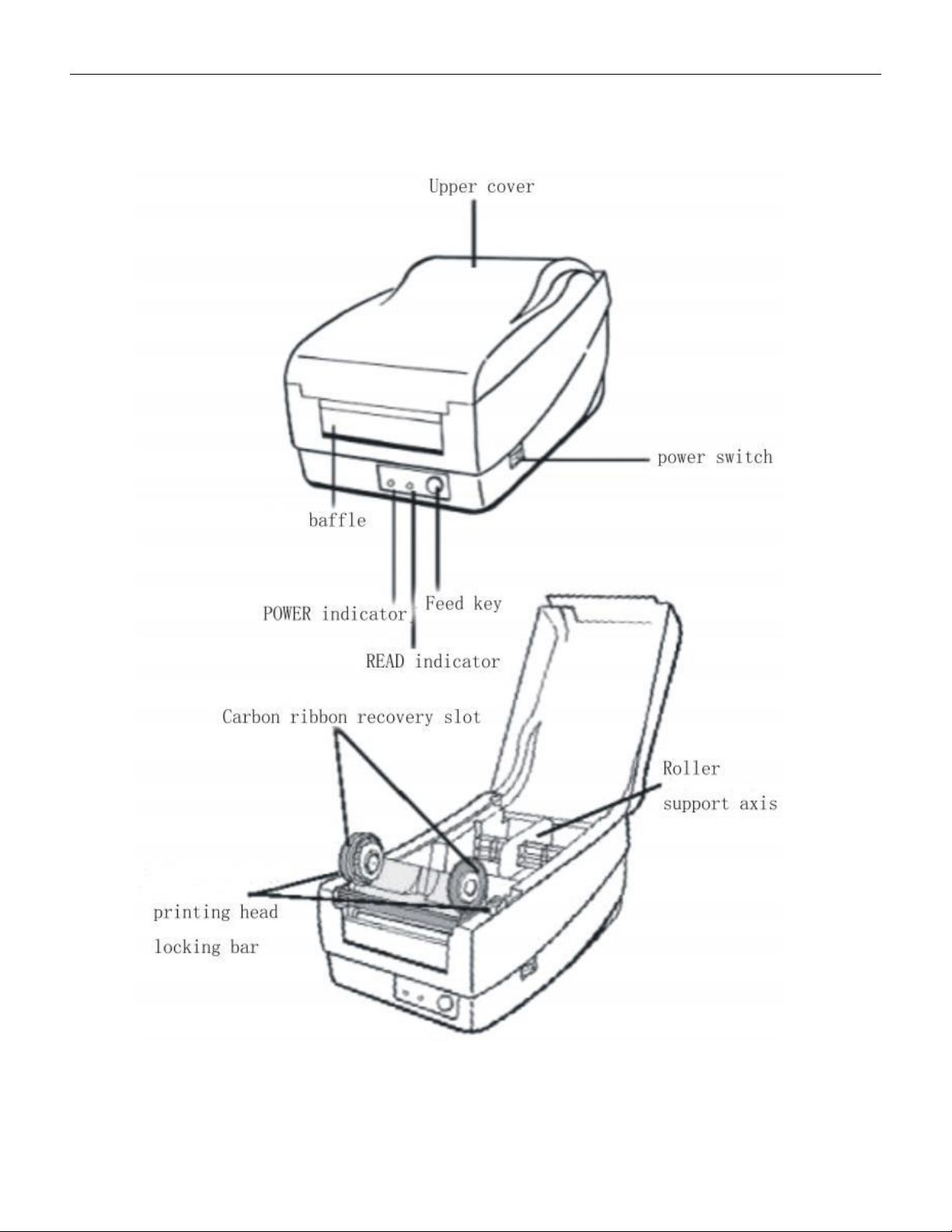

5.1.4.1 Structure of Printer, see below pictures
