1.2 Precautions for pocket check function
◼ Do not use it outdoors or in places where external light can directly shine on the light
receiving surface.
◼ The location requirements for setting the benchmark value should be close to the
lighting conditions of the place where the machine is used.
◼ When reinserting the optical fiber, ensure that the fiber head facing downwards is
connected to the amplifier's light emission hole.
◼ Do not dismantle or forcefully bend optical fibers.
1.3 Precautions for label printer and bar code reader
◼ Please place the printer on a level, sturdy desktop or flat surface, away from damp, water,
and high temperature areas.
◼ Please ensure that the power specifications you are using are consistent with the
requirements of the printer transformer, otherwise it may cause the machine to burn out or
malfunction
◼ Please do not attempt to modify the printer settings and confirm that the consumables
carbon ribbon and label paper are consistent with the requirements; Label paper and
carbon ribbon can be purchased from printing consumables suppliers. If there are special
requirements, please contact us or our distributors
◼The communication cable of the printer is a standard USB port, which is a special cable of
our company. If you need it, please contact us or our distributor to purchase it.
◼ This machine only accepts the input/output devices recommended by Smtech.
Changing them yourself will damage the machine or prevent the device from being driven.
If there are other devices that need to be connected, customized software can be
communicated.
2. Overview
2.1 Application
The COU2000 Pro series products use the corresponding relationship between the part
carrier guide hole and the part to accurately determine the number of SMD parts, which
can achieve convenient and fast part counting and is a good helper for material
management.
VERSION: .1.01 E
6 / 52
2.2 Features
2.2.1 High accuracy and no counting error.
2.2.2 SMD universal tape packaging parts are applicable.
2.2.3 Both forward and reverse directions can be counted, with a repeat check function; Pre
set quantity, precise shutdown.
2.2.4 Can connect printers and scanners to achieve label printing and barcode copying.
2.2.5 Add a type-c interface to connect the counter to the PC terminal and achieve data
interconnection.
2.2.6 Add wireless antenna to achieve WIFI connection for data transmission.
2.2.7 Simple operation and unique anti-strip detachment design minimize damage to the
strip.
The tilted operation panel designed in patent 1.2.8 allows users to see both the display and
the components in the tape simultaneously.
2.3 Specifications
Electric Source
100-240 V~ ±10％ AC﹝50hz﹞50W/2A
Counting range
-999999----+999999 PCS
Dimension(outer)
450*240*277mm (W*D*H)
Package Size
610*305*335 mm (D*W*H)
Weight
9.5KG
VERSION: .1.01 E
7 / 52

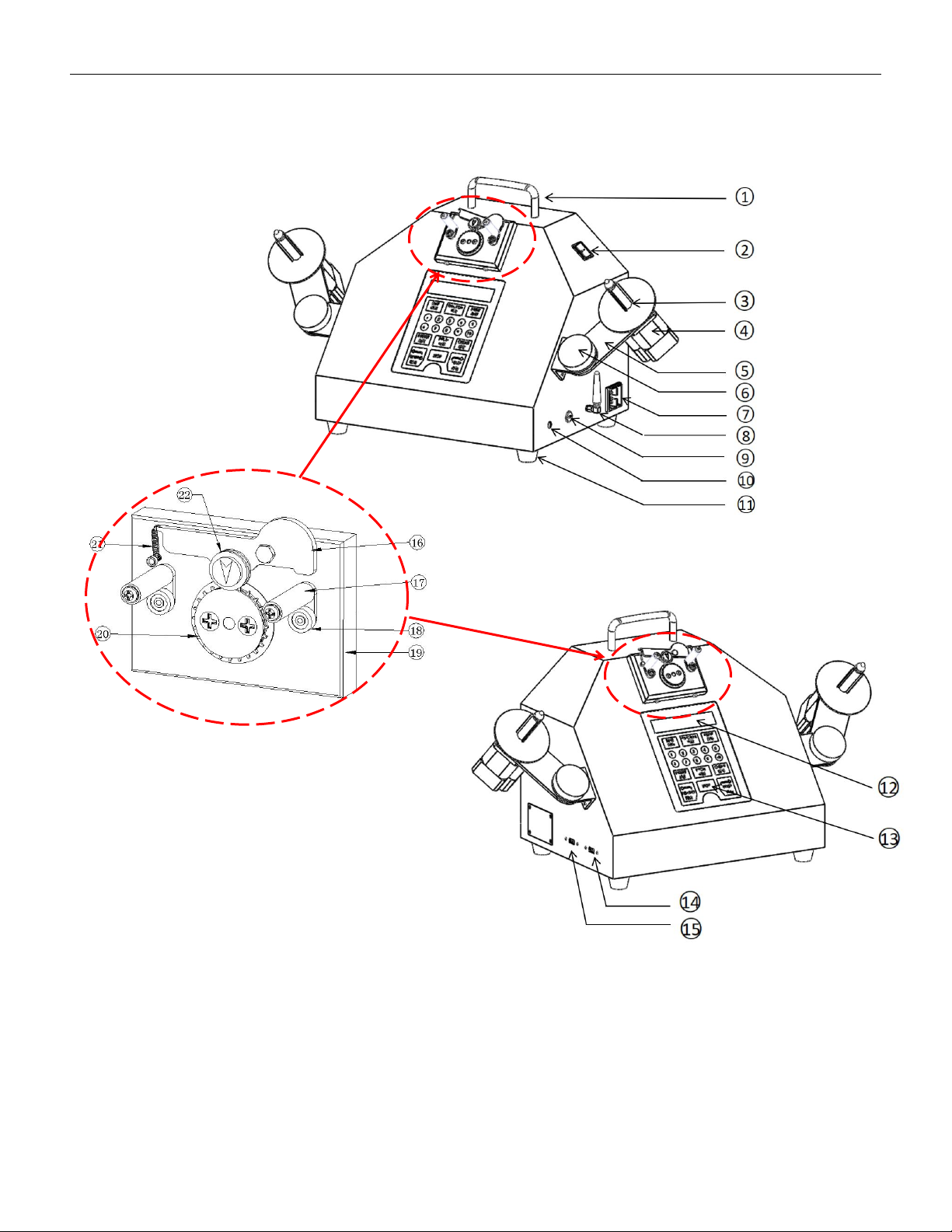

3．Parts description
3.1 ADV Pro
1） Handle
2） Power switch
3） Reeling shaft
4） Motor
5）Adjustable arm
6） Locking knob
7） Power supply
8）2.4G Antenna
9）Type C port
10） Enclosure grounding point
11）Foot pad
