2.2 Features
2.2.1 High accuracy and no counting error.
2.2.2 SMD universal tape packaging parts are applicable.
2.2.3 Both forward and reverse directions can be counted, with a repeat check function; Pre
set quantity, precise shutdown.
2.2.4 Can connect printers and scanners to achieve label printing and barcode copying.
2.2.5 Add a type-c interface to connect the counter to the PC terminal and achieve data
interconnection.
2.2.6 Add wireless antenna to achieve WIFI connection for data transmission.
2.2.7 Simple operation and unique anti-strip detachment design minimize damage to the
strip.
The tilted operation panel designed in patent 1.2.8 allows users to see both the display and
the components in the tape simultaneously.
2.3 Specifications
Electric Source
100-240 V~ ±10％ AC﹝50hz﹞50W/2A
Counting range
-999999----+999999 PCS
Dimension(outer)
450*240*277mm (W*D*H)
Package Size
610*305*335 mm (D*W*H)
Weight
9.5KG
VERSION: .1.01 E
7 / 52
3．Parts description
3.1 ADV Pro
1） Handle
2） Power switch
3） Reeling shaft
4） Motor
5）Adjustable arm
6） Locking knob
7） Power supply
8）2.4G Antenna
9）Type C port
10） Enclosure grounding point
11）Foot pad
VERSION: .1.01 E
8 / 52

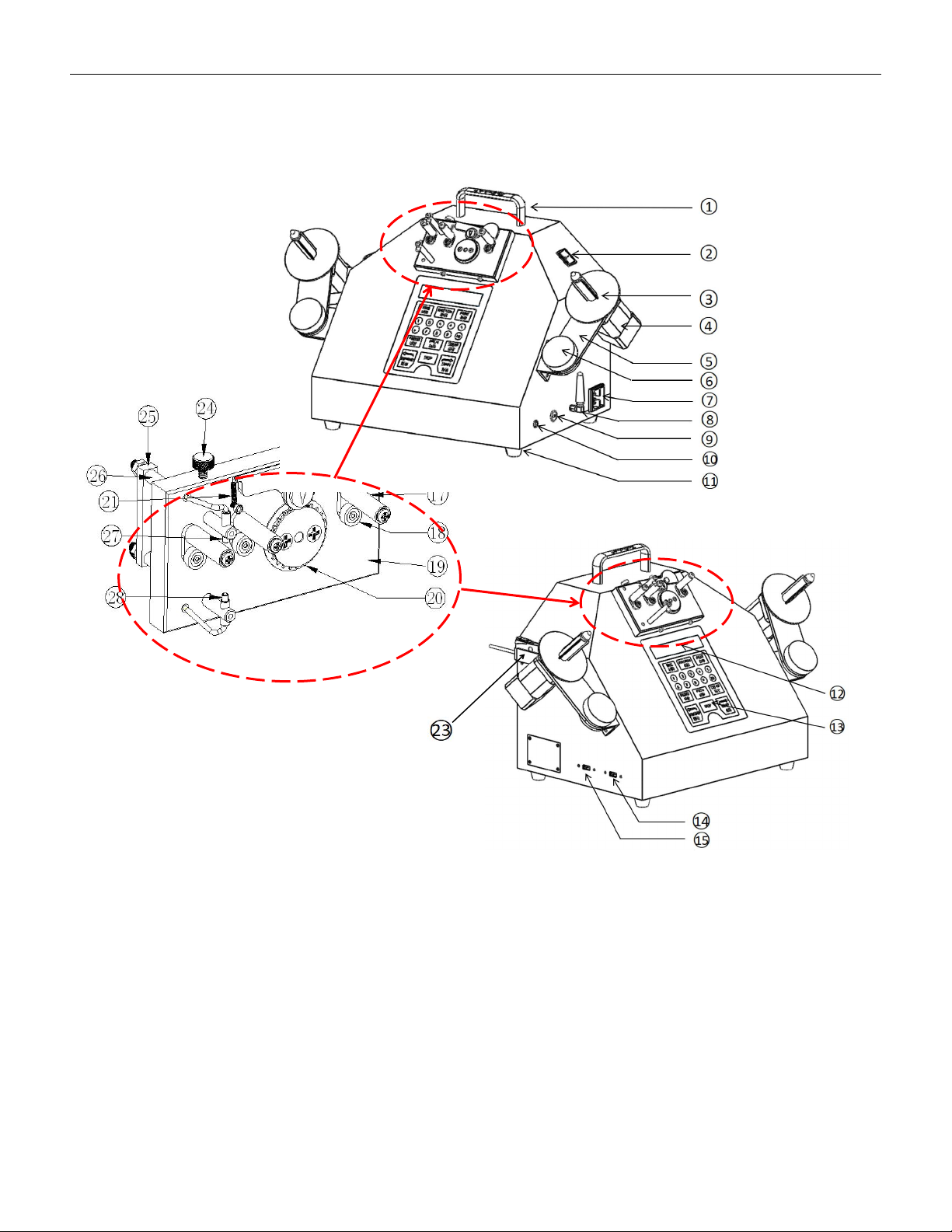

3.2 EX Pro
1）Handle 11）Foot pad
2）Power switch 12）LCD
3）Reeling shaft 13）Conttrol panel 21）Guide spring
4）Motor 14）Lable printer port 22）Guide pulley
5）Adjustable arm 15）Barcode reader port 23）Amplifier
6）Locking knob 16）Guide pulley 24）Adjust screw
7）Power supply 17）Upper guiding Pole 25）Guide rod fixing block
8）2.4G Antenna 18）Lower guiding Pole 26）Fiber optic tube fixing rod
9）Type-C port 19）Counter box 27）Fiber optic transmitter
10）Enclosure grounding point 20）Counter gear 28）Fiber optic receiver
