VERSION: .1.01 E 33 / 52 Pow er Sw it ch Control power con nection o r discon nection status Note: when connecting communication lines or power cords, be sure that the switch is on the OFF location. FE ED Key Feed paper …
VERSION: .1.01 E
32 / 52
(as above), and then roll the gear for a full circle
5.1.4.5 Restore factory setting
5.1.4.5.1 Power on and wait for more than 5 seconds
5.1.4.5.2 Press and hold the "FEED" button for about 10 seconds, and the "READY" and
power indicator lights will turn off in sequence。
5.1.4.5.3 Release the "FEED" button when the two indicator lights light up in sequence。
5.1.4.5.4 At this point, the printer will send out a 12 inch long blank label and restore the
factory settings。
The above are solutions for situations where the printer may be damaged or set incorrectly.
All settings will be stored in the printer and will not be lost when the power is turned off。
5.1.4.6 Printer panel operation guide
VERSION: .1.01 E
33 / 52
Power Switch
Control power connection or disconnection status
Note: when connecting communication lines or power cords, be sure that the switch is on
the OFF location.
FEED Key
Feed paper to the next location
Press slightly once—Feed paper to the next location
In the continuous print status, slightly press the FEED key—Enter the pause
status
Slight press the FEED key in the pause status—Enter the normal print status
Ready Indicator
Display the power and error statuses OFF—The printer is off
Green—The printer is started
Flash—There is an error, and check against the following table:
The POWER and READY indicators flash
contemporaneity
The POWER and READY indicators flash
alternately
Possible problem
Solution
Possible problem
Solution
Label spacing
cannot be found
Check the label path
Check the label detector
The carbon ribbon is
used up
Reinstall carbon
ribbon
Paper is used up
Reload paper roll
The carbon ribbon is
blocked
Clean up the carbon
ribbon
The paper roll is
not loaded
Load the paper roll
The carbon ribbon
Detector goes wrong
Replace the carbon
Ribbon detector
VERSION: .1.01 E
34 / 52
5.2 Barcode Copy
5.2.1 Overview
The barcode duplicate option provided by the COUP2000 Pro series SMD counter is used to
duplicate the barcode on the original label of the material being counted onto the newly
printed label after counting, avoiding confusion。
The barcode copying function is only meaningful when a printer is installed on the
COUP2000 Pro series machine。
This barcode scanner is only used as an input for the part counter COUP2000 Pro series. The
communication method, character format, and barcode specifications have been debugged
and set, as shown in the table below:
Scanner model
SCAN:A-9295P
Zebra:DS2208
Light source
660nm
624nm
Scan distance
5-210mm
50-360mm
Scan width
210mm
150mm
Scan angle
±60°
±65°
Communication
USB
USB
Power supply
5V
5V

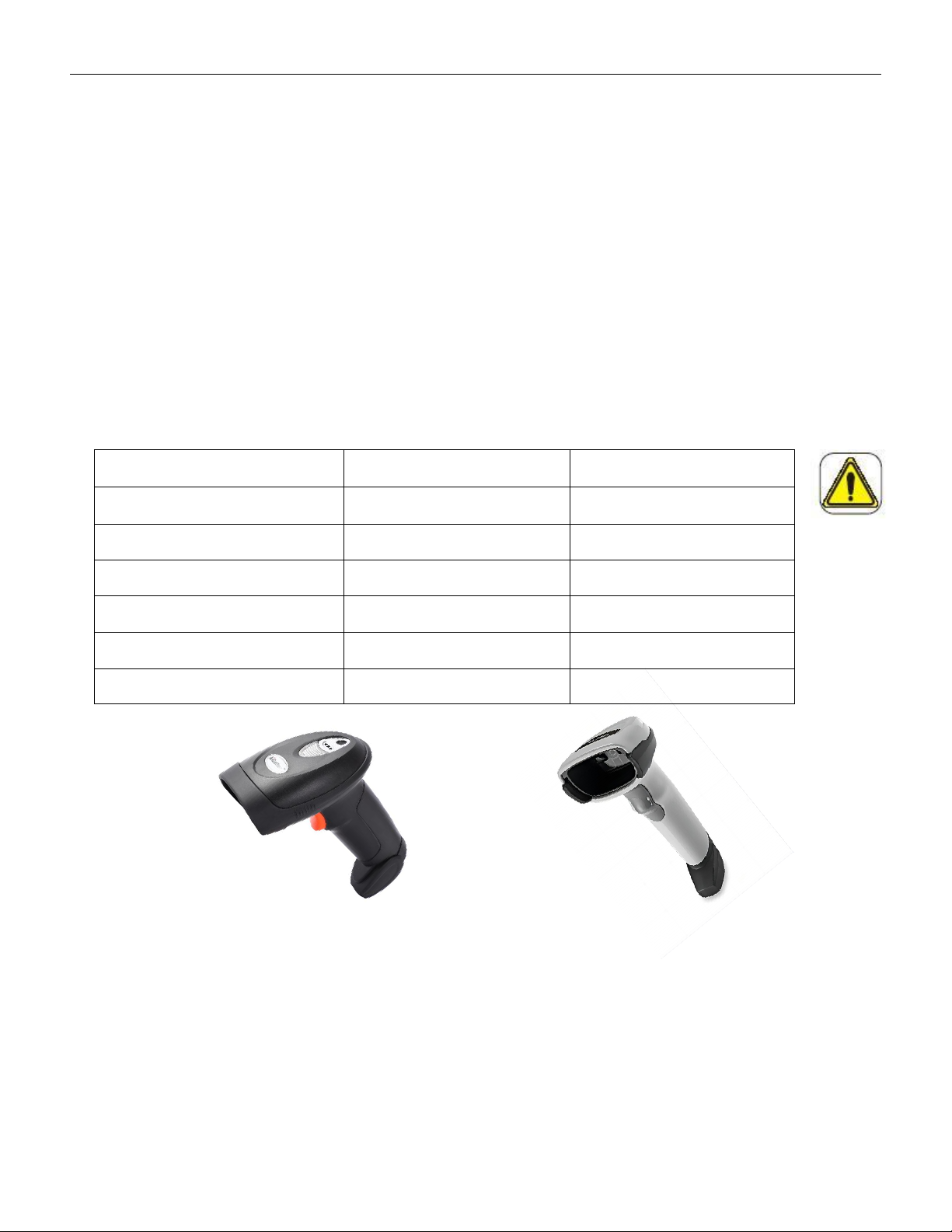

A-9295P DS2208
Please do not attempt to modify the settings of this barcode scanner. If you have any special
requirements, please contact us or our distributors
The barcode scanner SCAN: A-9295P/Zebra: DS2208 operates at 5V, and the counter
automatically supplies 5V voltage to the scanner without the need for external voltage; If
