2OM-1751 3-9 1303-001 1.2.5 Creating the Link ID Procedure (1) Select the component ID as an original component ID before linking. (The selected component ID turns blue, indicating that it is selected.) F2C8 (2) Press th…

2OM-1751

3-81303-001

1.2.4 Renaming the Component ID

Procedure

(1) Select the component ID to be renamed.

(The selected component ID turns blue, indicating that it is selected.)

F2C6

(2) Press the [Rename...] button.

(The "Rename" dialog box opens.)

F2C7

(3) Enter a new component ID name in the "New Component ID" text box and

press the [OK] button.

(The name of the original component ID is changed to the new one.)

1.2 Basic Operations in "Selection of component ID" Window

2OM-1751

3-91303-001

1.2.5 Creating the Link ID

Procedure

(1) Select the component ID as an original component ID before linking.

(The selected component ID turns blue, indicating that it is selected.)

F2C8

(2) Press the [Create Link ID] button.

(The "Create Link ID" dialog box opens.)

F2C9

(3) Enter a new link ID name in the "New Component ID After Linking" text

box and press the [OK] button.

(A new link ID is created.)

Note

Creating Link ID means giving a new name to the original component ID

before linking while keeping the data of the original component ID as it is.

For application, it can be used for a capacitor of the same shape as other

one but of different capacity.

1.2 Basic Operations in "Selection of component ID" Window

2OM-1751

3-101303-001

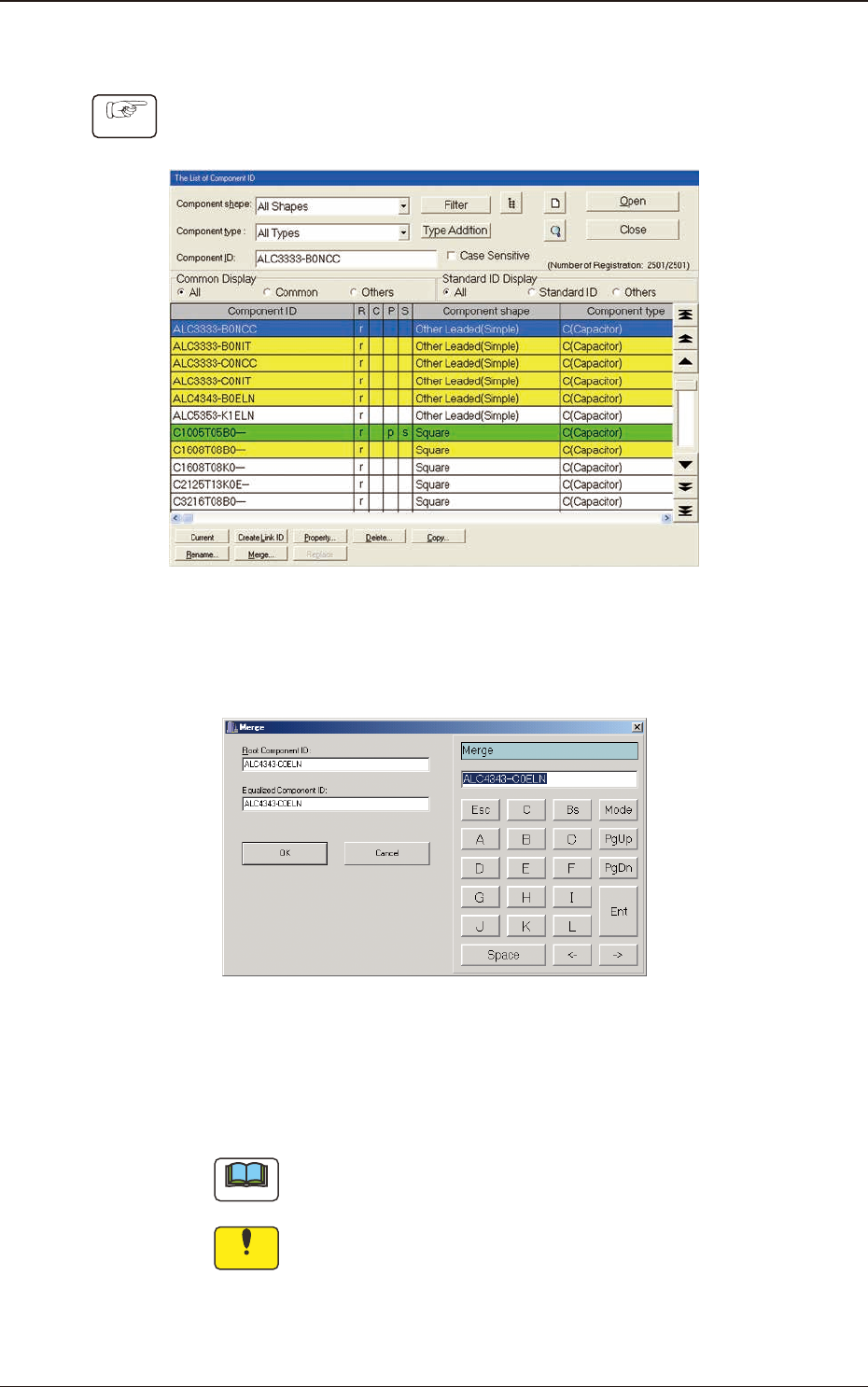

1.2.6 Merging the Component ID

Procedure

(1) Select the desired root component ID.

(The selected component ID turns blue, indicating that it is selected.)

F2C10

(2) Press the [Merge...] button.

(The "Merge" dialog box opens.)

F2C11

(3) Enter the component ID name to be merged in the "Equalized Component

ID:" text box and press the [OK] button.

(The component ID is merged.)

Note

The merging function makes it possible to set a registered component ID

as a link ID for another root component.

Notice

The information on the component ID (component library data)

to be merged becomes the same as the information on the root

component ID (component library data).

1.2 Basic Operations in "Selection of component ID" Window
