2OM-1751 6-5 1303-001 [5] [Setup all Line Select] Button Using this button, the setup setting in the pattern program change is performed. Whether or not the conveyor width, support pin or nozzle is changed, is set. F2F5 …
2OM-1751
6-41303-001

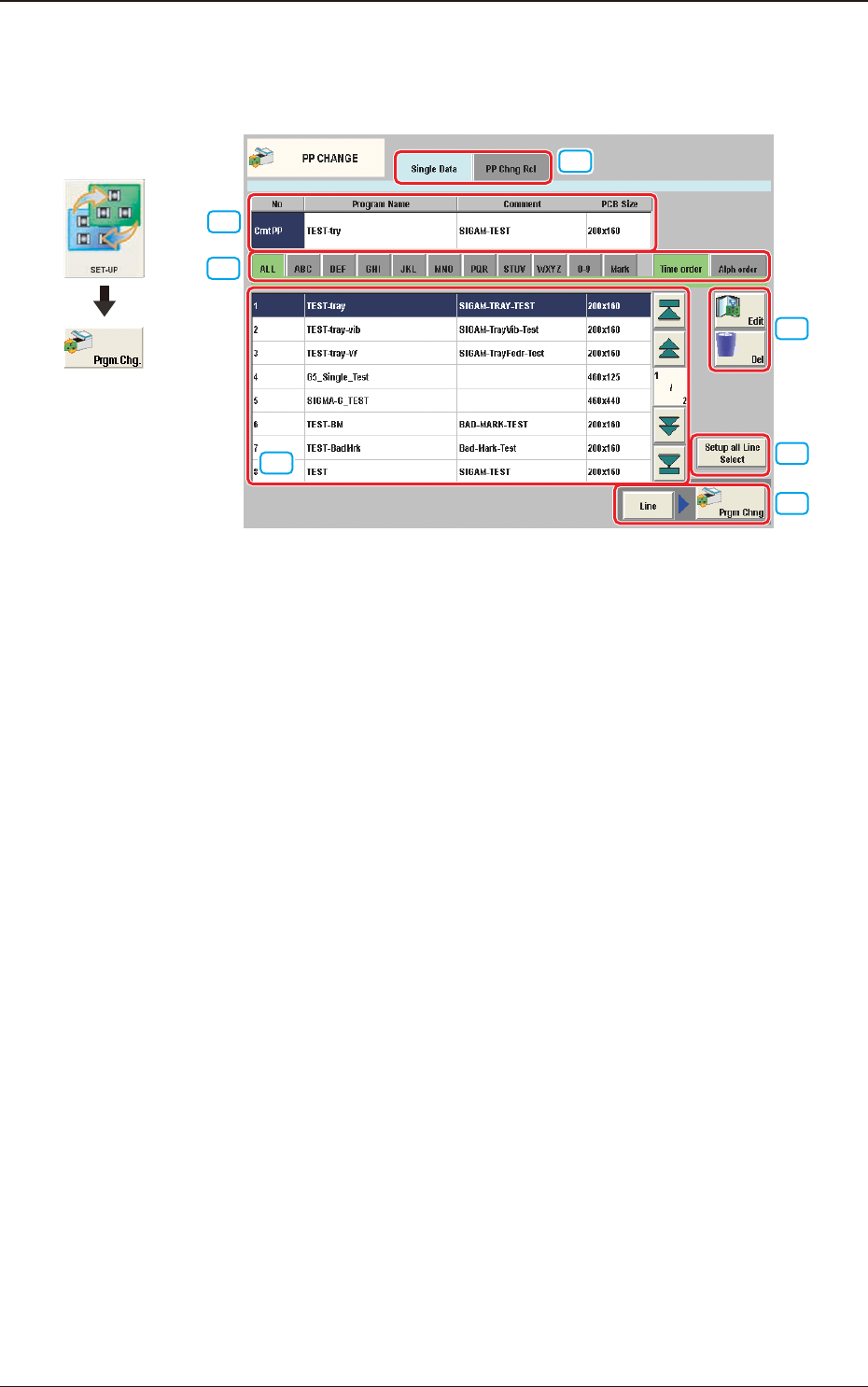

3. "PP CHANGE" Window
The "PP CHANGE" window appears.
[1]
[7]
[4]
[5]
[6]
[2]
[3]
F2F4
[1] Cmt PP
The pattern program currently selected is displayed in this section.
[2] Pattern Program Select tabs
The data items displayed in "[3] Pattern Program List" are divided into the
tab sheet items and displayed.
[3] Pattern Program List
The registered pattern programs are displayed as a list.
[4] [Edit] Button, [Del] Button
[Edit] Button
: When pressed, the pattern program selected in the "[3]
Pattern Program List" is edited.
[Del] Button
: When pressed, the pattern program selected in the "[3]
Pattern Program List" is deleted.
Graphic
Development
3. "PP CHANGE" Window
2OM-1751
6-51303-001
[5] [Setup all Line Select] Button
Using this button, the setup setting in the pattern program change is
performed. Whether or not the conveyor width, support pin or nozzle is
changed, is set.
F2F5
PCB Count
: Whether or not the No. of PCBs to be produced
is cleared, is set in this selection box.
PP.MNG.DT
: Whether of not the pattern program management
data is cleared, is set in this selection box.
Cnvr.Width
: Whether or not the conveyor width is setup, is
set in this selection box.
PCB Sup.Pins Chg.Noz.
: Whether or not the support pins are changed
automatically, is set in this selection box.
Noz.Chg.
: Whether or not the nozzle change operation is
performed, is set in this selection box.
[6] [Prgm Chng] Button
When pressed, the pattern program is change to the one selected in the "[3]
Pattern Program List".
[Line] Button
This button is pressed when the pattern program in all the machines in the
line is to be changed.
Light Blue
: This shows that the pattern program in all the machines in the
line is to be changed.
Gray
: This shows that the pattern program in the single specied
machine is to be changed.
Note
When the line consists of a single machine, this button is not displayed.
3. "PP CHANGE" Window
2OM-1751
6-6
[7] "PP Chng Rcl" Tab Sheet
The pattern program change history is displayed in this section.
F2F6
1303-001
