PROFLOW ATX ELECTRICAL SCHEMATIC 12.12 Technical Reference Manual Chapter Issue 6, Jan 16 Figure 12-6 Sheet 2 P rint C arria g e Inp u t/O u tp u t Node 3 N 3S K 2A CA N I n From Conditioning Grid D rive Motor ProF l ow …
PROFLOW ATX
ELECTRICAL SCHEMATIC
Chapter Issue 6, Jan 16 Technical Reference Manual 12.11
ELECTRICAL SCHEMATIC

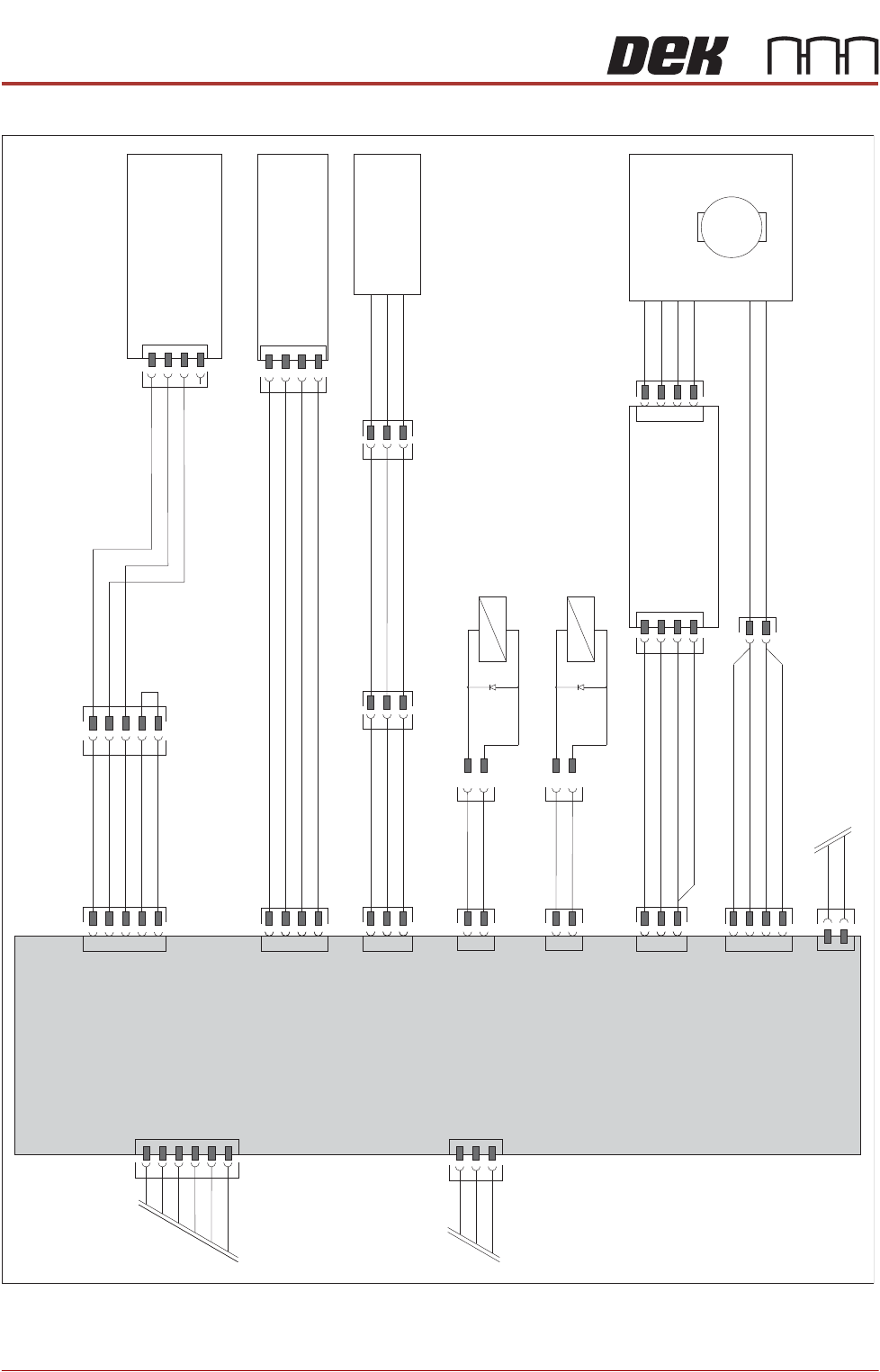

Figure 12-5 Sheet 1
Motherboard
USB
Machine
Controller M36
NextMove
ES
Machine PC
Power Supply
Enclosure M37
9SK96
M37SK21
Conditioning Grid Motor
ProFlow Node 13
M
ProFlow Home
Solid State
Microswitch
Z-Axis
Stepper Motor
9M4
M36SK21
9SK12
3SK35
M36SK28
9SK17
CH 2 B-
CH 2 B+
CH 2A-
CH 2A+
9SK08
+12V
DIG IN 4
0V
M36SK12
N13SK01
+42/48V
0V Return
24V US (Motor Logic)
0V
N13SK02
9PL98
CAN_H
CAN_L
CAN_GND
9SK99
CAN In From
Rising Table Node 6
N3SK2
To Print Carriage Input/output
Node 3 (Continued on Page 2)
9PL95
9SK08
9SK17
PROFLOW ATX
ELECTRICAL SCHEMATIC
12.12 Technical Reference Manual Chapter Issue 6, Jan 16

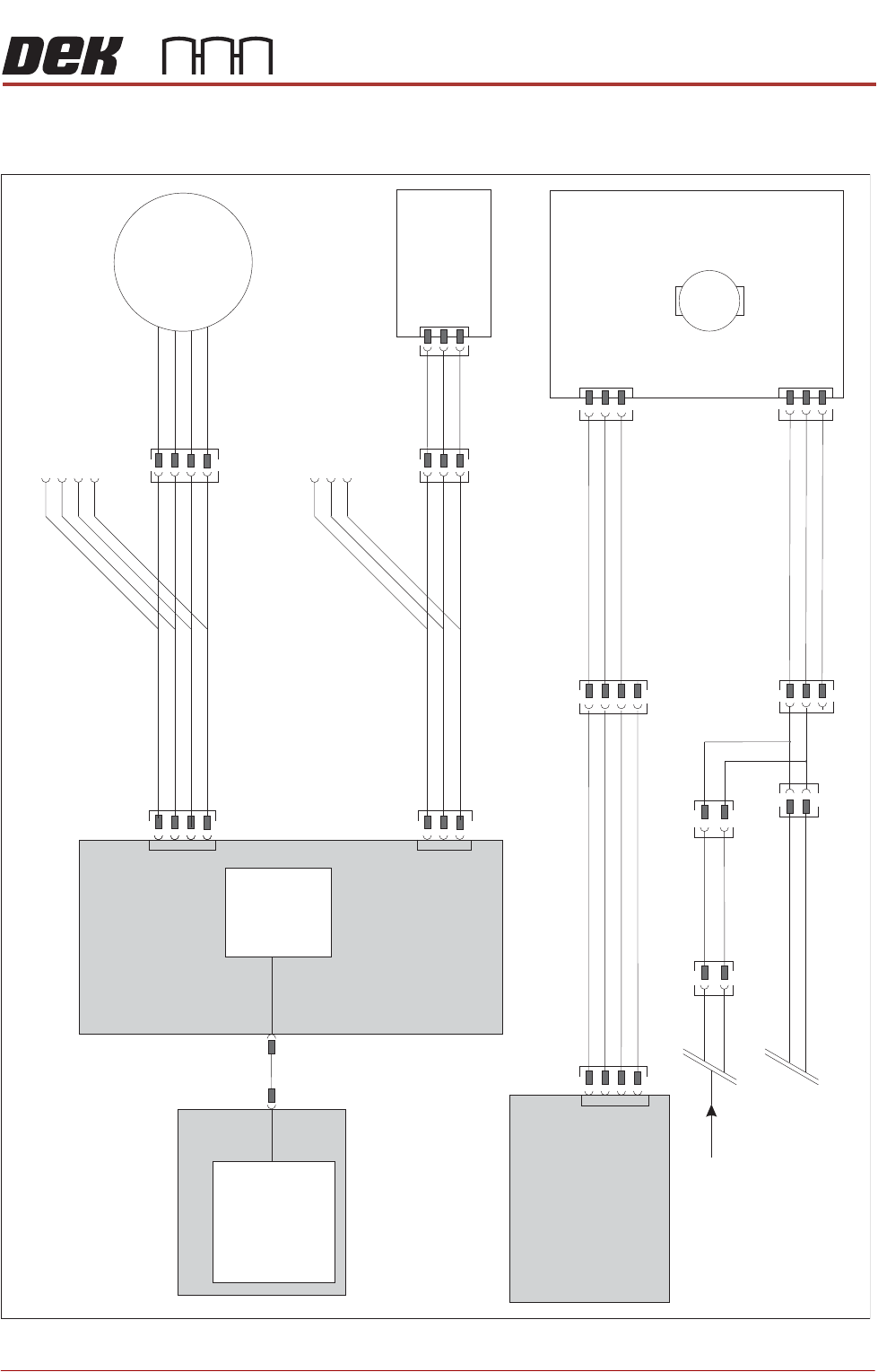

Figure 12-6 Sheet 2
Print Carriage
Input/Output Node 3
N3SK2A
CAN In From Conditioning
Grid Drive Motor
ProFlow Node 13 (Continued
from Page 1)
CAN Bus OUT
To Node 7
N3SK1
Archimedes
Screw Motor
Node Power
+24V US
0V Return
+24V SW
0V Return
+12V
0V Return
CAN_H
CAN_L
CAN_GND
N3SK3
CAN_H
CAN_L
12V
0V
DIG In 10
0V
M
N3SK01
PWR
GND
9SK100
N3SK12
DIG Out 1
DIG Out 1
0V
Divider
0V
Ch B
+12V
Ch A
9PL108
9SK104
+
-
DIG Out 2
0V
N3SK6
9SK30
Print Medium Refill
9SOL30
DIG Out 3
0V
N3SK8
9SK25
Print Medium
Pressure On / O
ff
9SOL25
12V
0V
DIG In 1
1
N3SK14
Chamber Empty
9SK106
9SK77
Solid State Switch
0V
N3SK13
Analogue Out
24V
Print Medium
Pressure Regulator
M18SK02
+
-
+12V
0V
0V
Analogue In 3
Dig In 0
Print Medium Low
Optical Sensor
9SK47
9SK61
ProFlow
Fitted Link
N3SK17
Analogue In
PROFLOW ATX
PNEUMATIC SCHEMATIC
Chapter Issue 6, Jan 16 Technical Reference Manual 12.13

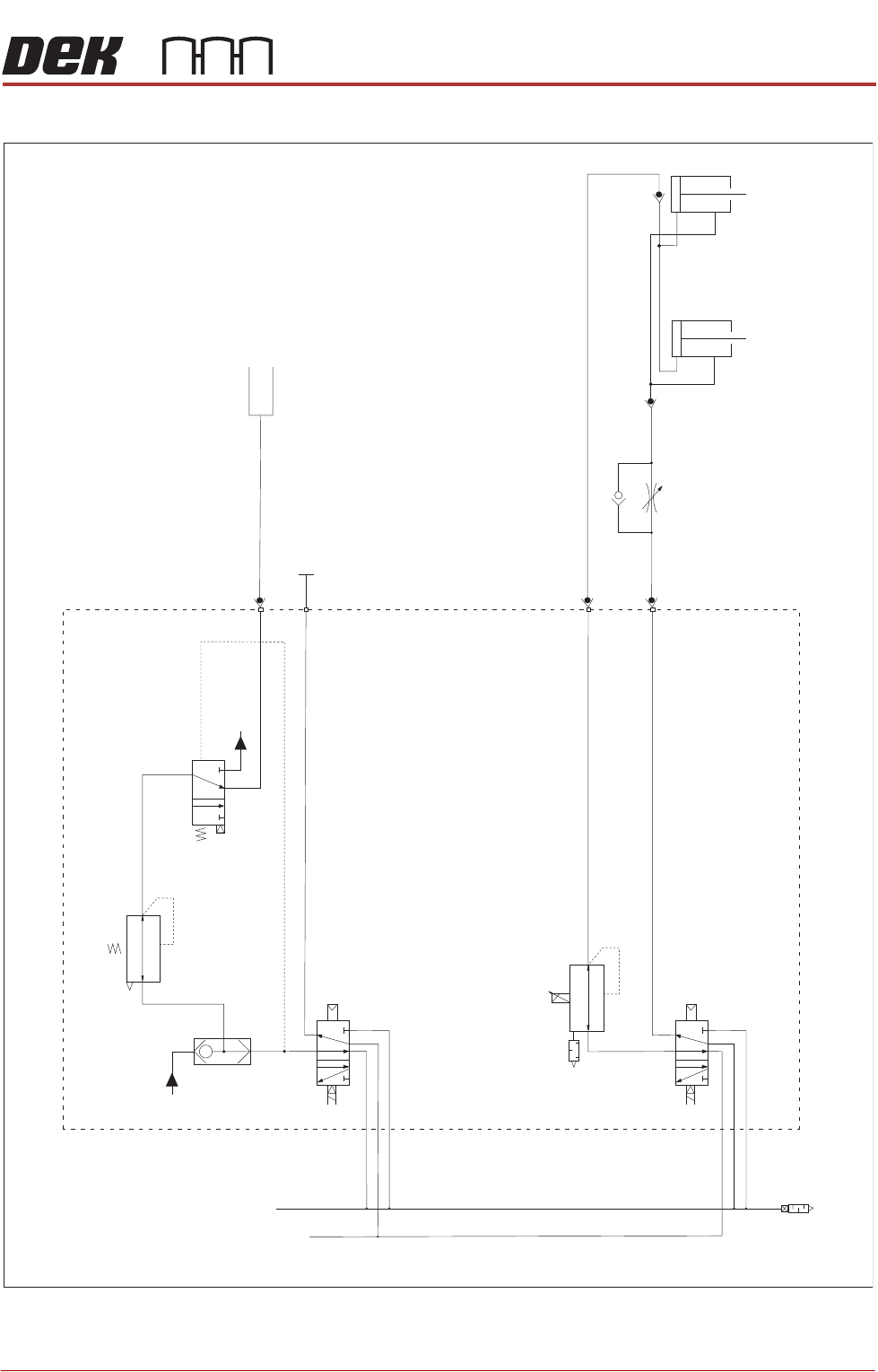

PNEUMATIC SCHEMATIC
Print Carriage
9SOL30
9SOL26-29
Air In
9SOL25
5/2
5/2
Cartridge
A
A
B
B
ProFlow Paste
Pressure Regulator
Paste Pressure ON/OFF
Paste Refill
Paste
Dispense
To Paste
Dispenser
Flow Controller
Transfer Head Pistons
