PROFLOW ATX REPLACEMENT PROCEDURES Chapter Issue 6, Jan 16 Technical Reference Manual 12.41 9. Fit the new wiper blades (under the reta iners) ensurin g each blade is seated firmly against the transfer head along it s wh…
PROFLOW ATX
REPLACEMENT PROCEDURES
12.40 Technical Reference Manual Chapter Issue 6, Jan 16
Replacing the Transfer Head Wiper Blades
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
To replace the transfer head wiper blades (ASM recommends that you replace
both at the same time), carry out the following:
1. Select Open Cover Commands.
2. Select Carriage to Front.
3. Open the machine front cover.
4. Remove the print medium cartridge and filler tube assembly.
5. Remove the transfer head from the ProFlow ATx mount.
6. Place the transfer head upside down on a flat surface.
7. Using a flat bladed screwdriver, loosen the wiper blade retainer screws.
8. Remove the wiper blades (in 2 positions).

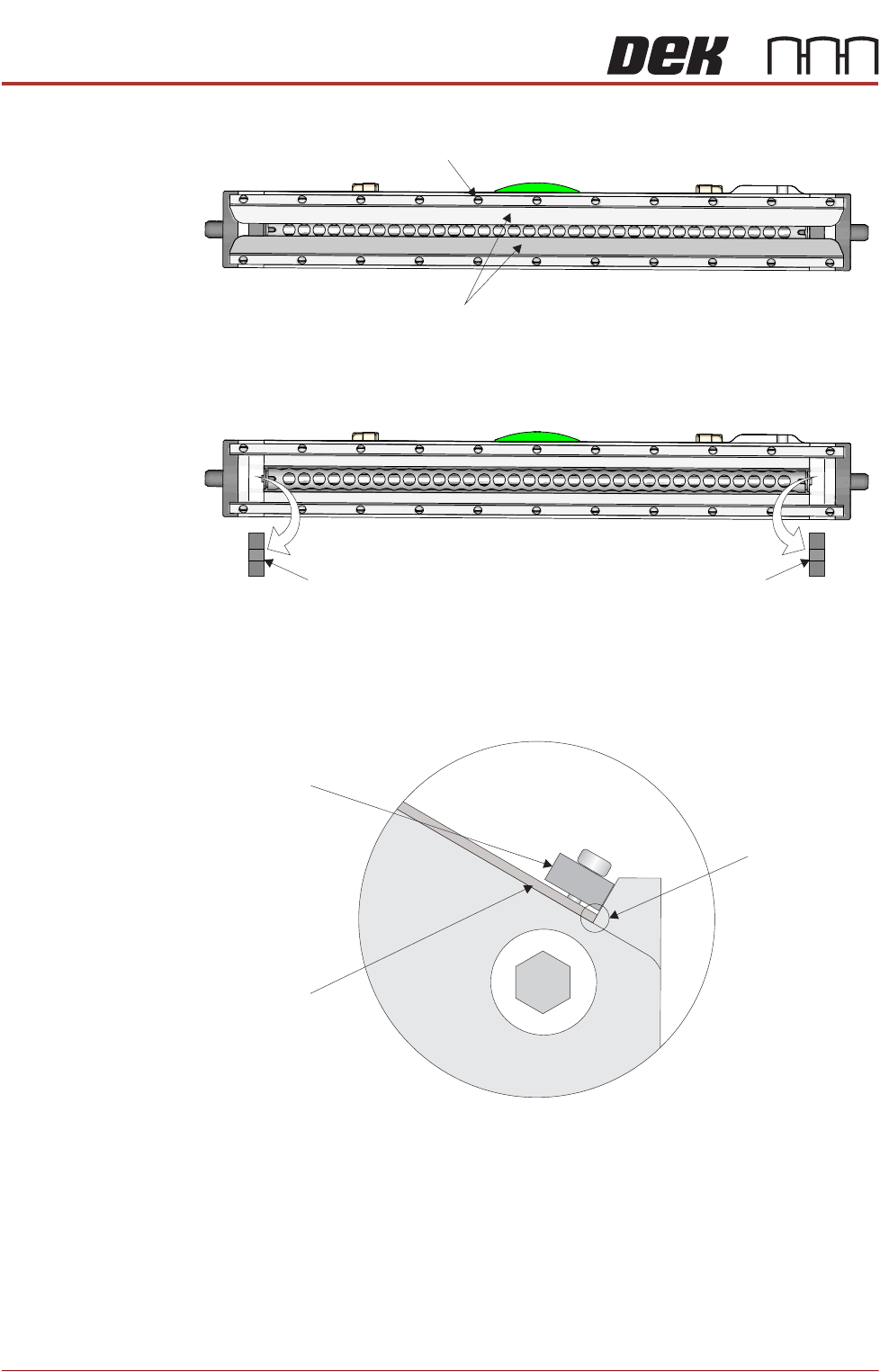

Retainer Screw
Wiper Blades
Transfer Head Underside View
PROFLOW ATX
REPLACEMENT PROCEDURES
Chapter Issue 6, Jan 16 Technical Reference Manual 12.41
9. Fit the new wiper blades (under the retainers) ensuring each blade is seated
firmly against the transfer head along its whole length.
10. Tighten the wiper blade retainer screws.
Replacing the Transfer Head Skis
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
To replace the transfer head skis (ASM recommends that you replace both at
the same time), carry out the following:
1. Select Open Cover Commands.
2. Select Carriage to Front.
3. Open the machine cover.
4. Remove the print medium cartridge and filler tube assembly.
5. Remove the transfer head from the ProFlow ATx mount.
6. Place the transfer head upside down on a flat surface.
View on End of Transfer Head
Wiper Blade
Contact Point
Wiper Blade
Wiper Blade
Retainer
PROFLOW ATX
REPLACEMENT PROCEDURES
12.42 Technical Reference Manual Chapter Issue 6, Jan 16
7. Using a flat bladed screwdriver, loosen the wiper blade retainer screws.
8. Remove the wiper blades (2 positions).
9. Remove the skis (2 positions).
10. Fit the new skis, ensuring that the tabs face inwards and the holes face
outwards.
11. Fit the wiper blades (under the retainers) ensuring each blade is seated
firmly against the transfer head along its whole length.
12. Tighten the wiper blade retainer screws.
Retainer Screw
Wiper Blades
Transfer Head Underside View
Transfer Head Underside View
SkiSki
View on End of Transfer Head
Wiper Blade
Contact Point
Wiper Blade
Wiper Blade
Retainer
