PROFLOW ATX
ADJUSTMENTS & SETTINGS
12.18 Technical Reference Manual Chapter Issue 6, Jan 16
Print Medium
Demand Sensor
The print medium demand sensor detects when the level of the print medium in
the transfer head is low. For an accurate reading, the bottom of the sensor must
be positioned no more than 5mm (+/- 1mm) above the transfer head’s top plate.
To adjust the height of the print medium demand sensor, carry out the following:
1. Loosen the screw on the print medium demand sensor, using a jeweller’s
flat bladed screwdriver.
2. Adjust the bottom edge of the demand sensor so that it sits 5mm (+/- 1mm)
above the level of the transfer head’s top plate.
3. Tighten the screw on the print medium demand sensor.
5mm
+/- 1mm

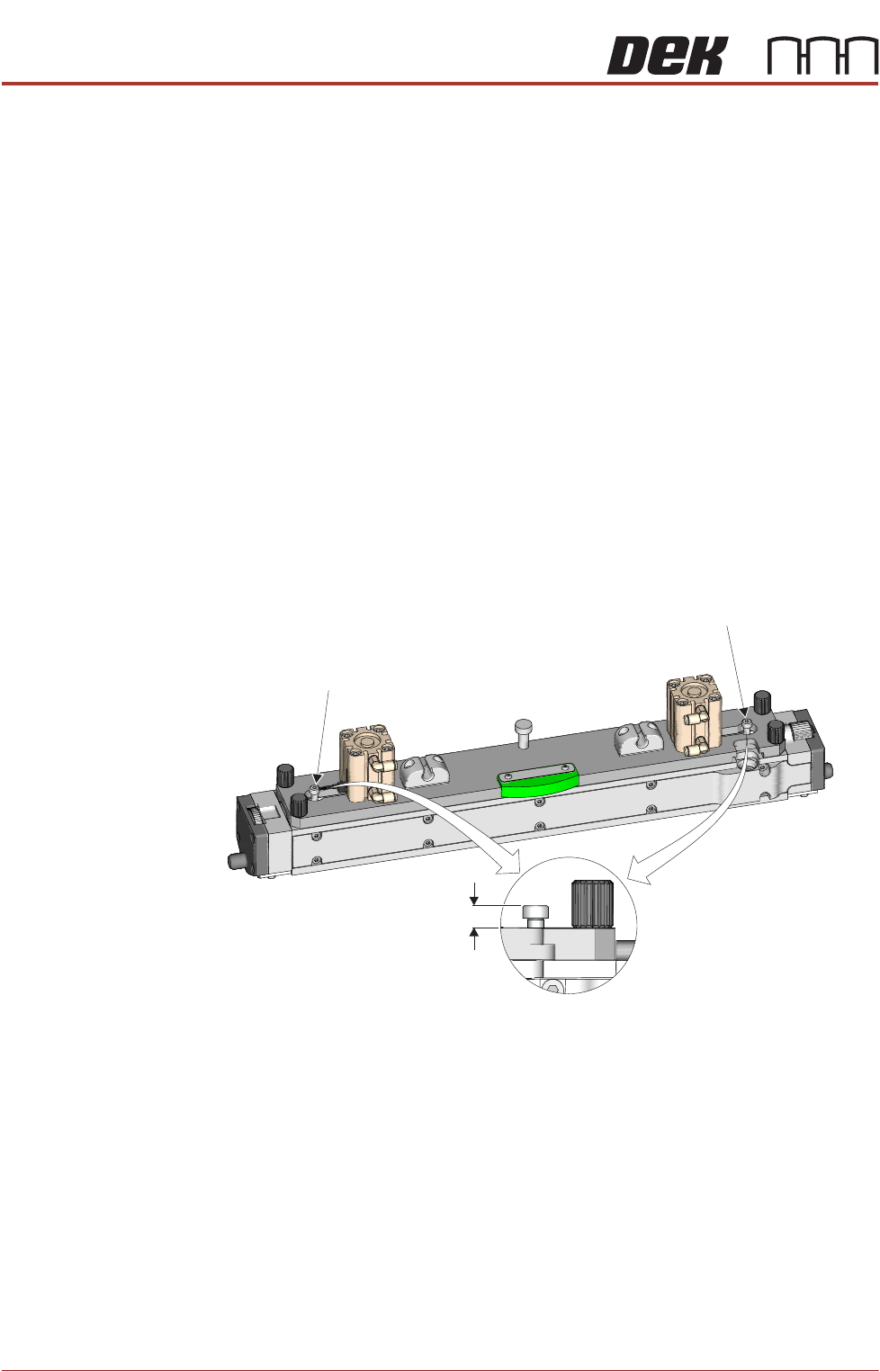

View on Left Hand End of Transfer Head
Print Medium
Demand Sensor
Adjustment
Screw
Top Plate
PROFLOW ATX
ADJUSTMENTS & SETTINGS
Chapter Issue 6, Jan 16 Technical Reference Manual 12.19
Setup Guidelines ASM recommends that for general production the ProFlow ATx is setup in
accordance with the following guidelines and parameter settings.
• The Print Medium Demand sensor is set up as detailed in the Adjustment
and Settings section of this chapter
• The air pressure at the Paste Dispense Regulator is set between 1.3 bar
and 1.7 bar (air pressure should never exceed 2 bar).
Parameter Setting Additional Information
Paste Knead Period 0 minutes This parameter is only needed if a
downtime of 15 minutes or more
between prints is expected
Knead Before Print 0 minutes This parameter is only needed if a
downtime of 15 minutes or more
between prints is expected
Knead Off Image Enabled
Recharge Volume 20 (300mm head)
44 (400mm head)
Conditioning Duration 7 seconds
Grid Speed Coefficient 30%
Paste Pressure Delay 1 second minimum Up to 2 seconds if process allows
Paste Decay Interval 1 minimum

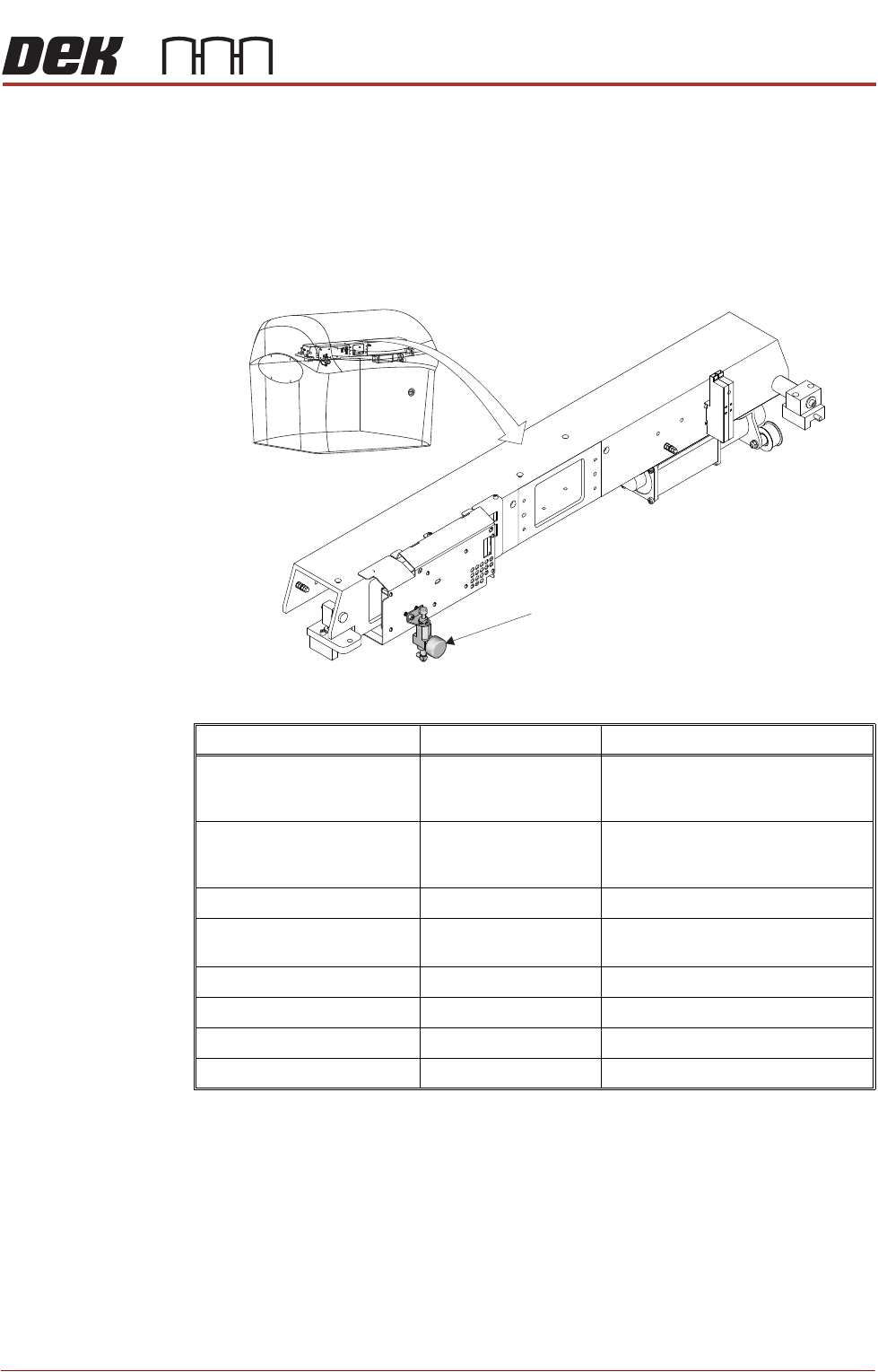

Paste Dispense Regulator
Paste Dispense Regulator - Location
PROFLOW ATX
ADJUSTMENTS & SETTINGS
12.20 Technical Reference Manual Chapter Issue 6, Jan 16
Initial Fill To fill the ProFlow ATx unit for the first time or from empty following cleaning or
maintenance, proceed as follows;
1. Check that the Conditioning Duration is set at 7 seconds.
2. Set the Grid Speed Coefficient to 100%.
3. Set the Recharge Volume to 50.
4. Select Recharge ProFlow.
5. Select Recharge ProFlow.
6. Select Condition ProFlow.
7. Select Prime ProFlow.
8. Select Recharge ProFlow.
9. Select Recharge ProFlow.
10. Select Condition ProFlow.
11. Select Prime ProFlow.
NOTE
Ensure that both Print Medium Level Indicator Pistons are in the fully down
position.
12. Change the Recharge Volume to 20.
13. Select Recharge ProFlow (this is the fifth recharge).
14. Select Condition ProFlow.
15. Select Prime ProFlow.
16. Repeat Recharge ProFlow, Condition ProFlow and Prime ProFlow until
the head is full.
NOTE
The head is full when the Print Medium Demand Sensor’s red indicator light
is not lit. The fill procedure should be completed with a total of 7 or 8
Print Medium Level Indicator Pin
Print Medium Level Indicator Pin
Fully Down Position
Print Medium Level Indicator Pins - Down Position
7mm
