PROFLOW ATX REPLACEMENT PROCEDURES 12.28 Technical Reference Manual Chapter Issue 6, Jan 16 7. Connect the following to the ProFlow A Tx connections on the left hand side of the print carriage: • Conditioning Grid Motor …
PROFLOW ATX
REPLACEMENT PROCEDURES
Chapter Issue 6, Jan 16 Technical Reference Manual 12.27
3. Locate the two locator dowel holes on the front face of the print carriage.
4. Fit the ProFlow ATx mount mechanism to the print carriage, ensuring that
both locating dowels fit into the locator dowel holes.
NOTE
Ensure the cables and air feed lines are free from moving parts that may
prevent the ProFlow ATx mount from being secured to the print carriage.
5. Secure the ProFlow ATx mount to the print carriage; tighten the four captive
screws on the mount plate, using the 4mm T-bar Allen key supplied
(205973).
6. Using a crosshead screwdriver, attach the drag chain carrying the left hand
side cable and air feed connectors to the left hand side of the print carriage.

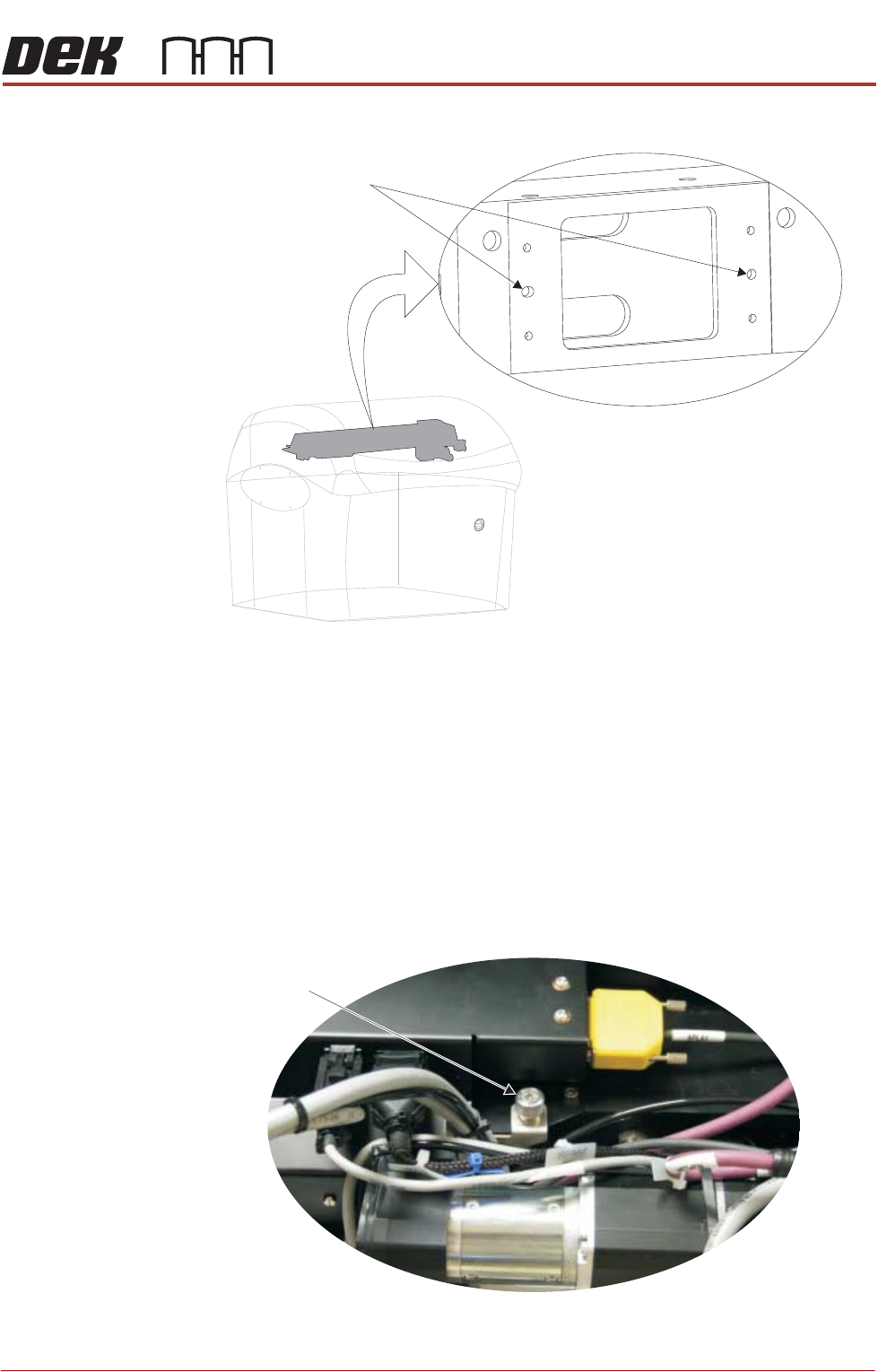

Locator Dowel Holes
View on Front Left Corner
View on Print Carriage Top Face
Left Side Drag
Chain Screw
PROFLOW ATX
REPLACEMENT PROCEDURES
12.28 Technical Reference Manual Chapter Issue 6, Jan 16

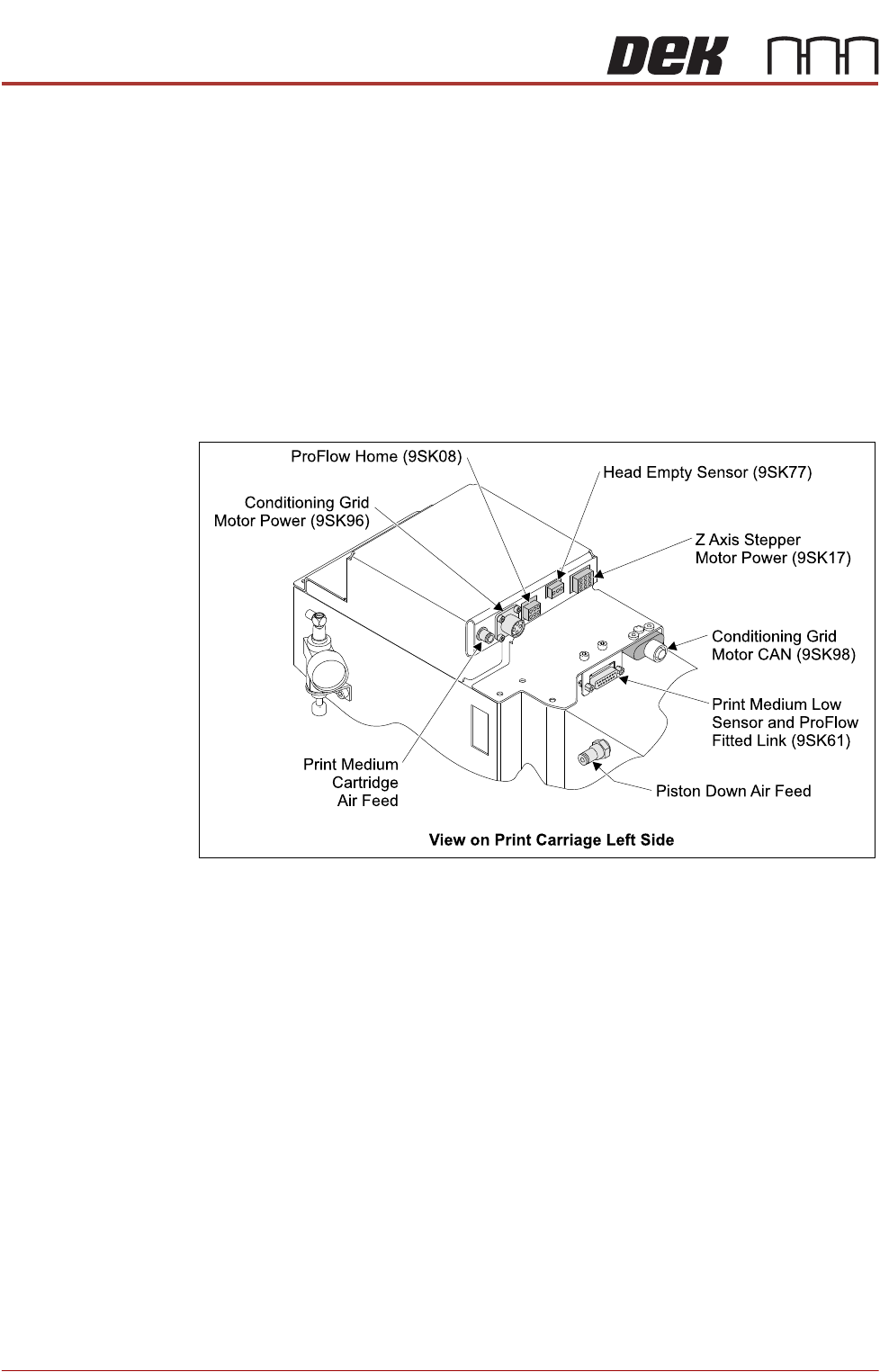

7. Connect the following to the ProFlow ATx connections on the left hand side
of the print carriage:
• Conditioning Grid Motor Power (9PL96)
• Head Empty Sensor (9PL77)
• Print Medium Cartridge Air Feed
• ProFlow Home (9PL08)
• Z-axis Stepper Motor Power (9PL17)
• Print Medium Low Sensor and ProFlow Fitted Link (9PL61)
• Conditioning Grid Motor CAN (9PL98)
• Piston Down Air Feed
PROFLOW ATX
REPLACEMENT PROCEDURES
Chapter Issue 6, Jan 16 Technical Reference Manual 12.29
8. Using a crosshead screwdriver, connect the drag chain carrying the right
hand side connectors to the right hand side of the print carriage.
9. Connect the following to the ProFlow ATx connectors on the right hand side
of the print carriage
• Archimedes Screw Power (9PL100)
• Paste Load Feedback (9PL108)
• Piston Up Air Feed

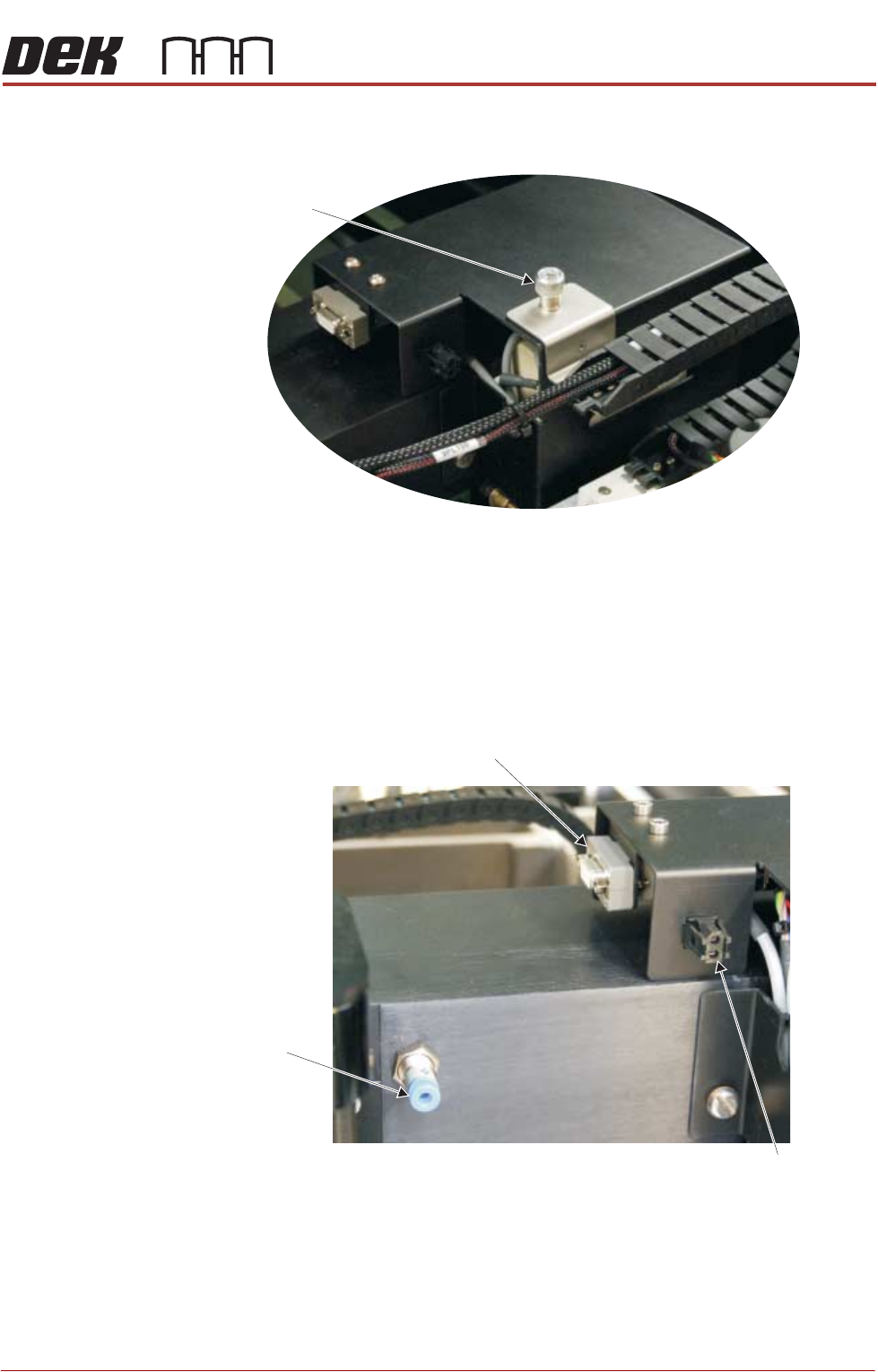

View on Print Carriage Top Face
Right Side Drag
Chain Screw
View on Print Carriage Right Side
Archimedes Screw
Power (9SK100)
Paste Load
Feedback (9SK108)
Piston Up
Air Feed
