PROFLOW ATX REPLACEMENT PROCEDURES 12.34 Technical Reference Manual Chapter Issue 6, Jan 16 Levelling the T ransfer Head For an even application of print medium, during both the fo rward and rearward print-strokes, obtai…
PROFLOW ATX
REPLACEMENT PROCEDURES
Chapter Issue 6, Jan 16 Technical Reference Manual 12.33
14. Connect the following transfer head cable and air feed connectors to the
connectors on the left hand side of the ProFlow ATx mount:
• Print Medium Demand Sensor (9PL106)
• Pistons Down Air Feed
• Pistons Up Air Feed
15. Turn the two locking clips, on the base cover, to the unlock position (pointing
upwards).
16. Remove the sealing plug from the transfer head.
17. Remove the base cover from the transfer head.
Print Medium Demand
Sensor 9SK106
Pistons Down
Air Feed
Pistons Up
Air Feed
View on Left Side of the ProFlow Mount
PROFLOW ATX
REPLACEMENT PROCEDURES
12.34 Technical Reference Manual Chapter Issue 6, Jan 16
Levelling the
Transfer Head

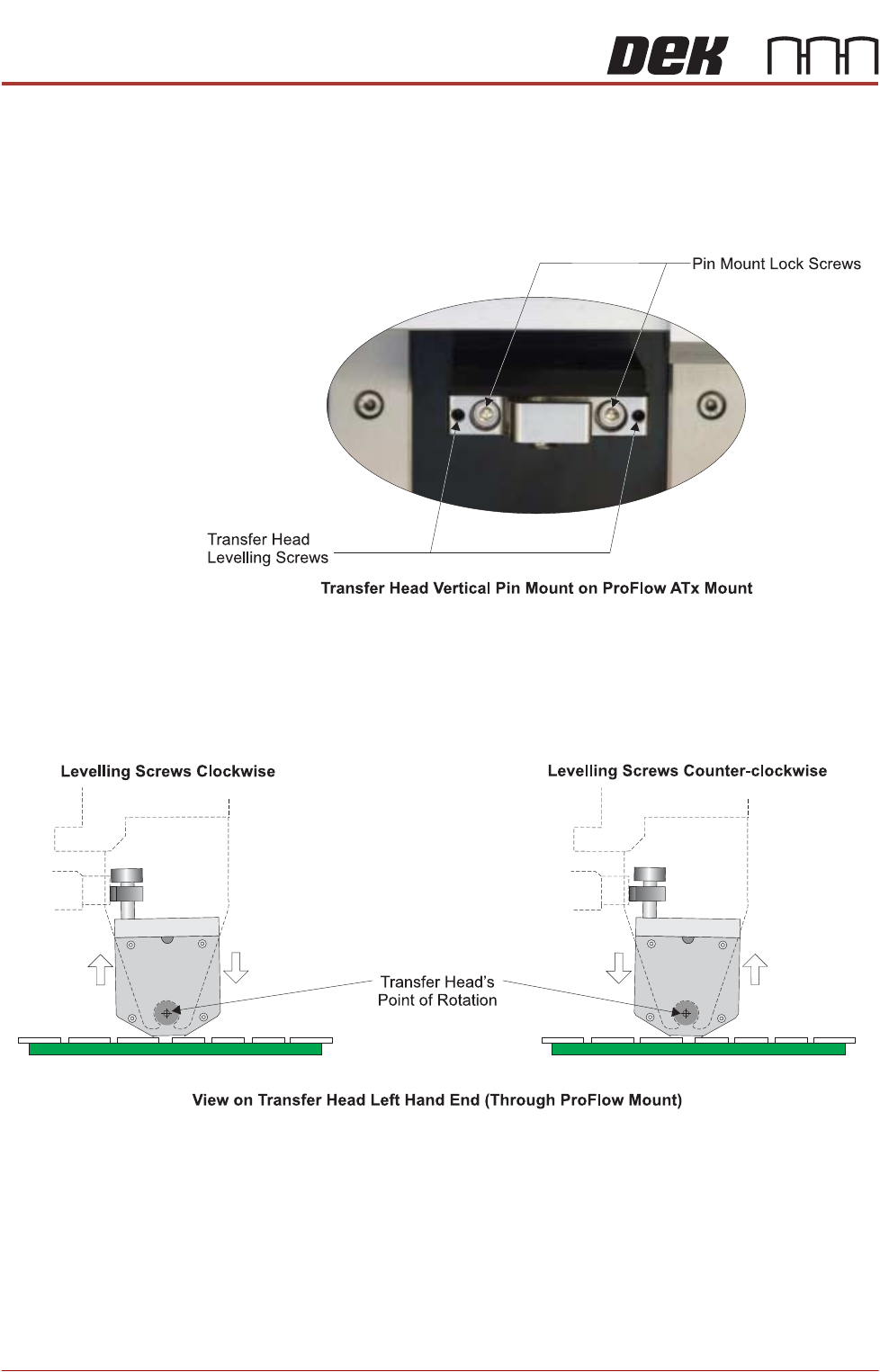

For an even application of print medium, during both the forward and rearward
print-strokes, obtain equal pressure on the tips of the wiper blades by levelling
the transfer head against the stencil when under system pressure. To adjust
the level of the transfer head, carry out the following on the ProFlow ATx mount:
1. Loosen the two transfer head pin mount lock screws, using a 3mm Allen key.
2. Evenly adjust the two transfer head levelling screws, using a 2mm Allen key.
Turning the levelling screws clockwise lowers the front of the transfer head.
Turning the levelling screws counter-clockwise raises the front of the trans-
fer head.
3. Tighten the two transfer head pin mount lock screws, using a 3mm Allen key.
4. Perform a print operation.
5. Inspect the print medium application; if further levelling is required, repeat
the procedure.
PROFLOW ATX
REPLACEMENT PROCEDURES
Chapter Issue 6, Jan 16 Technical Reference Manual 12.35

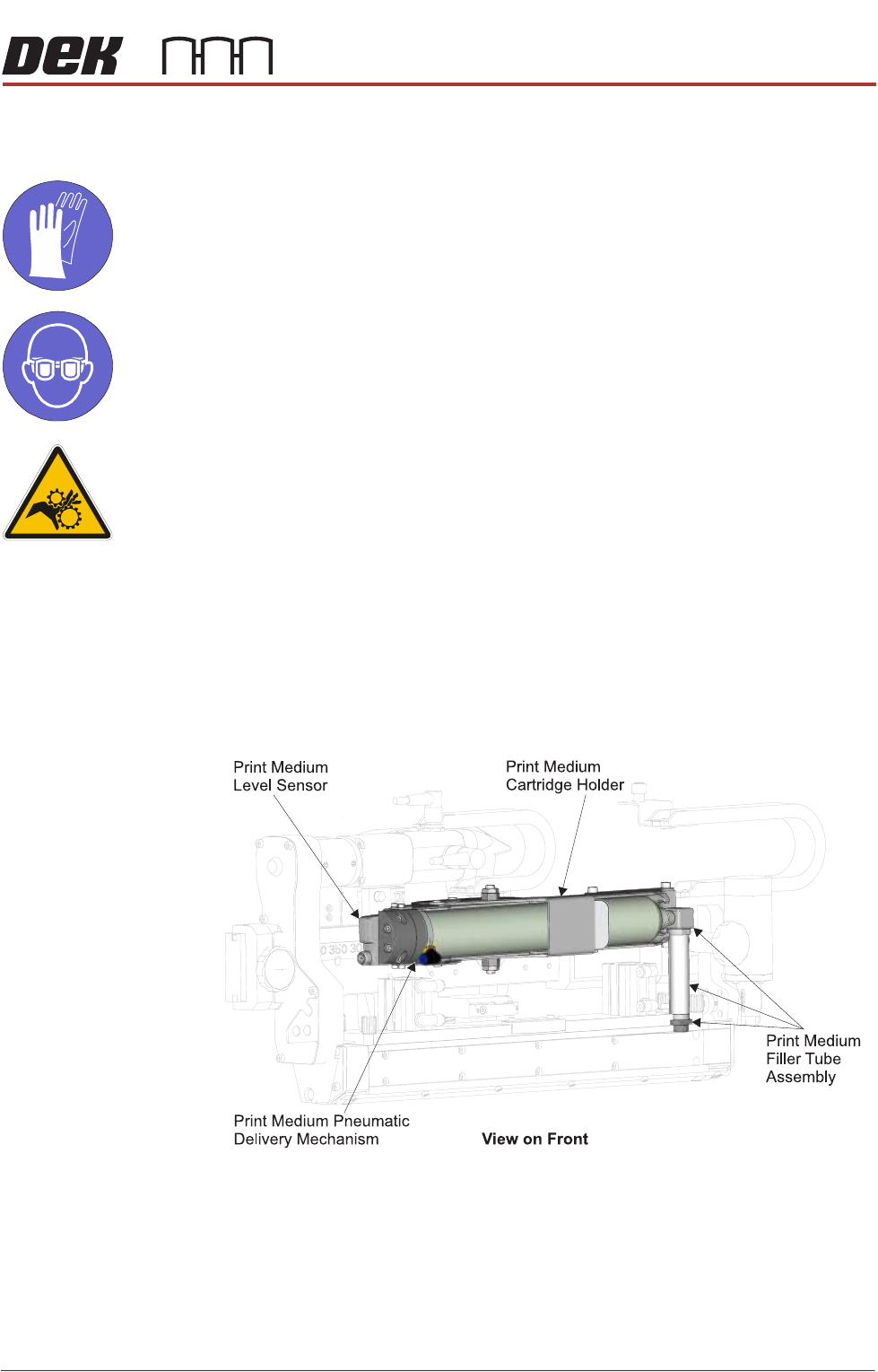

Fitting the Print
Medium Cartridge
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
WARNING
MOVING PARTS. MOVING PARTS ARE PRESENT IN THE VICINITY OF THIS
WARNING LABEL, THESE PARTS HAVE THE POTENTIAL TO CAUSE INJURY.
NOTE
The following procedure assumes that an empty cartridge is fitted; if this is not
the case, open the lever arm (step 4) and begin the procedure at step 9 - “Fit
the new print medium cartridge to the filler tube assembly”.
To fit a new print medium cartridge to the ProFlow ATx system, carry out the
following:
1. Select Open Cover Commands.
2. Select Carriage to Front.
3. Open the machine cover.
