11. Maintenance Spots

11.1 Whole View

Reference

Refer to "11.3 Inspection, Cleaning, and Lubrication Spots" and the

subsequent items for the detailed information on the spots of each

section to be maintained and how to maintain them.

CAUTION

• After the maintenance work, be sure to attach the cover back

in place.

Fig. 10 Placement Head

Fig. 11 Nozzle Stocker Fig. 12 Vacuum Nozzle

380712-001

11.2 Understanding of Maintenance Items on Each Section

Clariedinthissessionareeachindividualspotsofthemachinetobe

maintained.

Refer to "10. Maintenance Check List" for periodic maintenance.

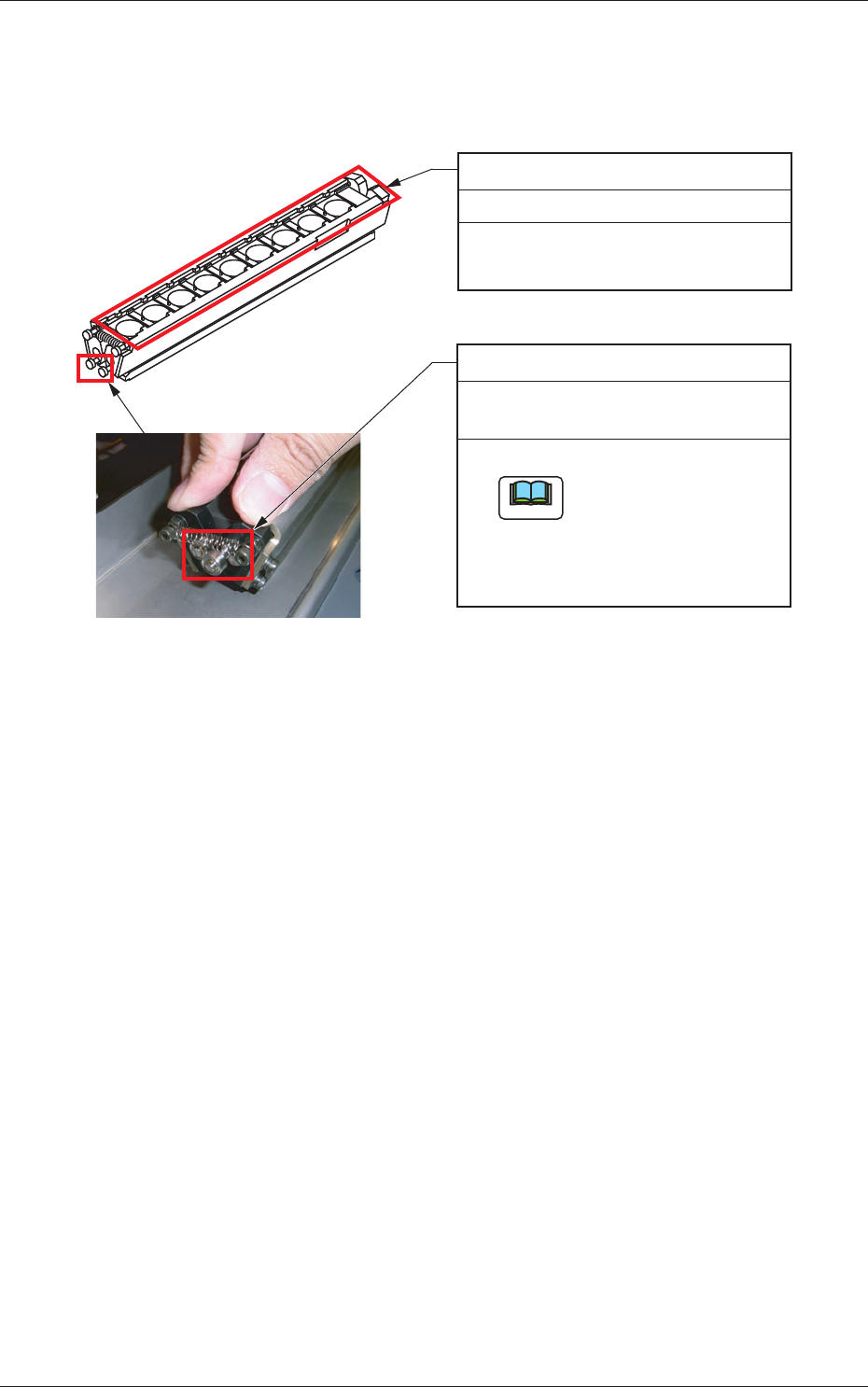

View of Inspection, Cleaning, and Lubrication Spots

(ExampleofIdentication)

Nozzle Storage Section

Every Month Cleaning

Wipe off dirt and dust with a rag.

[1] [2] [3]

Cam Follower

Every Month Cleaning and Lubrication

(DAPHNE EPONEX GREASE No. 1)

Note

(1) Wipe off old grease with an oiled rag.

Take ample care not to leave

the waste threads after the

old grease is wiped off.

(2) Apply new grease by hand or with

a brush.

Fig. 13

[1]:

Maintenance Spot

[2]:

Cycle and Contents of Maintenance

[3]:

Details of Maintenance

390712-001

11.3 Inspection, Cleaning, and Lubrication Spots

11.3.1 Nozzle Stocker
