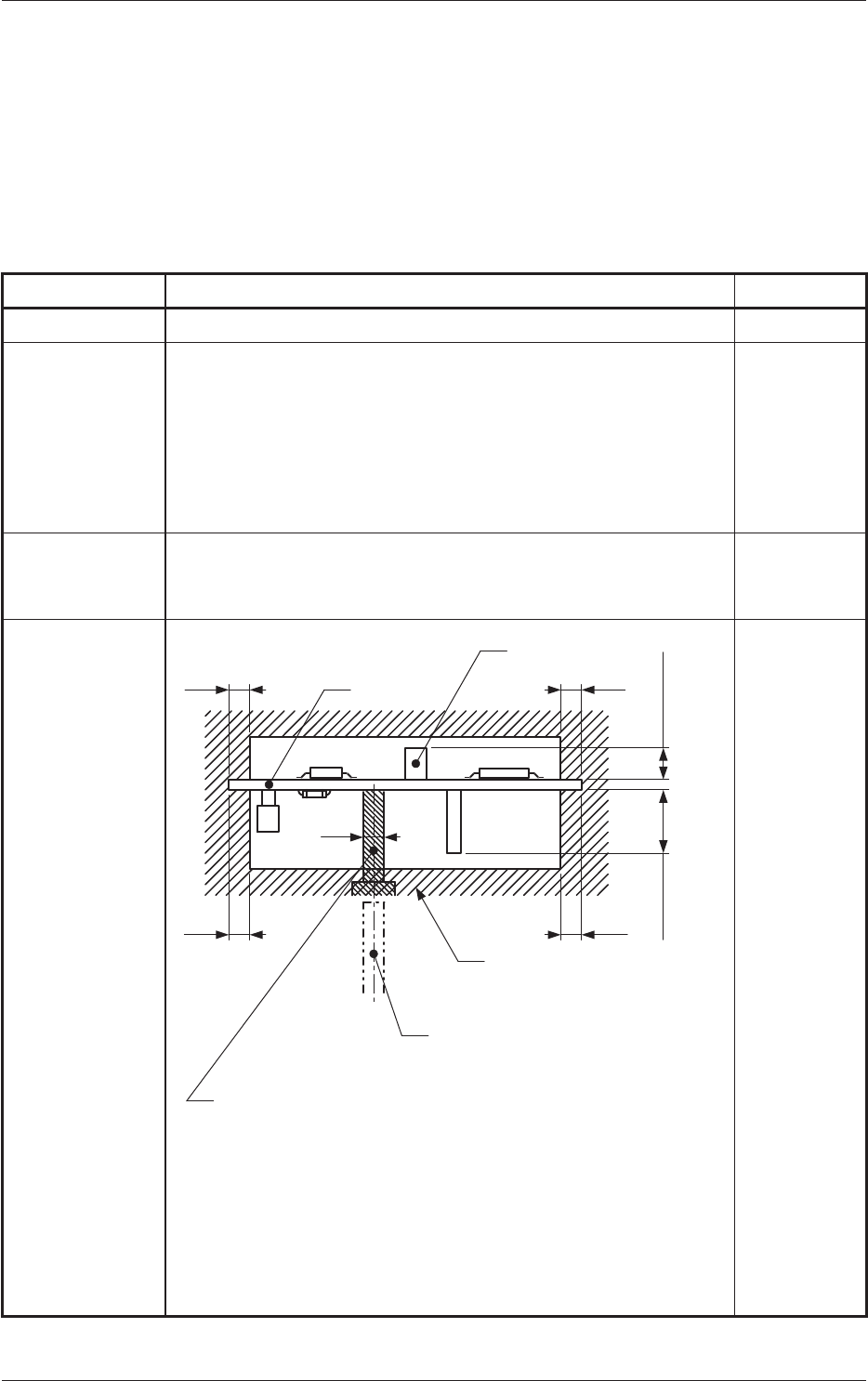

5
3.0
PCB
PCB Support Pin
(Shows the time of PCB transfer.)
Previously-placed
Components Unallowed
Range
Component
3.0
3.0 3.0
F4
Max. 25.4
PCB Support Pin (Several Places)
Notes: (a) The pin can be shifted at "20 mm" pitch.
(The shifting is partly possible at "10 mm" pitch.)
(b) Set the support pins such that they do not touch
the already placed components.
(c) The figure shows that the PCB is being supported.
(Front Side of Machine)
Max. 30
1. Scope
0712-001
Unit : mm
1. Scope
This unit manages the multi-functional components in the Direct Drive
Modular Mounter GXH-3 series.
There are three nozzles, placed in series, for each head.
2. Specications
Item Description Special Item
1. Model Name
HM-G300
2. Construction
•Multi-Functional Head : HM-G300
• Multi-Functional Nozzle Stocker : MS-G-300L (For the Blocks 1 and 4)
: MS-G-300R (For the Blocks 2 and 3)
• For attaching to the main body : G-S050-09
(GXH-3 For the Blocks 1 and 4)
: G-S050-10
(GXH-3 For the Blocks 2 and 3)
3. Throughput Chip-Type Components : 24,000 CPH/4 Head
QFP : 20,000 CPH/4 Head
Note
: Excluding the PCB transition time under optimum conditions.
4. Conditions of
PCB before
Placement
(Regulation
of Component
Height)
Note :
The dimensions are those for design reference.
Leave some room for the actual setting.
