43 0712-001 12. Replacement Procedure of V acuum Filter 12. Replacement Procedure of V acuum Filter (1) Engagethevacuumlterreplacementjigwiththehookofthecap. Placement Head V acuum Filter Replacement Jig Cap…

420712-001

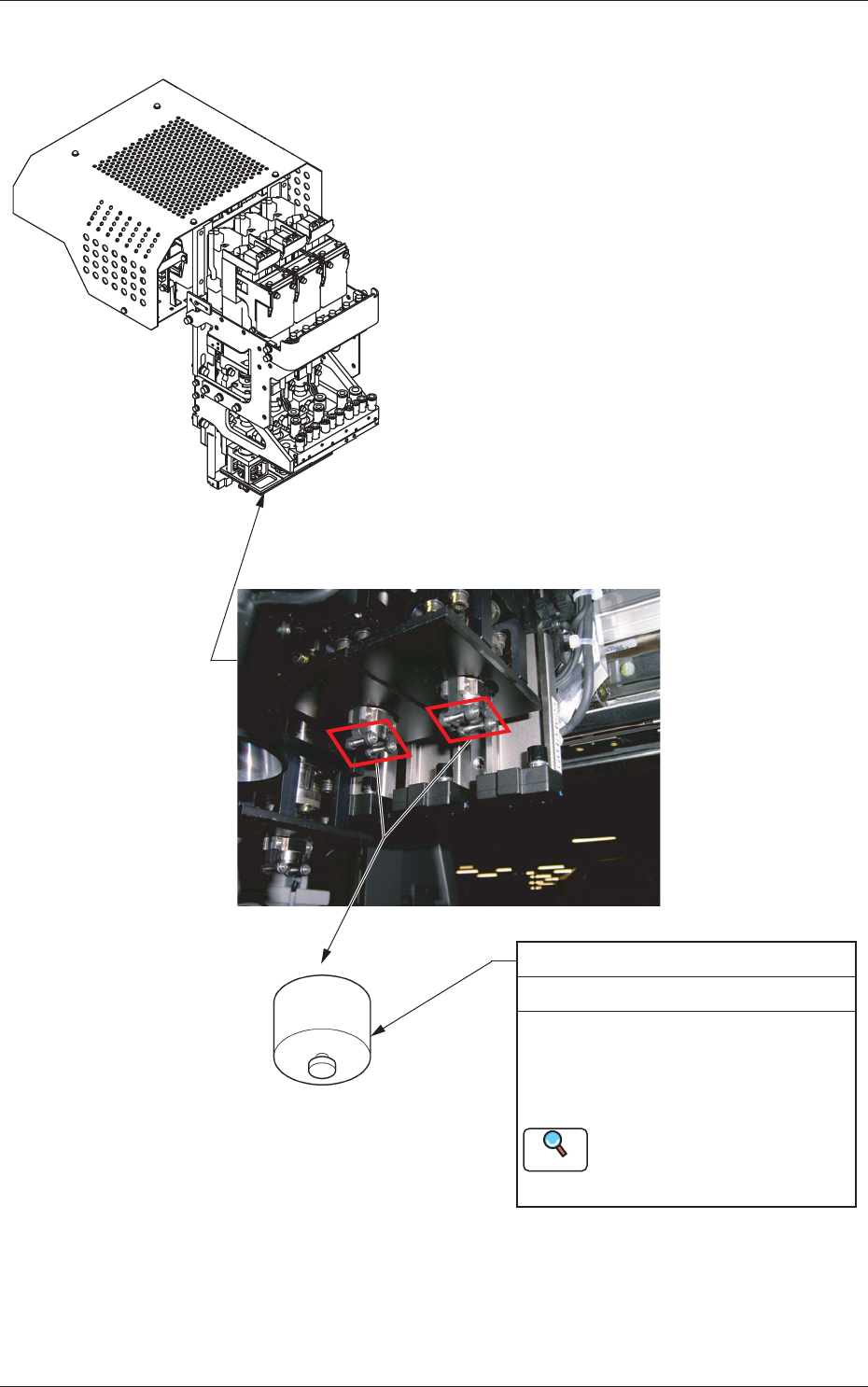

Vacuum Filter

Every Month Inspection

Remove the vacuum filter using the vacuum

filter replacing jig (attached) and check the

dirt. If the vacuum filter is extremely dirty,

replace it with new one.

Refer to "12. Replacement

Procedure of Vacuum Filter" for

details.

Reference

Fig. 17

11.3 Inspection, Cleaning, and Lubrication Spots

430712-001

12. Replacement Procedure of Vacuum Filter

(1) Engagethevacuumlterreplacementjigwiththehookofthecap.

Placement Head

Vacuum Filter Replacement Jig

Cap

Fig. 18

Fig. 19

(2) Bringthevacuumlterreplacementjigstraightdownandpulloutthe

cap from the placement head.

Note

 Thevacuumlterreplacementjigshouldnotcomeofffromthecap.

Placement Head

Vacuum Filter

Fig. 20

440712-001

(3) Detachthevacuumlterfromthecap.

Note

Do not throw away the cap.

Vacuum Filter

Cap

Fig. 21

(4) Attachanewvacuumltertothecap.

(5) Engagethevacuumlterreplacementjigwiththehookofthecapand

push the cap straight into the placement head in the reverse order of cap

detachment.

Note

Push the cap into the placement head as far as possible.

(6) Follow the reverse procedure of the jig engagement (engagement

procedureforvacuumlterreplacementjig)toslideitouthorizontally

from the hook of the cap.

12. Replacement Procedure of Vacuum Filter
