11.3 Inspection, Cleaning, and Lubrication Spots

11.3.3 Placement Head

Linear Guides (3 places)

Every 3 Months Lubrication

(DAPHNE EPONEX GREASE No. 1)

Apply new grease using a syringe.

Lubrication should be applied every 3

months after the initial month.

The nozzle to be used is the nozzle

No. 19 (brown).

Take care so that any grease

is not attached on the sensor

when apply grease.

Saucer (3 places)

Every 3 Months Cleaning

No.19

Ball Screw

Every 3 Months Lubrication

(DAPHNE EPONEX GREASE No. 1)

Apply new grease using a syringe.

Lubrication should be applied every 3 months

after the initial month.

The nozzle to be used is the nozzle

No. 19 (brown).

No.19

Sensor

Notice

Note

Wipe off old grease with an oiled rag.

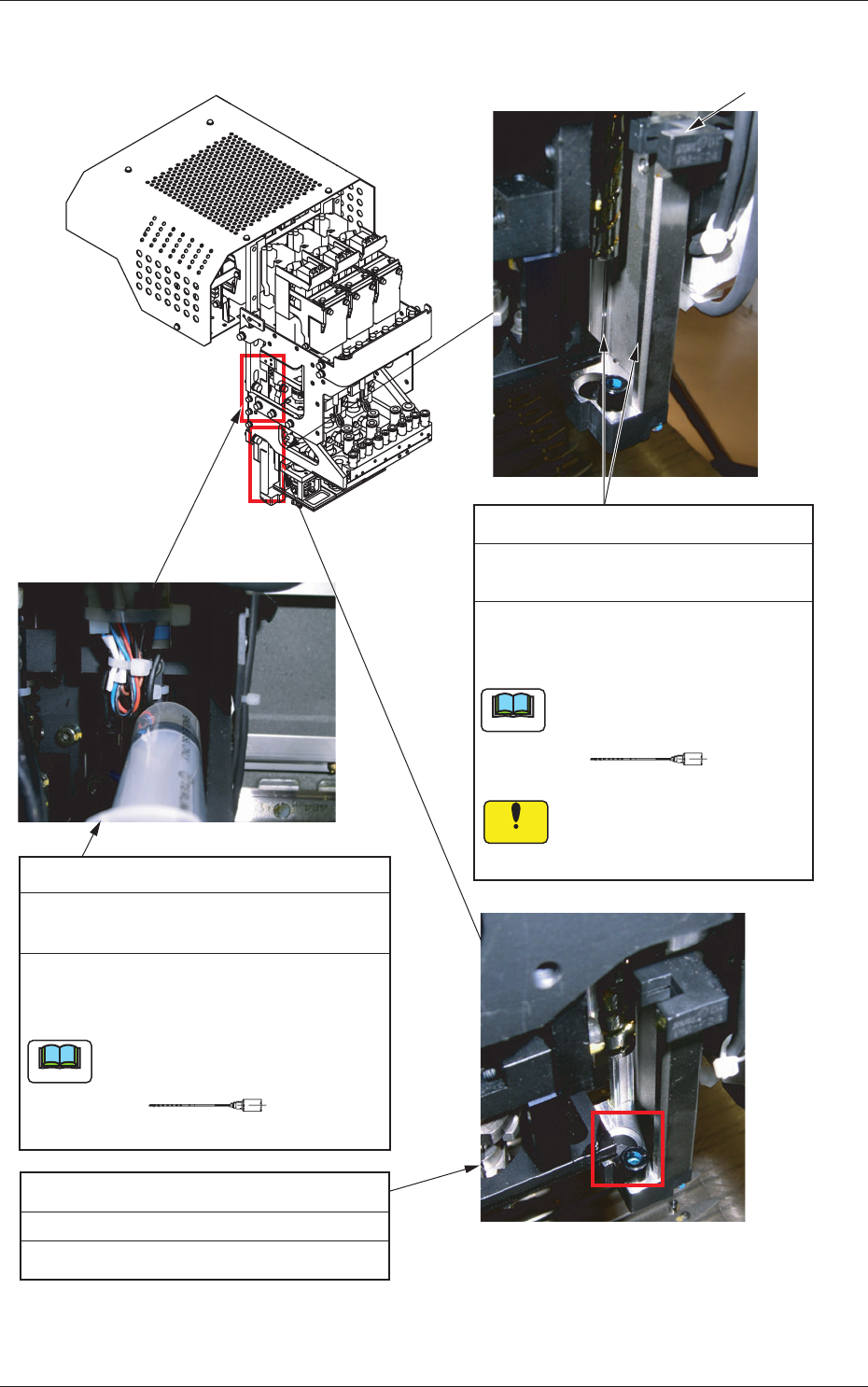

Fig. 16 Placement Head

420712-001

Vacuum Filter

Every Month Inspection

Remove the vacuum filter using the vacuum

filter replacing jig (attached) and check the

dirt. If the vacuum filter is extremely dirty,

replace it with new one.

Refer to "12. Replacement

Procedure of Vacuum Filter" for

details.

Reference

Fig. 17

11.3 Inspection, Cleaning, and Lubrication Spots

430712-001

12. Replacement Procedure of Vacuum Filter

(1) Engagethevacuumlterreplacementjigwiththehookofthecap.

Placement Head

Vacuum Filter Replacement Jig

Cap

Fig. 18

Fig. 19

(2) Bringthevacuumlterreplacementjigstraightdownandpulloutthe

cap from the placement head.

Note

 Thevacuumlterreplacementjigshouldnotcomeofffromthecap.

Placement Head

Vacuum Filter

Fig. 20
