Page HANWHA TECHWIN 88 SLM110S Fixed ANC Ass’y TRA Y FEEDER (OPTION) ENTRY RL(CONVEYOR 170mm) BOWL FEEDER (OPTION) 6 9 2 15 3 10 13 17 1 14 18 12 7 16 4 11 8 5 DUMP BOX OPTION(LENS) A 16
Page
HANWHA TECHWIN
87
SLM110S
Moving Frame Ass’y (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
88
SLM110S

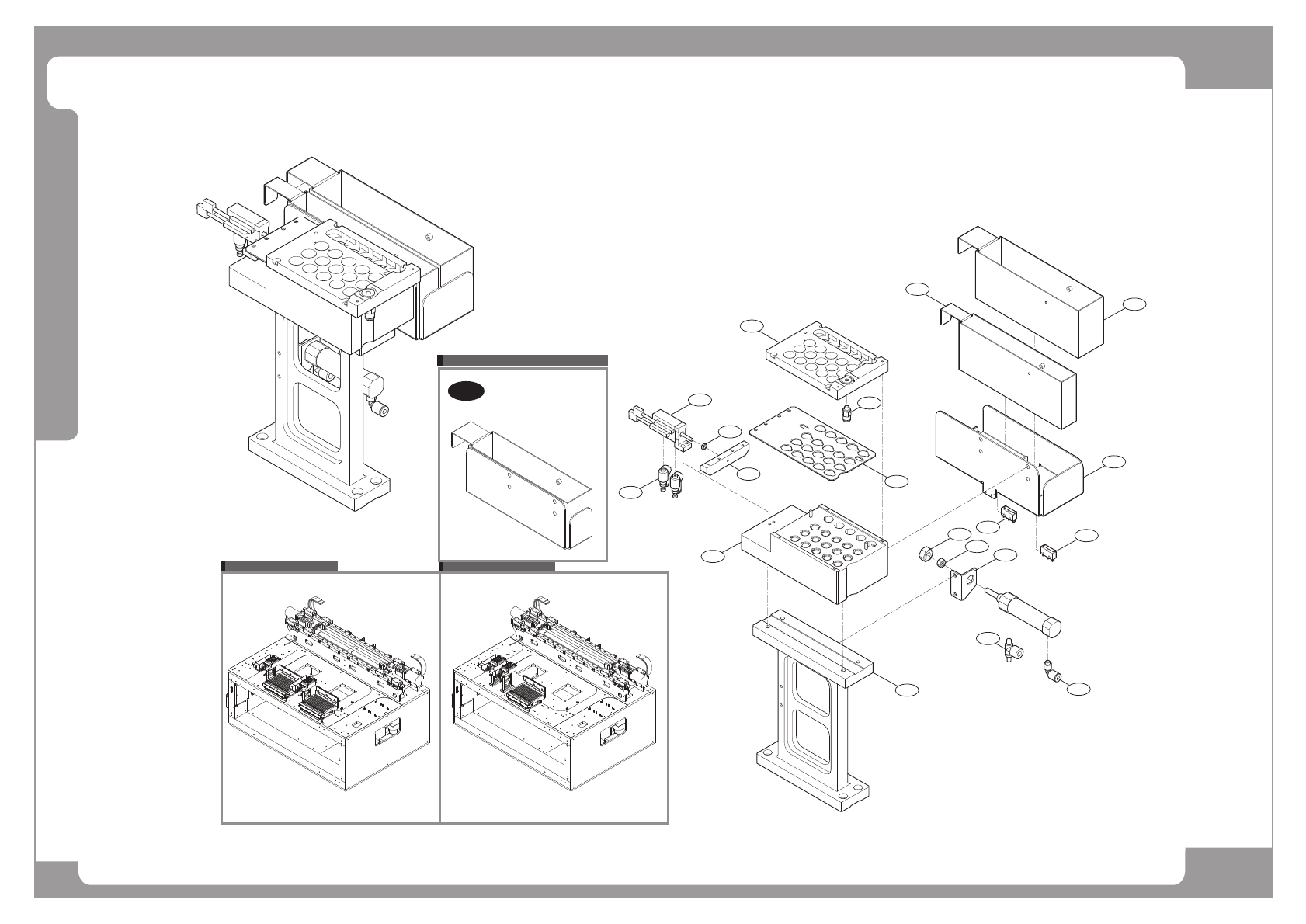

Fixed ANC Ass’y
TRAY FEEDER (OPTION)
ENTRY RL(CONVEYOR 170mm)
BOWL FEEDER (OPTION)
6
9
2
15
3
10
13
17
1
14
18
12
7
16
4
11
8
5
DUMP BOX OPTION(LENS)
A
16
Page
HANWHA TECHWIN
89
SLM110S
Fixed ANC Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-007370A ASSY,ANC-ASSY,DUMP BOX LENS 1 LENS OPTION
1 FC18-900900 HEX NUT 1
2 HP14-900088 SPEED CONTROLLER[AS1211F-M5-04] 1
3 FC09-003936A BRACKET-BOX_BKT_01 1 FC09-002204A
4 J70563718A NOZZLE_SHUTTER J70563718A 1
5 J70563714A ANC_SUPPORT J70563714A 1
6 J71561097A ANC_PLATE J71561097A 1
7 FC39-000443A FRAME-SLM_ANC_MAIN_BODY 1 J71561096A
8 J71561091A SHUTTER_BRACKET J71561091A 1
9 FC08-000037A BOX-LARGE DUMP BOX 1 1
10 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
11 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
12 HP14-900085 SPEED CONTROLLER [SS4-M5MA] 2
13 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1
14 FC09-004601A CYLINDER_BRACKET J70561001A 1 J70561001A
15 J70532144A DUMP_BOX J70532144A 1 J70532144A
16 AM03-012063A CABLE ASSY-DUMP_BOX_CHECK_SENSOR01 2
17 1
18 1
