Page HANWHA TECHWIN 54 SLM110S Head Ass’y (6/10) 24 2 39 31 30 17 A 35 47 6 34 12 40 46 1 14 26 3 9 50 28 44 42 32 45 29 10 48 21 49 37 11 19 4 9 41 20 23 22 33 38 25 25 16 13 15 15 5 8 18 7 27 36
Page
HANWHA TECHWIN
53
SLM110S
Head Ass’y (5/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
54
SLM110S

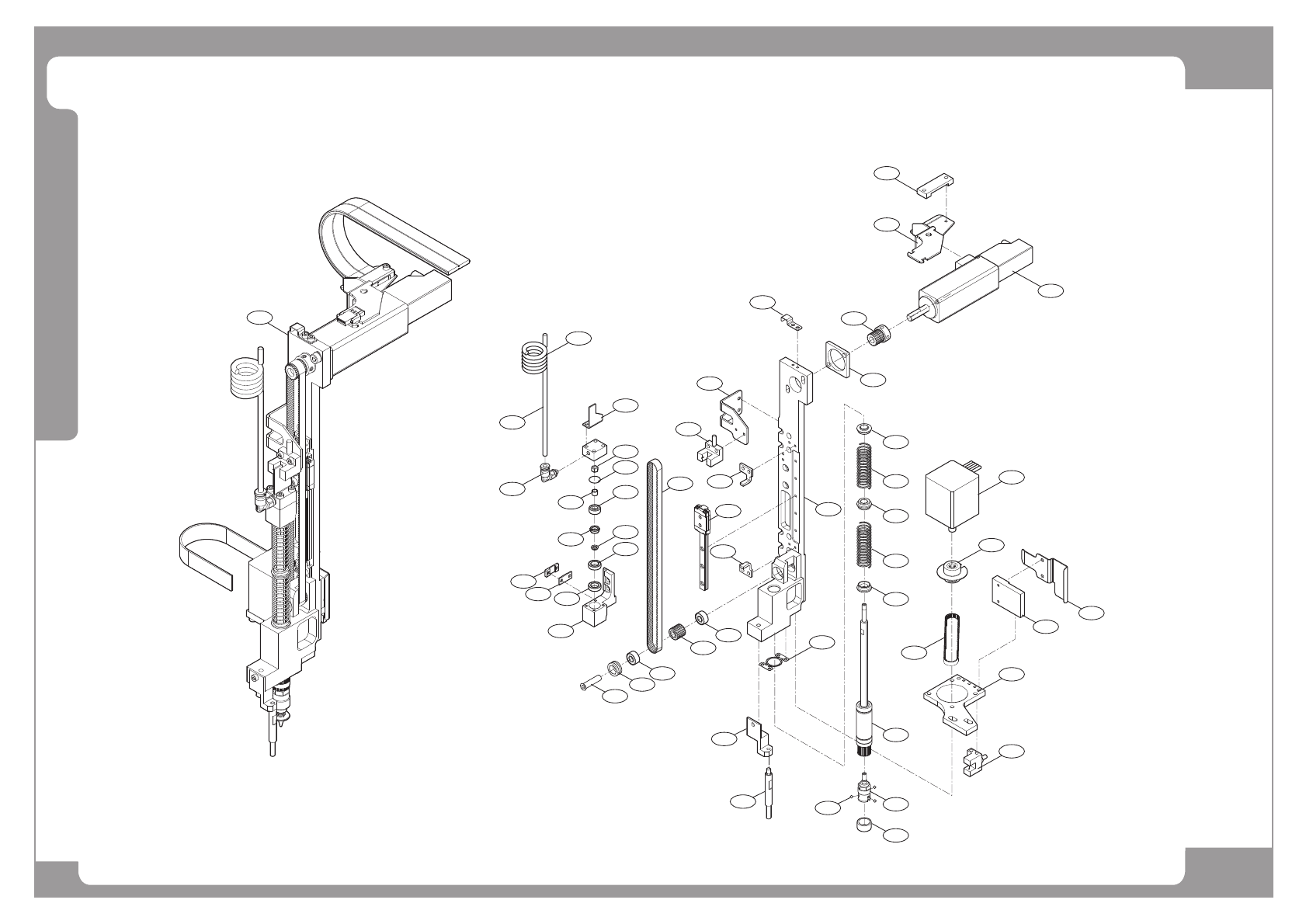

Head Ass’y (6/10)
24
2
39
31
30
17
A
35
47
6
34
12
40
46
1
14
26
3
9
50
28
44
42
32
45
29
10
48
21
49
37
11
19
4
9
41
20
23
22
33
38
25
25
16
13
15
15
5
8
18
7
27
36
Page
HANWHA TECHWIN
55
SLM110S
Head Ass’y (6/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A SPINDLE_MODULE1_ASSY 1
1 J71551837A T_MOTOR_PULLEY J71551837A 1
2 J71551840A Z_MOTOR_PULLEY J71551840A 1
3 FC18-901422 O_RING ID7 X WD0.5 1
4 J71551841A Z_ROD_HOUSING1 J71551841A 1
5 J72551103A SPRING_BASE J72551103A 1
6 J67131038A COIL_TUBE J67131038A 1
7 J90551508A BALL_SPLINE_ASSY J90551508A 1
8 J71551838A T_MOTOR_CABLE_BRACKET J71551838A 1
9 J70551867A PACKING_HOUSING J70551867A 1
10 J70551868A PACKING_COLLAR J70551868A 1
11 J70551869A Z_BELT_CLAMP J70551869A 1
12 J70551873A Z_BEARING_PLATE J70551873A 1
13 J70551874A Z_IDLE_SHAFT J70551874A 1
14 J70551899A Z_SENSOR_DOG_1 J70551899A 1
15 J70551934A SPINDLE_SPRING_1 J70551934A 2
16 J70551947A Z_IDLER_CAP J70551947A 1
17 J70551948A Z_SENSOR_GUIDE_2 J70551948A 1
18 J70551952A T_CABLE_CLAMP_1 J70551952A 1
19 J71551847A Z_BELT_FITTING J71551847A 1
20 J71551890A Z_MOTOR_PLATE J71551890A 1
21 FC09-000646A BRACKET-LENS_FIDUCIAL_SHAFT 1
22 J72551120A SPRING_COLLAR J72551120A 1
23 J72551121A SPRING_TOP_BASE J72551121A 1
24 J72551122A Z_CABLE_CLAMP J72551122A 1
25 MC03-900127 BEARING 2
