Page HANWHA TECHWIN 82 SLM110S Moving Frame Ass’y (1/2) 6 14 14 18 16 5 13 7 15 17 9 3 2 10 12 1 8 4 11 19 A
Page
HANWHA TECHWIN
81
SLM110S
Air Ass’y (6/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A J90581025A SM431_MANIFOLD_ASSY 1
B HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 2
CSOLENOID_VALVE 2
D HP09-000002 AIR SUPPLY UNIT-VACUUM GENERATOR 1
1 HP04-900024 ELEMENT_SEPARATOR PFH4000-0005A-6083 1
2 HP09-900132 REGULATOR PR4-04B 1
3 J70791243A COVER_VAC_GEN J70791243A 1
4 HP09-900118 REGULATOR HP09-900118 1
5 J70521670A MAGNETIC_CATCHE_BAR_L J70521670A 1
6 J70521639A PRESSURE_GAUGE_BKT J70521639A 1
7 TE07-900092 PRESSURE_SENSOR PSA-1(RC1/8) 1
8 HP06-900163 DOUBLE UNIVERSAL ELBOW 1
9 FC14-900637 PLUG 1
10 HP06-900290 MALE ELBOW 1
11 HP06-900047 ELBOW FITTING 2
12 HP06-900081 DOUBLE UNIVERSAL ELBOW 1
13 FC14-900722 PLUG 1
14 J2100009 MANIFOLD 1
15 HP06-900082 DOUBLE UNIVERSAL ELBOW 1
16 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1
17 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 2
18 FC14-900724 PLUG [PT 1/8] 3
19 1
20 HP04-900025 ELEMENT_AIR TAF4000-05-6000 1
Page
HANWHA TECHWIN
82
SLM110S

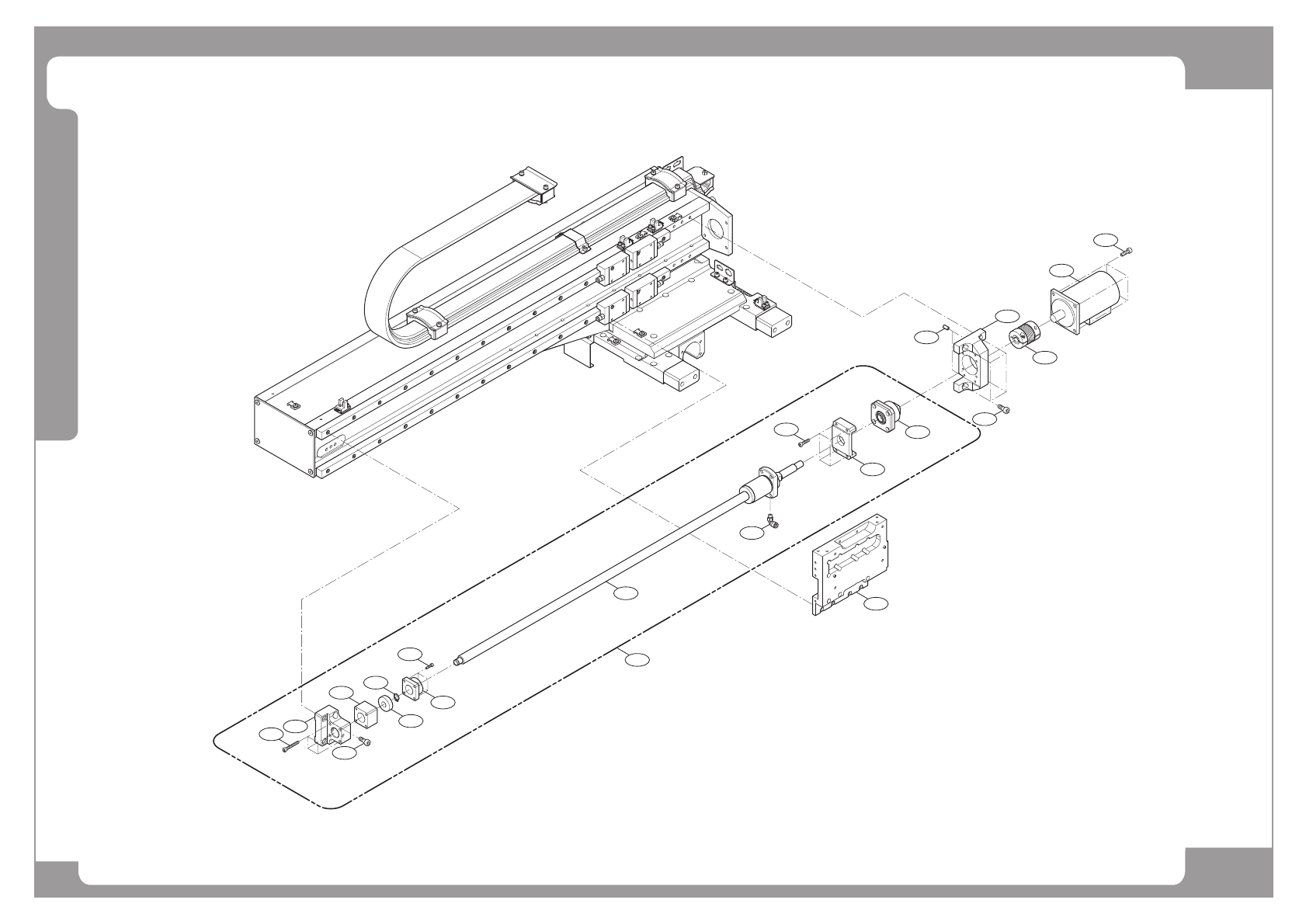

Moving Frame Ass’y (1/2)
6
14
14
18
16
5
13
7
15
17
9
3
2
10
12
1
8
4
11
19
A
Page
HANWHA TECHWIN
83
SLM110S
Moving Frame Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A MC13-900289 BALL_SCREW_MODULE MC13-900289 1
1 MC04-900012 SUPPORT_UNIT FK12-MP5 1
2 MC13-900204 BALL_SCREW WGF1530S_3GT_805.6LC5 1
3 J73541015A CUSHION_X_REAR J73541015A 1
4 J71541337B Y_BEARING_SUPPORT 1
5 J71541225A BRG_HOUSING_X2 J71541225A 1
6 J71541224A BRG_SUPPORT_X J71541224A 1
7 J1300417 C-RING 1
8 FC14-900251 COUPLING 1
9 MC03-900023 BALL BEARING 1
10 FC11-000001A CARRIER-HEAD_G1;ME6:Aluminum 1
11 EP08-000011 MOTOR,SERVO;AC,400W,WH3:motor 1
12 J72541003A CUSHION_X_FRONT J72541003A 1
13 FC18-902750 SOCKET HEAD CAP SCREW M4*30 (NI/ZN) 4
14 FC18-902773 SOCKET HEAD CAP SCREW M6*15 (NI/ZN) 6
15 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 4
16 1
17 4
18 2
19 4
