Page HANWHA TECHWIN 131 SLM110S Axis Sensor Board Interface (2/2) NO. Lev . P A RT NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834100A REAR_AXIS_SENSOR _CABLE_ASSY AP5_AX005 1 2 J90834101 A AXIS_SEN…
Page
HANWHA TECHWIN
130
SLM110S

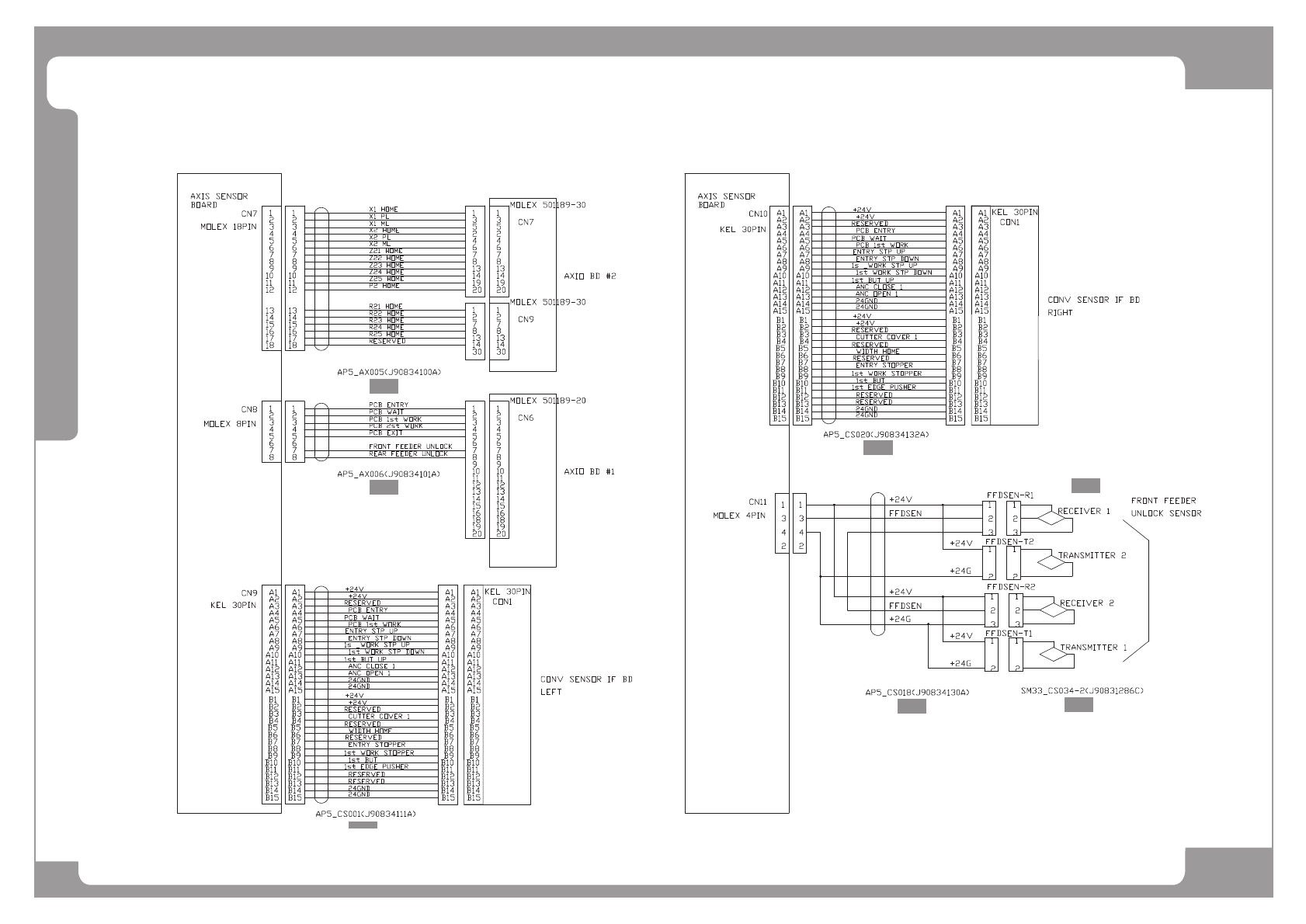

Axis Sensor Board Interface (2/2)
^4`
^5`
^7`
^6`
^8`
^9`
^:`
AM03-000170AAP5_CS036
Page
HANWHA TECHWIN
131
SLM110S
Axis Sensor Board Interface (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834100A REAR_AXIS_SENSOR_CABLE_ASSY AP5_AX005 1
2 J90834101A AXIS_SENSOR_CABEL_ASSY AP5_AX006 1
3 J90834111A L_CONV_IF_BD_CABLE_ASSY AP5_CS001 1
4 J90834132A R_CONV_IF_BD_CABLE_ASSY AP5_CS020 1
5 AM03-000170A CABLE ASSY-FDR_UNLOCK_LEFT_CABLE_ASSY 1
6 AM03-013468A FEEDER_UNLOCK_SEN_CABLE_ASSY AP5_CS018 1 J90834130A
7 J90831286C FDR_UNLOCK_RIGHT_CABLE_ASSY 1
Page
HANWHA TECHWIN
132
SLM110S

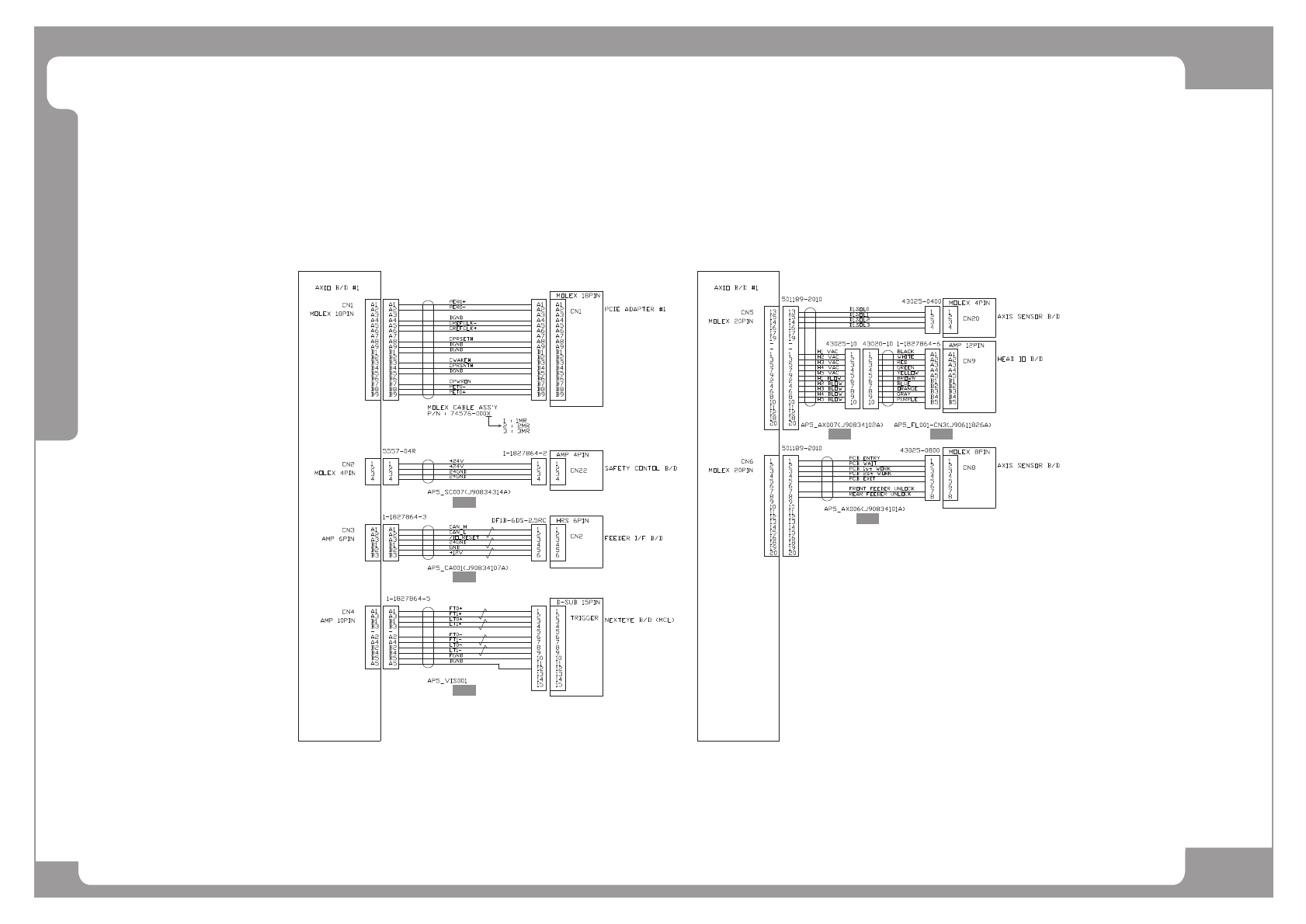

AXIO Board Interface (1/4)
^4`
^5`
^6`
^7`
^8`
^9`
AM03-005342A
