Page HANWHA TECHWIN 13 SLM110S Conveyor Ass’y (2/5) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 1 J70531091A PLA TE_LONG_OUT J70531091A 4 (170mm QTY :4EA) (310mm QTY :2EA) 2 J70531090A PLA TE_LONG_I…
Page
HANWHA TECHWIN
12
SLM110S
Conveyor Ass’y (2/5)
2
3
4
1
9
7
1
2
CONVEYOR 170mm OPTION
8
2
1
10
3
1
4
2
5
2
1
6
5
6
1
2
CONVEYOR 310mm OPTION (ONLY LR)
RL1
RL2
LR1
LR2
LR1 LR2
LR1 LR2
LR1 LR2
CONVEYOR 310mm OPTION (ONLY RL)
RL1 RL2
2
1
10
8
1
2
7
9
Page
HANWHA TECHWIN
13
SLM110S
Conveyor Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70531091A PLATE_LONG_OUT J70531091A 4 (170mm QTY:4EA) (310mm QTY:2EA)
2 J70531090A PLATE_LONG_IN J70531090A 4 (170mm QTY:4EA) (310mm QTY:2EA)
3 J70531051B EXTENSION GUIDE 1 2
4 J71531052B EXTENSION GUIDE 2 2
5 FC30-000322A EXTEND RAIL 1 2
6 FC30-000323A EXTEND RAIL 2 2
7 FC30-000376A PLATE-EXTENSION_GUIDE_2_310MM 1
8 FC30-000375A PLATE-EXTENSION_GUIDE_1_310MM 1
9 FC30-000373A PLATE-EXTEND_RAIL_1_310MM 1
10 FC30-000374A PLATE-EXTEND_RAIL_2_310MM 1
Page
HANWHA TECHWIN
14
SLM110S

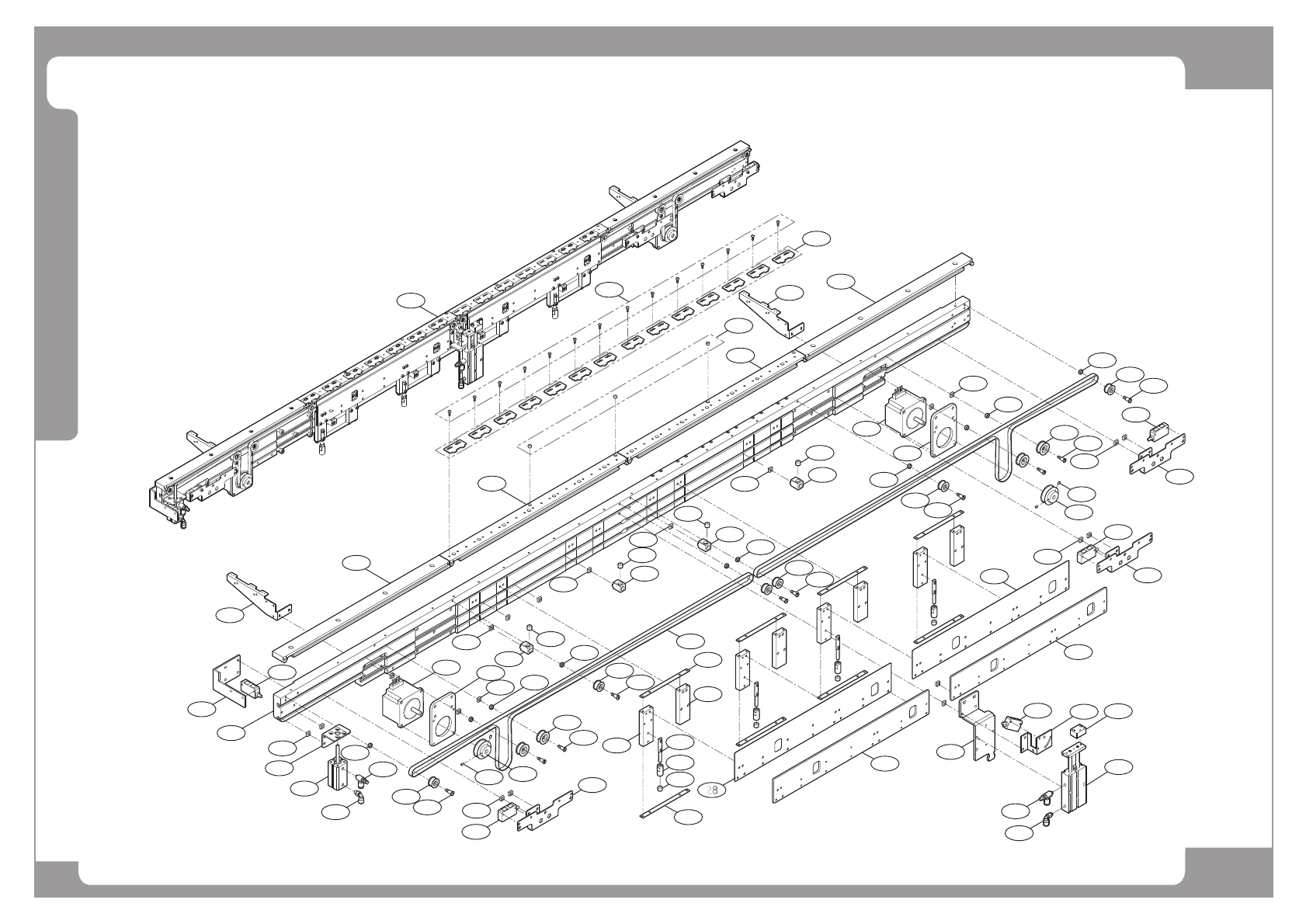

Conveyor Ass’y (3/5)
16
20
20
28
32
26
11
10
13
7
7
7
14
8
9
8
9
9
12
17
21
40
22
23
6
2
3
4
13
13
31
13
8
9
7
13
13
11
12
13
13
1
42
5
8
7
9
13
10
19
24
25
18
15
15
39
39
33
34
36
37
41
31
31
32
32
32
31
13
7
7
8
9
14
9
10
29
35
28
38
33
38
27
10
17
17
30
42
A
