Page HANWHA TECHWIN 133 SLM110S AXIO Board Interface (1/4) NO. Lev . P A RT NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834314A SC_CN22_ AXIO_1_PWR_CABLE_ A SSY AP5_SC007 1 2 J90834107A AXIO_1_FD_CA…
Page
HANWHA TECHWIN
132
SLM110S
AXIO Board Interface (1/4)
^4`
^5`
^6`
^7`
^8`
^9`
AM03-005342A
Page
HANWHA TECHWIN
133
SLM110S
AXIO Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834314A SC_CN22_AXIO_1_PWR_CABLE_ASSY AP5_SC007 1
2 J90834107A AXIO_1_FD_CAN_CABLE_ASSY AXIO_1_FD_CAN_C 1
3 AM03-005342A CABLE ASSY-NEXTEYL_BD_LSC_TRIG_CABLE_AS 1
4 J90834102A F_VAC_BLOW_SENSOR_CABLE_ASSY AP5_AX007 1
5 J90611826A REAR_DOOR_SENSOR_CABLE_ASSY 1
6 J90834101A AXIS_SENSOR_CABEL_ASSY AP5_AX006 1
Page
HANWHA TECHWIN
134
SLM110S

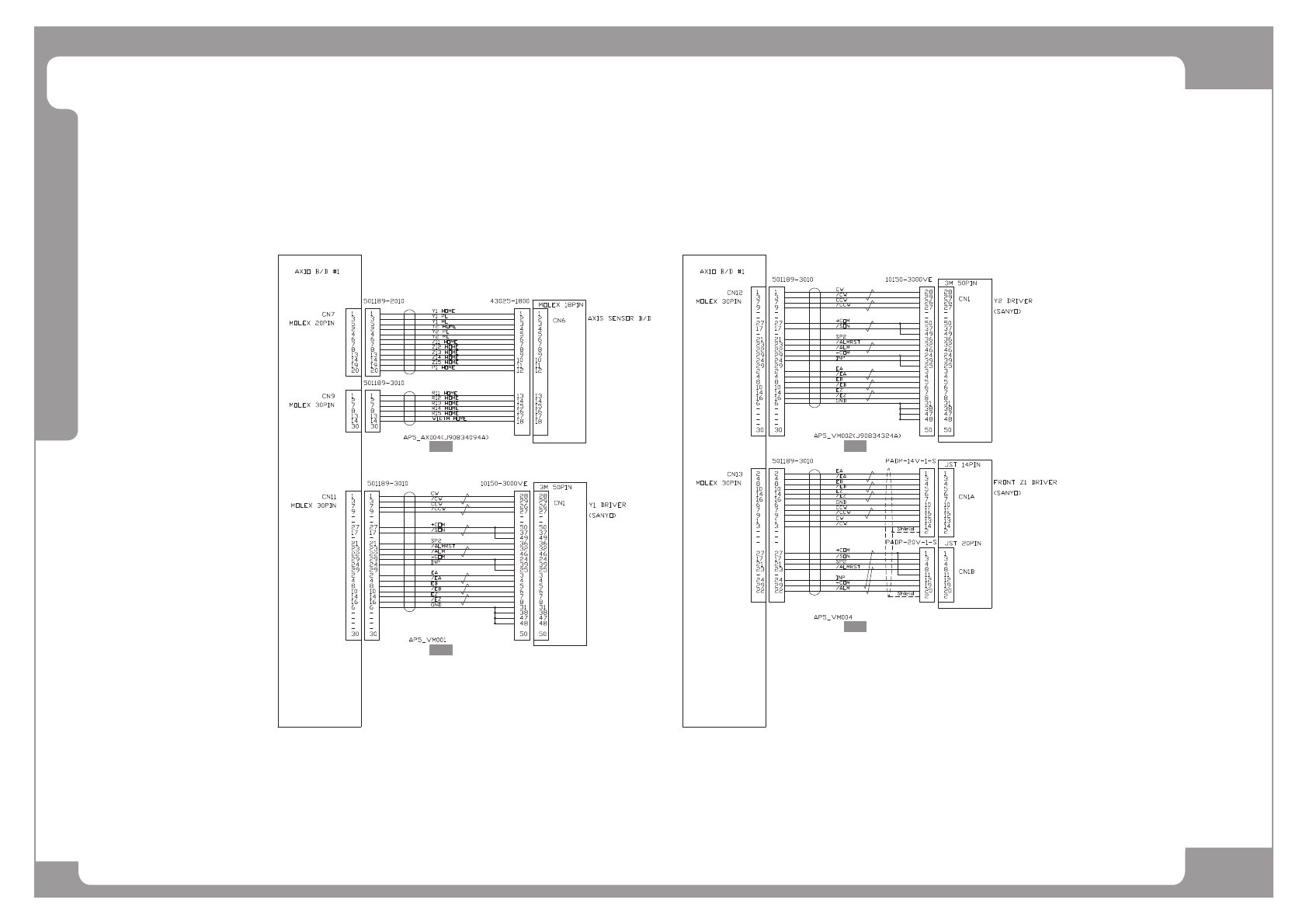

AXIO Board Interface (2/4)
^4`
^5`
^6`
^7`
AM03-000863A
AM03-004786A
