Page HANWHA TECHWIN 44 SLM110S Head Ass’y (2/10) 3 4 11 6 5 1 9 14 12 7 2 13 13 13 15 8 16 10

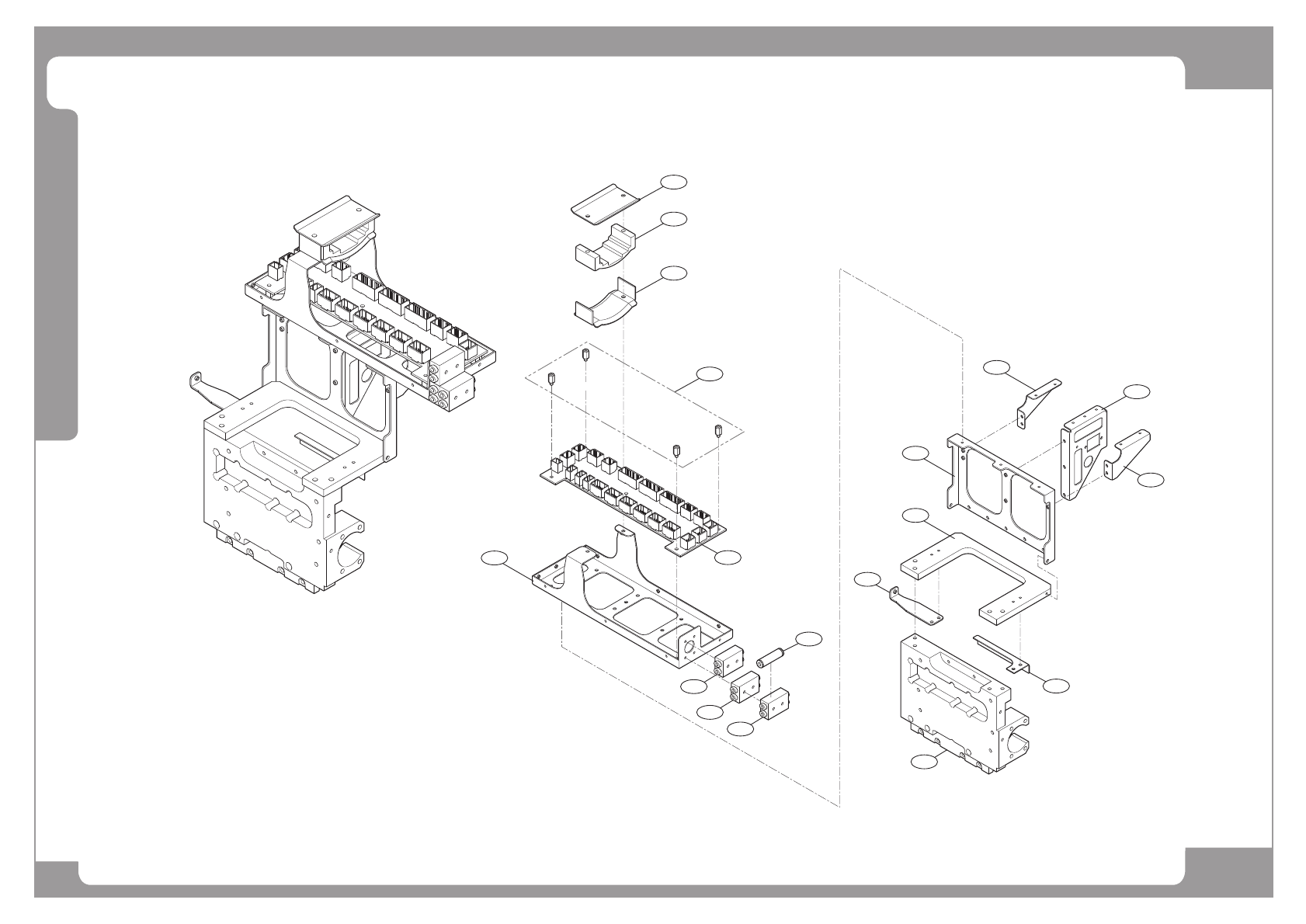

Page
HANWHA TECHWIN
43
SLM110S
Head Ass’y (1/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J71551899A HEAD_BKT_COVER_L J71551899 1
2 J71551906A FID_BRACKET_L J71551906A 1
3 J70551968A COVER_FIX_BKT_3 J70551968A 1
4 J71551901A HEAD_COVER_L J71551901A 1
5 J70551967A COVER_FIX_BKT_1 J70551967A 1
6 J71551900A FRONT_COVER_L J71551900A 1
7 J91851121A AP5_08_FIDUCIA_LENS_ASSY 1
8 AM03-003284A ASSY,HEAD-LENS MOUNTER HEAD ASSY 1
9 FC09-002422A BRACKET-FID_CAM_COVER_1 1
Page
HANWHA TECHWIN
44
SLM110S
Head Ass’y (2/10)
3
4
11
6
5
1
9
14
12
7
2
13
13
13
15
8
16
10
Page
HANWHA TECHWIN
45
SLM110S
Head Ass’y (2/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J71541353A Y_CABLE_FIX_HEAD J71541353A 1
2 J71541345A X_CUSHION_BRACKET_AL J71541345A 1
3 J70551944A HEAD_BRACKET_L J70551944A 1
4 J70551945A HEAD_BRACKET_CENTER J70551945A 1
5 J70551966A COVER_FIX_BKT_2 J70551966A 1
6 J71551865A HEAD_BRACKET_PLATE J71551865A 1
7 J73541024A X_CABLE_CUSHION J73541024A 1
8 J70551884A MOVING_SNS_DOG J70551884A 1
9 J70551882A HEAD_BRACKET_3 J70551882A 1
10 J70551939A HEAD_BRACKET_SIDE_1 1
11 J70551940A HEAD_BRACKET_SIDE_2 1
12 FC29-900605 HEX SUPPORT [M3*10 (BOLT-NUT)] 4
13 J1301070 STRAIGHT_CONNETOR_FITTING 3
14 HP-000208 CHECK VALVE 1
15 1
16 1
