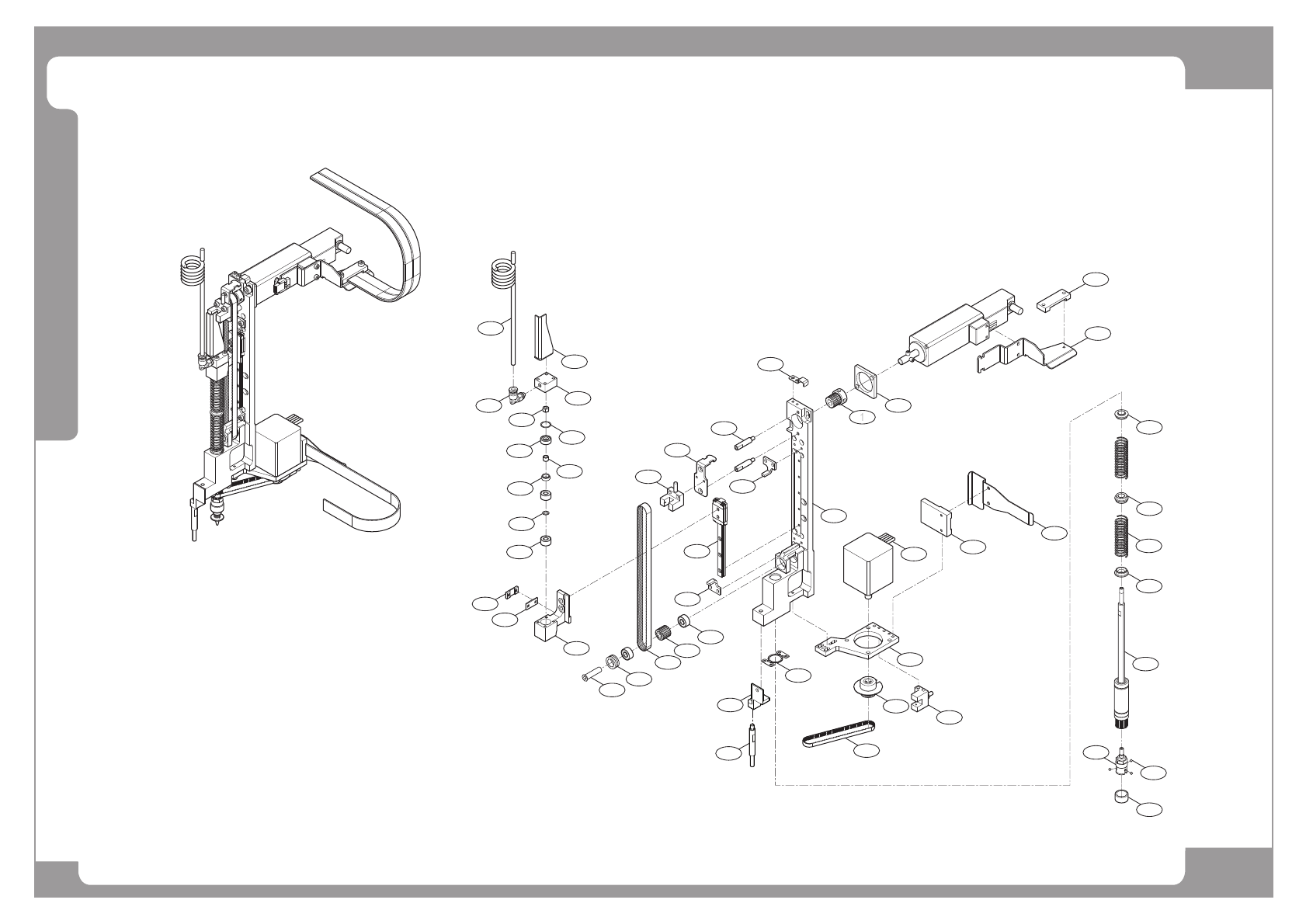

Page HANWHA TECHWIN 66 SLM110S Head Ass’y (9/10) 36 31 2 6 15 26 27 25 28 18 16 39 13 50 23 21 20 34 46 35 45 49 11 29 9 4 33 14 38 43 17 12 5 42 1 24 48 40 22 10 41 32 37 8 30 44 7 19 19
Page
HANWHA TECHWIN
65
SLM110S
Head Ass’y (8/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
66
SLM110S
Head Ass’y (9/10)
36
31
2
6
15
26
27
25
28
18
16
39
13
50
23
21
20
34
46
35
45
49
11
29
9
4
33
14
38
43
17
12
5
42
1
24
48
40
22
10
41
32
37
8
30
44
7
19
19
Page
HANWHA TECHWIN
67
SLM110S
Head Ass’y (9/10)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A SPINDLE_MODULE4_ASSY 1
1 J71551840A Z_MOTOR_PULLEY J71551840A 1
2 J90551508A BALL_SPLINE_ASSY J90551508A 1
3 J71551837A T_MOTOR_PULLEY J71551837A 1
4 FC18-901422 O_RING ID7 X WD0.5 1
5 J71551844A Z_ROD_HOUSING4 J71551844A 1
6 J72551103A SPRING_BASE J72551103A 1
7 J67131038A COIL_TUBE J67131038A 1
8 J70551867A PACKING_HOUSING J70551867A 1
9 J70551868A PACKING_COLLAR J70551868A 1
10 J70551869A Z_BELT_CLAMP J70551869A 1
11 J70551873A Z_BEARING_PLATE J70551873A 1
12 J70551874A Z_IDLE_SHAFT J70551874A 1
13 J70551895A Z_SENSOR_BRACKET_2 J70551895A 1
14 J70551900A Z_SENSOR_DOG_2 J70551900A 1
15 J70551934A SPINDLE_SPRING_1 J70551934A 2
16 J70551903A Z_SENSOR_POST_1 J70551903A 2
17 J70551947A Z_IDLER_CAP J70551947A 1
18 J70551948A Z_SENSOR_GUIDE_2 J70551948A 1
19 J70551953A Z_STOP_PLATE_1 J70551953A 2
20 J70551956A T_CABLE_CLAMP_4 J70551956A 1
21 J71551838A T_MOTOR_CABLE_BRACKET J71551838A 1
22 J71551847A Z_BELT_FITTING J71551847A 1
23 J71551890A Z_MOTOR_PLATE J71551890A 1
24 FC09-000646A BRACKET-LENS_FIDUCIAL_SHAFT 1
25 J71551896A Z_CABLE_BKT_3 J71551896A 1
