Page HANWHA TECHWIN 26 SLM110S FLASH Conveyor Ass’y (2/4) 16 20 20 26 10 29 29 30 29 27 A 27 28 27 30 11 10 13 7 7 7 14 8 9 14 7 7 13 9 9 8 9 12 17 21 22 13 41 23 6 2 3 4 1 5 8 7 9 8 7 11 12 9 13 13 10 17 10 13 13 13 31 …
Page
HANWHA TECHWIN
25
SLM110S
FLASH Conveyor Ass’y (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
26
SLM110S

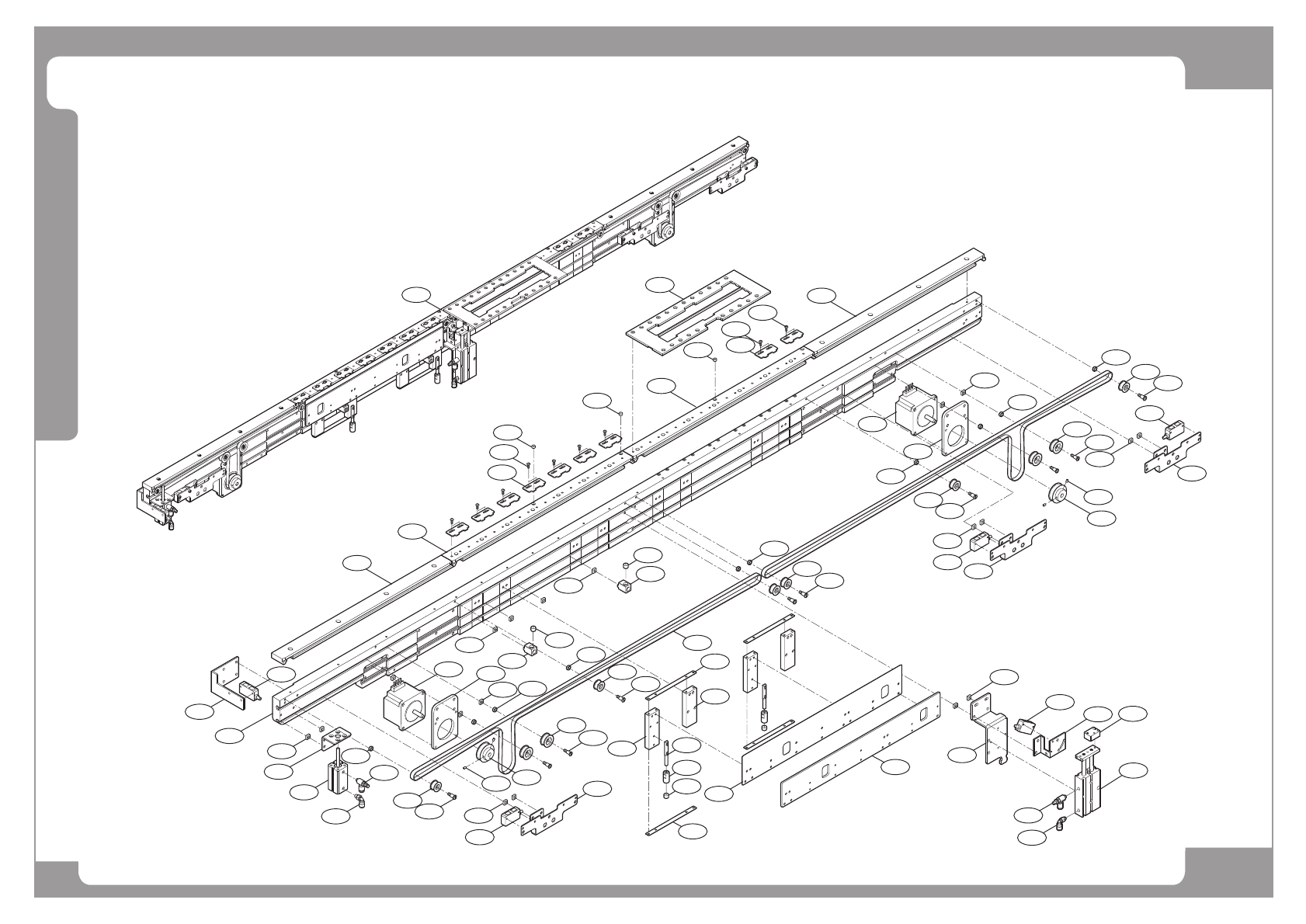

FLASH Conveyor Ass’y (2/4)
16
20
20
26
10
29
29
30
29
27
A
27
28
27
30
11
10
13
7
7
7
14
8
9
14
7
7
13
9
9
8
9
12
17
21
22
13
41
23
6
2
3
4
1
5
8
7
9
8
7
11
12
9
13
13
10
17
10
13
13
13
31
13
19
24
25
18
32
15
15
40
17
40
33
34
36
37
42
31
32
8
9
35
39
38
33
Page
HANWHA TECHWIN
27
SLM110S
FLASH Conveyor Ass’y (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A FIX_RAIL_ASSY 1
1 FC09-000829A BRACKET-OUTER_SENSOR 1
2 FC39-002165A AP5-04-CONV_FRONT_FRAME 1 J71531378A
3 J70532000A AP5-04-OUT_CYLINDER_BKT J70532000A 1
4 HP03-900009 CYLINDER AQ2A12-30D 1
5 HP06-900047 ELBOW FITTING 1
6 HP14-900083 THROTTLE VALVE(ELBOW) 1
7 J7053047A IDLER SPACER-S 10
8 J7253007A IDLER 2 6
9 J2101818 IDLER SHAFT-S [0135-641105] 10
10 EP19-900099 PHOTO SENSOR[E3S-LS3N] 4
11 EP08-900073 STEP_MOTOR 2S56Q-01842SR2 2
12 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2
13 J7053184A SQUARE NUT M4 8
14 J7253006A IDLER1 4
15 J7153111A TEP MOTOR PULLEY [J7153111A] 2
16 J71531384A AP5-04-PCB_GUIDE_END_L J71531384A 1
17 J70532010A AP5-04-WAIT_SENSOR_BKT J70532010A 3
18 MC05-900188 FLAT_BELT-MAM_5P MAM-5P-1815 2
19 FC09-000523A BRACKET-CONV_STOPPER 1
20 J70532002A AP5-04-PCB_GUIDE_FC_BOTTOM J70532002A 2
21 FC09-000521A BRACKET-PCB_SENSOR 1
22 FC30-000292A PLATE_STOP_TOP 1
23 HP03-900015 STOPPER_CYLINDER1 1
24 HP14-900083 THROTTLE VALVE(ELBOW) 1
25 HP06-900047 ELBOW FITTING 1
26 J71531385A AP5-04-PCB_GUIDE_END_R J71531385A 1
