Page HANWHA TECHWIN 11 2 SLM110S Feeder Board Interface (2/4) ^4` ^5` ^6`
Page
HANWHA TECHWIN
111
SLM110S
Feeder Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834107A AXIO_1_FD_CAN_CABLE_ASSY AXIO_1_FD_CAN_C 1
2 J90834108A FD_AX_SEN_BD_CAN_CABLE_ASSY AP5_CA002 1
3 J90834169A FDR_IO_PWR_CABLE_ASSY AP5_FD001 1
4 J90834171A F_FDR_SOL_OUTPUT_CABLE_ASSY AP5_FD002 1
5 J90834174A R_FDR_SOL_OUTPUT_CABLE_ASSY AP5_FD003 1
6 J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1
7 J90834178A FDR_BASE_PWR_CABEL_ASSY AP5_FD006 1
Page
HANWHA TECHWIN
112
SLM110S
Feeder Board Interface (2/4)
^4`
^5`
^6`
Page
HANWHA TECHWIN
113
SLM110S

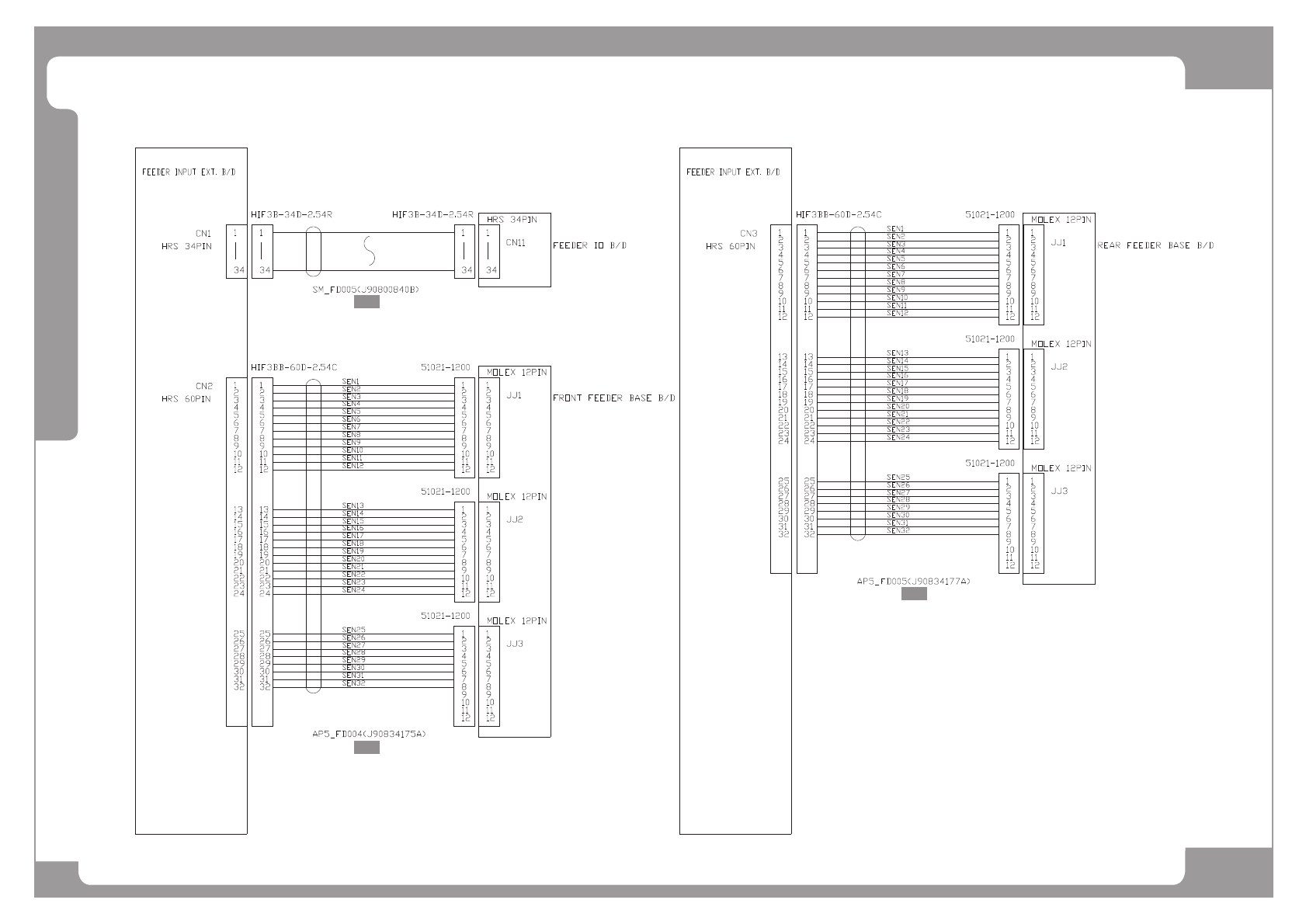

Feeder Board Interface (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90800840B FDR INPUT EXT CABLE ASSY 1
2 J90834175A F_FDR_SENSOR_INPUT_CABLE_ASSY 1
3 J90834177A R_FDR_SENSOR_INPUT_CABLE_ASSY 1
