Page HANWHA TECHWIN 22 SLM110S FLASH Conveyor Ass’y (1/4) 7 3 28 29 4 28 5 45 6 6 6 6 5 12 27 30 32 33 31 26 38 36 37 18 11 12 C 18 19 18 19 A B B A 18 18 A 14 17 16 23 1 2 34 35 6 9 A C 10 10 21 22 8 13 24 25 B 26 27 25…
Page
HANWHA TECHWIN
21
SLM110S
Conveyor Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A RAIL_TRANSFER_R_ASSY 1
1 FC18-902045 LEAD-SCREW-DCM16_470_5_TOYO FC18-902045 1
2 RM01-900167 LM-RAIL-SBG20SLL_410_SBC RM01-900167 1
3 MC05-900026 TIMING BELT [258-3M-9] 1
4 J70532115A STOPPER_BRACKET J70532115A 1
5 MC19-900014 PULLEY-WIDTH [20-XL-025] 1
6 MC19-900015 PULLEY-MOTOR [P32-3M-9] 1
7 J7053194A BEARING NUT [J7053194A] 1
8 J7153330A PULLEY SHAFT[J7153330A] 1
9 MC03-900023 BALL BEARING 2
10 EP19-900099 PHOTO SENSOR[E3S-LS3N] 1
11 MC03-900121 BALL BEARING[F608ZZ] 2
12 J70531735A BELT_TENSION_BKT J70531735A 1
13 J70531993A AP5-04-BRACKET_SERVO_MOTOR J70531993A 1
14 J70531999A AP5-04-FIX_STAND J70531999A 1
15 J70532006A SCREW_STAND 1
16 J70532009A AP5-04-SUPPORT_WIDE_ADJUST J70532009A 1
17 FC30-001415A PLATE-STOPPER_TOP_SMC;SS400 1
18 HP03-900015 STOPPER_CYLINDER1 1
19 EP08-000009 MOTOR,SERVO;AC,100W,WH3:MOTOR 1
20 J70531736A TENSION_BEARING_PIN J70531736A 1
21 HP06-900047 ELBOW FITTING 1
22 HP14-900083 THROTTLE VALVE(ELBOW) 1
Page
HANWHA TECHWIN
22
SLM110S

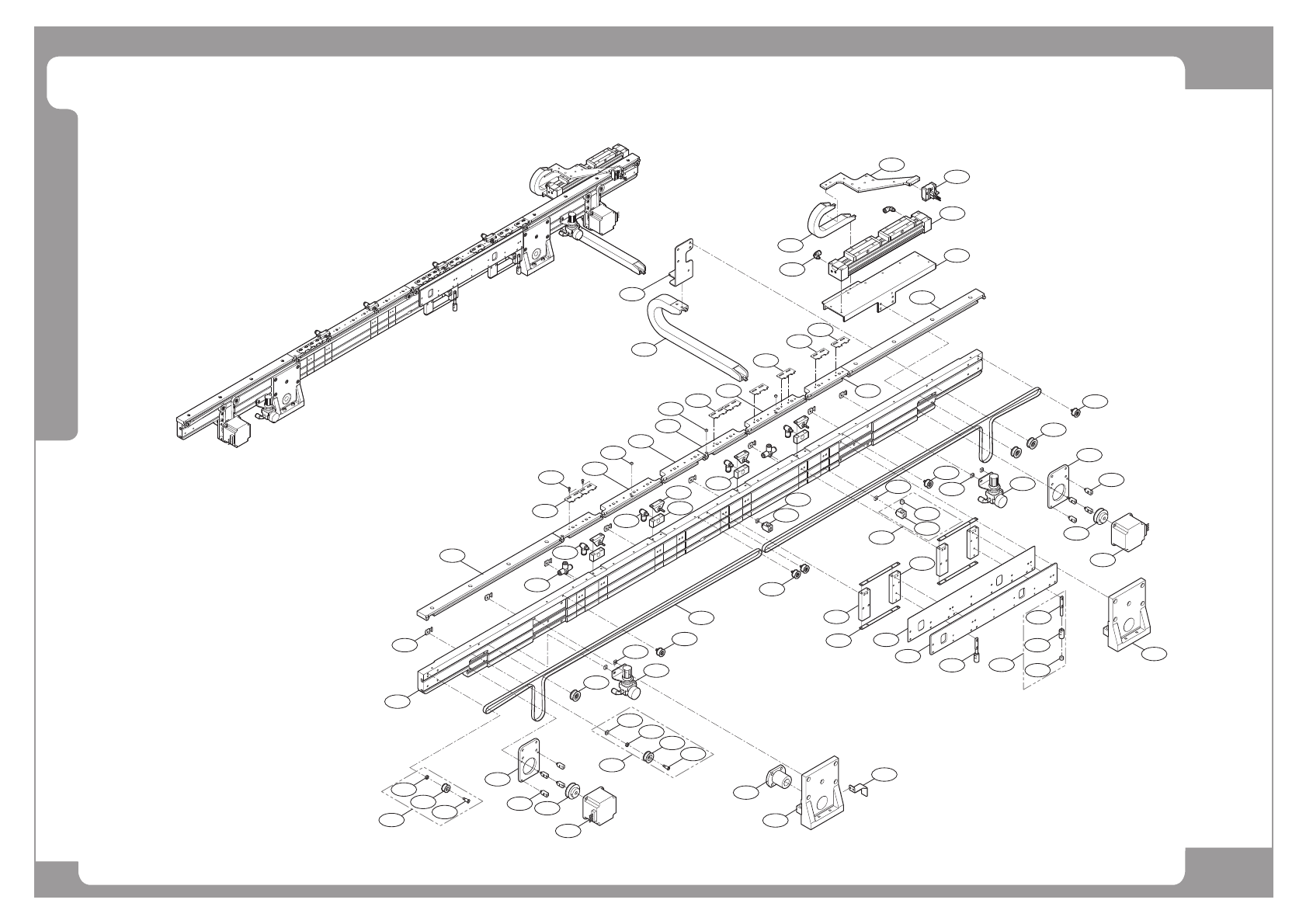

FLASH Conveyor Ass’y (1/4)
7
3
28
29
4
28
5
45
6
6
6
6
5
12
27
30
32
33
31
26
38
36
37
18
11
12
C
18
19
18
19
A
B
B
A
18
18
A
14
17
16
23
1
2
34
35
6
9
A
C
10
10
21
22
8
13
24
25
B
26
27
25
24
44
B
B
46
43
42
41
39
40
20
22
4
14
16
15
A
Page
HANWHA TECHWIN
23
SLM110S
FLASH Conveyor Ass’y (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A MOVE_RAIL_ASSY 1
1 J70532039A CABLEVEYOR_BKT J70532039A 1
2 EP03-000038 CABLEVEYOR-HSP0130-1BN-37R-15LINK 1 EP03-900058
3 J71531385A AP5-04-PCB_GUIDE_END_R J71531385A 1
4 J70532005A AP5-04-PCB_GUIDE_RC_BOTTOM_3 J70532005A 2
5 J7153373A FIDUCIAL DISK[J7153373A] 3
6 FC30-001099A PLATE-PLATE-PCB_CLAMPING_EXT 8
7 J71531384A AP5-04-PCB_GUIDE_END_L J71531384A 1
8 FC18-903195 PROFILE MOUNT [DIA4.0] 8
9 HP06-900229 COMPACT_FITTING SCT04-00 2
10 HP06-000140 FITTING-UNIVERSAL_MALE_ELBOW;ELBOW 4 HP06-900238
11 HP03-900121 PIN_CYLINDER_APML6-5-B APML6-5-B 4
12 FC09-000256A BRACKET-EDGE_FIXER2;ME1:STEEL 4
13 J71531379A AP5-04-CONV_REAR_FRAME J71531379A 1
14 J7053047A IDLER_SPACER_S 10
15 J7253007A IDLER2 6
16 J2101818 IDLER SHAFT-S [0135-641105] 10
17 J7253006A IDLER1 4
18 J7053184A SQUARE NUT M4 7
19 HP09-900109 REGULATOR 2
20 MC05-900188 FLAT_BELT-MAM_5P MAM-5P-1815 2
21 MC13-900238 LEAD SCREW NUT 2
22 J70531739A MOVE_STAND J70531739A 2
23 J70532112A SENSOR_DOG 1
24 EP08-900073 STEP_MOTOR 2S56Q-01842SR2 2
25 J7153111A TEP MOTOR PULLEY [J7153111A] 2
26 J70531083A ALT_MOTOR_SUPPORT J70531083A 8
