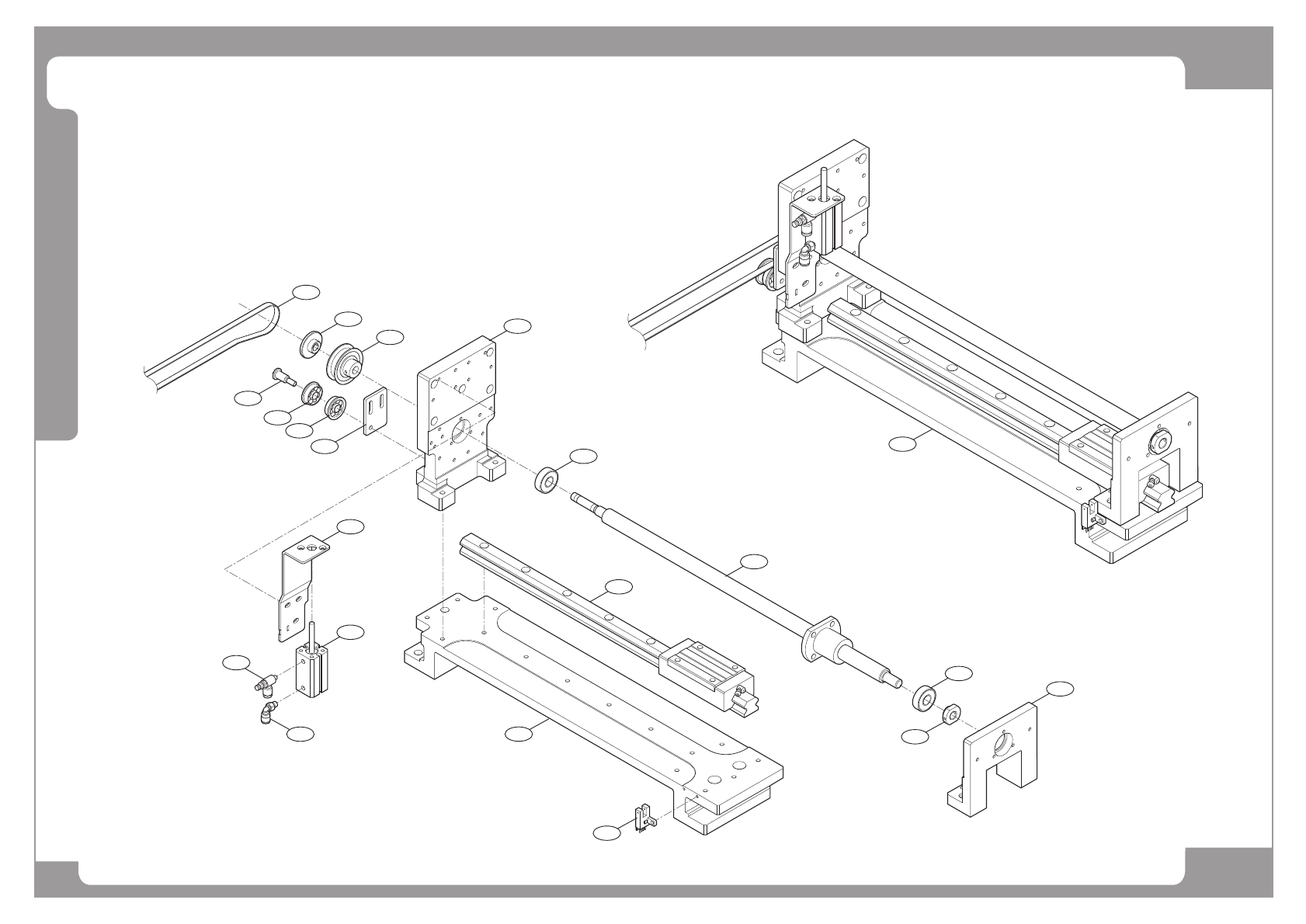

Page HANWHA TECHWIN 30 SLM110S FLASH Conveyor Ass’y (3/4) 9 16 3 5 4 13 2 1 8 8 14 17 11 11 A 15 10 6 12 18 7
Page
HANWHA TECHWIN
29
SLM110S
FLASH Conveyor Ass’y (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
30
SLM110S
FLASH Conveyor Ass’y (3/4)
9
16
3
5
4
13
2
1
8
8
14
17
11
11
A
15
10
6
12
18
7
Page
HANWHA TECHWIN
31
SLM110S
FLASH Conveyor Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A RAIL_TRANSFER_L_ASSY 1
1 FC18-902045 lead-screw-dcm16_470_5_toyo FC18-902045 1
2 RM01-900167 lm-rail-sbg20sll_410_sbc RM01-900167 1
3 HP03-900009 CYLINDER AQ2A12-30D 1
4 MC19-900014 PULLEY-WIDTH [20-XL-025 ] 1
5 J70531109A MANUAL_HANDLE J70531109A 1
6 J7053194A BEARING NUT [J7053194A] 1
7 MC05-900132 XL_WIDTH_BELT_349 025-XL-349A-J 1
8 MC03-900023 BALL BEARING 2
9 HP14-900083 THROTTLE VALVE(ELBOW) 1
10 EP19-900134 MICRO_PHOTO_SENSOR PM-F24 1
11 MC03-900121 BALL BEARING[F608ZZ] 2
12 J70531735A BELT_TENSION_BKT J70531735A 1
13 J70531999A ap5-04-fix_stand J70531999A 1
14 J70532006A SCREW_STAND 1
15 J70532009A ap5-04-support_wide_adjust J70532009A 1
16 J70532035A AP5-04-WAIT_CYLINDER_BKT J70532035A 1
17 J70531736A TENSION_BEARING_PIN J70531736A 1
18 HP06-900047 ELBOW FITTING 1
