Page HANWHA TECHWIN 94 SLM110S Cover Ass’y (3/3) 2 4 3 7 7 10 10 9 11 11 12 12 6 8 8 5 10 10 1 9
Page
HANWHA TECHWIN
93
SLM110S
Cover Ass’y (2/3)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A AM03-006688A ASSY,COVER-KEYBOARD_MOUSE_ASSY 1
A-1 CD04-900026 MINI_KEYBOARD 5510UH 1
A-2 J70521450A KEYBOARD_BASE J70521450A 1
A-3 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 1 CD04-
900005
A-4 J70521241A MOUSE_BRACKET J70521241A 1
A-5 FC28-901099 TRIMS-2 1
B J90521099A AP5_OP_PANEL_ASSY 1
B-1 PT03-900161A STICKER-EMERGENCY PT03-900161A 2
B-2 EP20-900127 EMERGENCY S/W[704.075.2] 2
B-3 EP20-900029 ILLUMINATED PUSHBUTTON ACTUATOR 5
B-4 J71521015B BUTTON_CAP 1
B-5 J70521673A AP5_OP_PANEL_PLATE J70521673A 1
C AM03-900154 AP5_ACRYL_DOOR_STD_ASSY 1
C-1 FC29-900147 HANDLE 1
C-2 1
C-3 1
Page
HANWHA TECHWIN
94
SLM110S

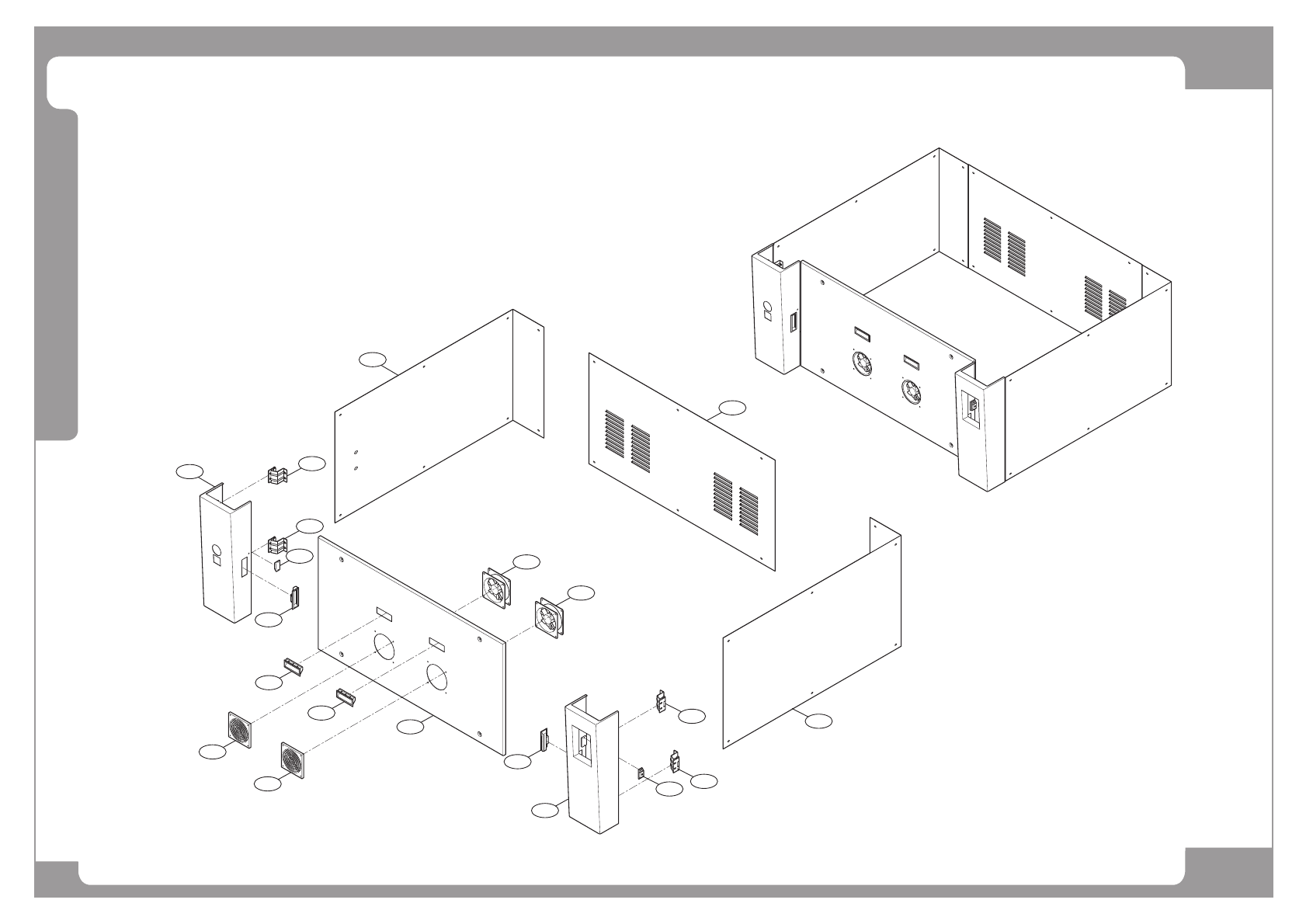

Cover Ass’y (3/3)
2
4
3
7
7
10
10
9
11
11
12
12
6
8
8
5
10
10
1
9
Page
HANWHA TECHWIN
95
SLM110S
Cover Ass’y (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC15-000747A COVER-SLM_DOWN_SIDE_COVER_L 1 J70521703A
2 FC15-000748A COVER-SLM_DOWN_SIDE_COVER_R 1 J70521704A
3 FC15-000746A COVER-SLM_COVER_DOWN_BACK 1 J70521706A
4 J70521714A AP5_COVER_DOWN_LEFT J70521714A 1
5 J70521713A AP5_COVER_DOWN_RIGHT J70521713A 1
6 FC15-000745B COVER-SLM_COVER_LFM 1 J70521696A
7 EP07-901508 COOLING FAN[4715MS-22T-B50] 2
8 FC09-900008 PE-3 PE-3-1(KB) 2
9 FC12-900009 MAGNETIC C-179 2
10 FC29-900197 B-530-1_HINGE B-530-1 4
11 EP07-901528 FAN_FILTER 120MM(NMB) 2 HP04-900010
12 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2
