Page HANWHA TECHWIN 7 SLM110S Feeder Base Ass'y No. PA R T N o . P ART NAME Q'TY Old No. Sto ck Apply Reference A J 90571071A FEEDER_BASE_MODUL E_ASSY 1 1 FC14-000876 COUPLER 16 HP06-9001 69 2 J705710 24A BODY_…
Page
HANWHA TECHWIN
6
SLM110S

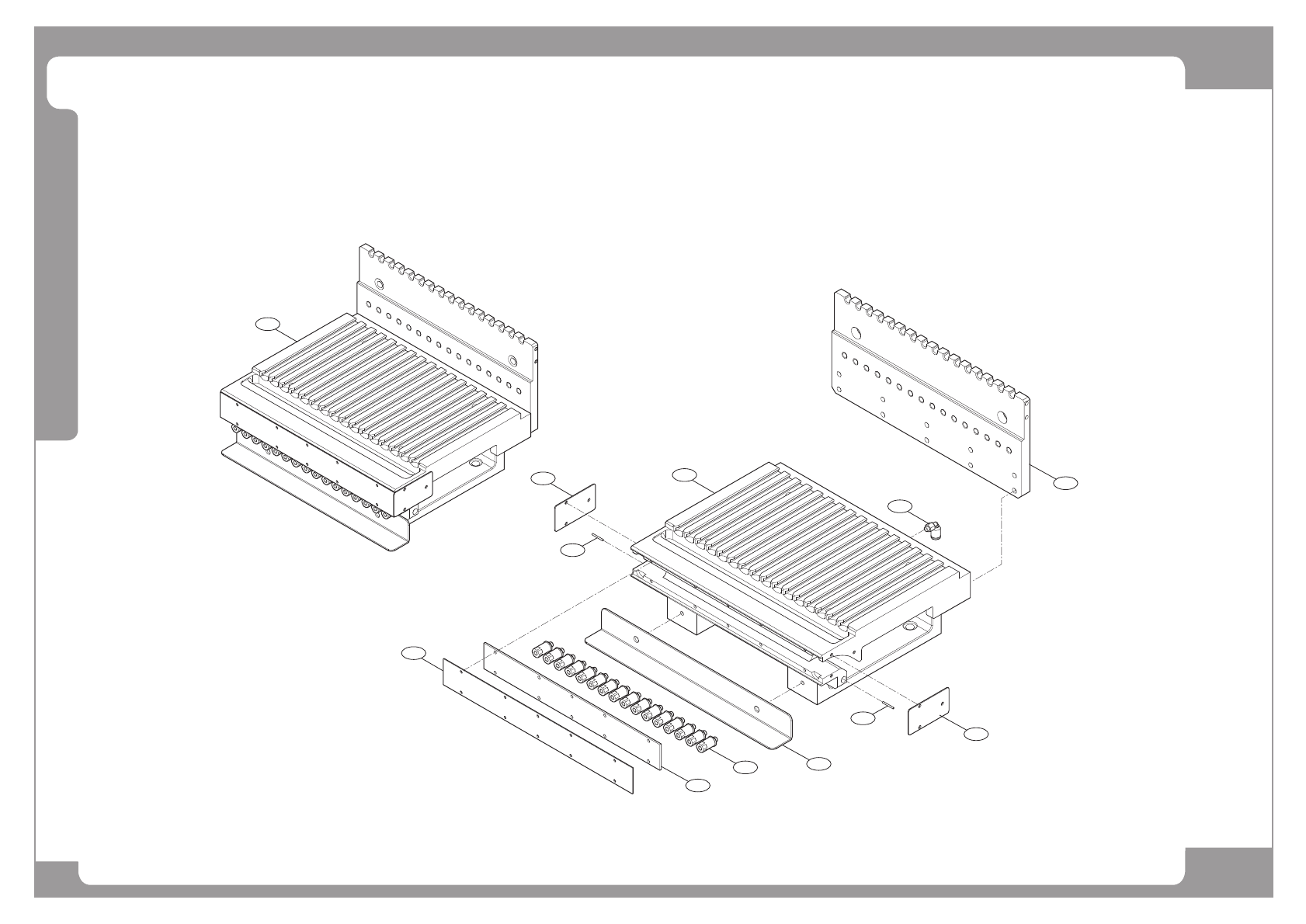

Feeder Base Ass'y
2
8
A
5
6
4
8
7
3
1
9
9
Page
HANWHA TECHWIN
7
SLM110S
Feeder Base Ass'y
No. PART No. PART NAME Q'TY Old No. Stock Apply Reference
A J90571071A FEEDER_BASE_MODULE_ASSY 1
1 FC14-000876 COUPLER 16 HP06-900169
2 J70571024A BODY_FEEDER_BASE J70571024A 1
3 J91741280A SCM_FEEDER_BASE_ASSY REV 1.0 1
4 J70571058A VERTICAL_PLATE J70571058A 1
5 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
6 J41041067A SCM_FEEDER_BASE_COVER J41041067A 1
7 J70571059A FB_FRONT_COVER J70571059A 1
8 J7057213A SIDE CABLE COVER-FB[J7057213A] 2
9
Page
HANWHA TECHWIN
8
SLM110S

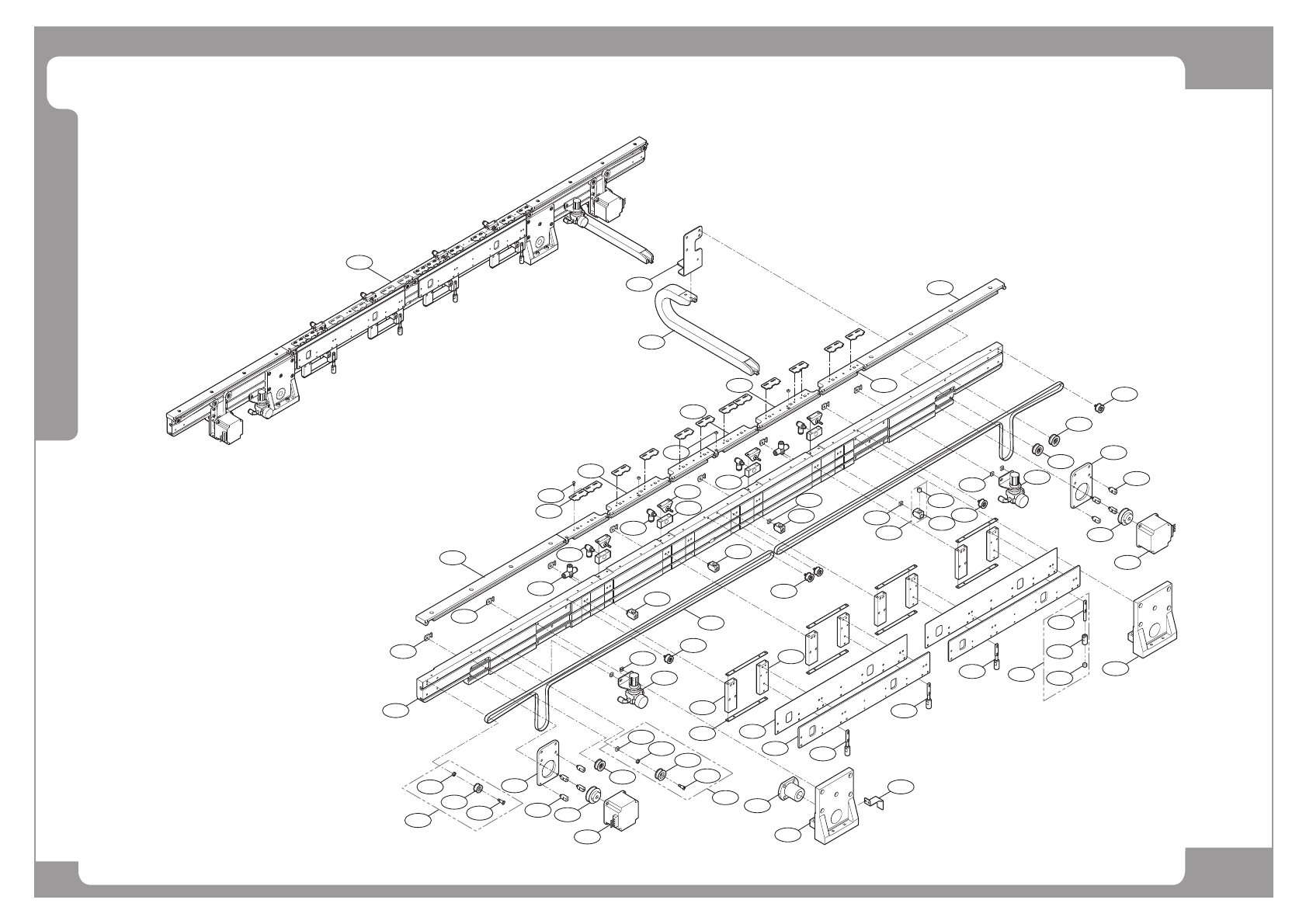

Conveyor Ass’y (1/5)
7
A
3
28
28
29
12
27
D
A
26
32
18
18
B
B
B
11
12
19
19
A
23
1
2
5
6
42
9
10
10
21
22
22
39
8
8
13
14
15
A
16
24
25
26
27
25
24
38
C
C
C
C
37
18
18
36
35
33
A
A
34
20
D
D
D
4
30
31
B
18
40
41
16
