Page HANWHA TECHWIN 91 SLM110S Cover Ass’y (1/3) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference A AM03-006688A ASSY , COVER-KEYBOARD_MO USE_ASSY 1 B J90834257A AP5 _OP001 OP_P ANEL_ASSY 1 C AM01-000489…
Page
HANWHA TECHWIN
90
SLM110S

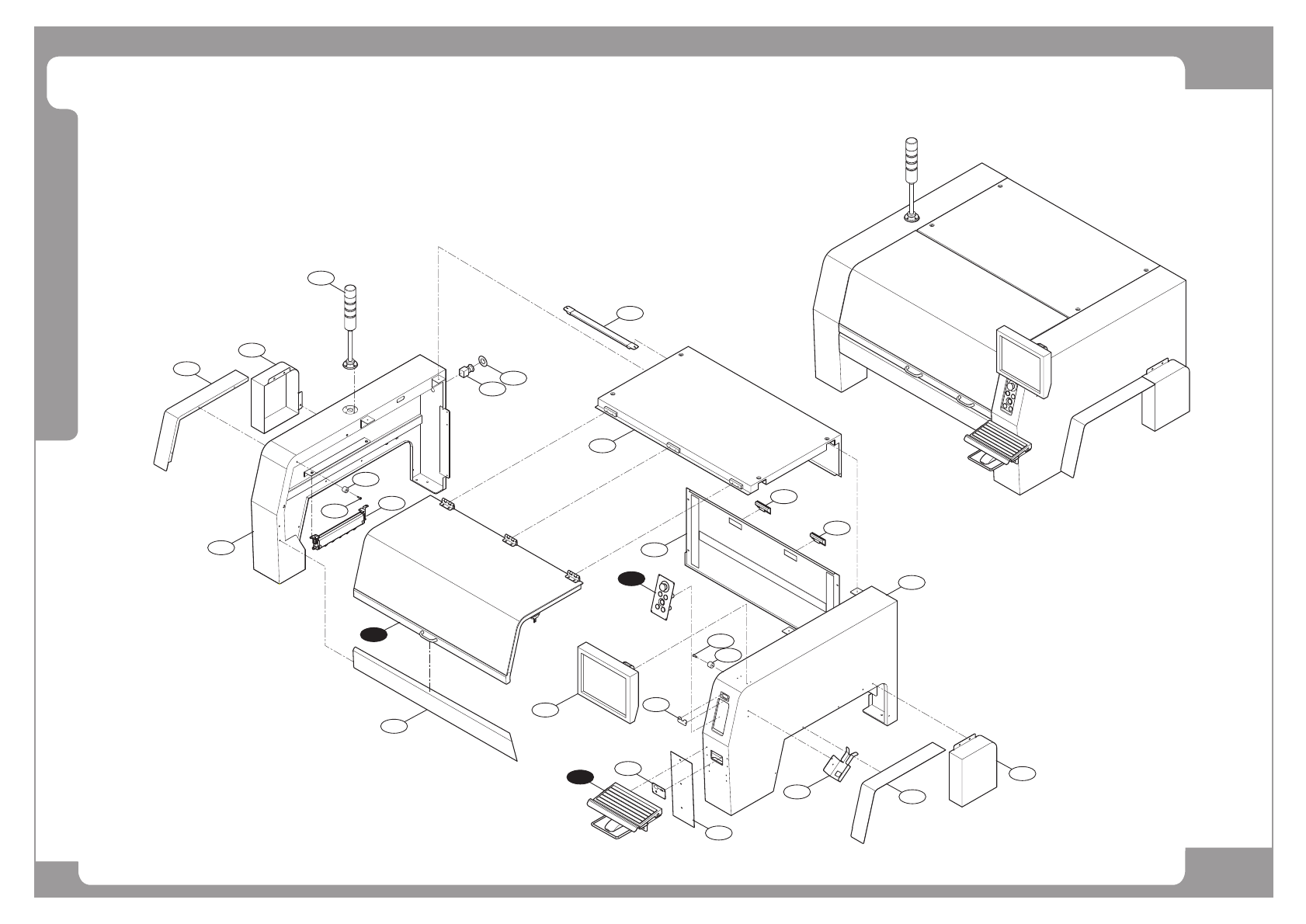

Cover Ass’y (1/3)
10
17
6
8
3
2
1
1
14
2
5
18
19
13
22
11
12
5
16
15
9
4
7
C
A
B
20
21
Page
HANWHA TECHWIN
91
SLM110S
Cover Ass’y (1/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-006688A ASSY,COVER-KEYBOARD_MOUSE_ASSY 1
B J90834257A AP5_OP001 OP_PANEL_ASSY 1
C AM01-000489B ASSY,COMMON-SLM_ACRYL_DOOR_ESD_ASSY 1
1 FC09-900008 PE-3 PE-3-1(KB) 2
2 J73520001B DOOR CUSHION [J73520001B] 2
3 J4713024A TOWER_LAMP 1
4 EP20-900127 EMERGENCY S/W[704.075.2] 1
5 FC18-901832 SHOULDER SCREW 2
6 J70521263A MONITOR_CABLE_COVER J70521263A 1
7 J70521709A AP5_COVER_SIDE_COVER 1
8 J70521702A AP5_COVER_MOTOR_CAP_R J70521702A 1
9 J70521701A AP5_COVER_MOTOR_CAP_L J70521701A 1
10 J70521700A AP5_CONV_SIDE_R J70521700A 1
11 J70521677A AP5_TOP_COVER_RE J70521677A 1
12 J70521676A AP5_COVER_SIDE_BACK_PLATE J70521676A 1
13 FC15-000481A COVER-LENS_COVER_SIDE_LEFT_RE 1
14 J70521671A AP5_COVER_SIDE_RIGHT_RE J70521671A 1
15 EP20-900127 EMERGENCY S/W[704.075.2] 1
16 PT03-900161A STICKER-EMERGENCY PT03-900161A 1
17 FC09-000891A BRACKET-LOWER_OP_PANEL-SM431 1
18 FC15-000048A COVER-AP5_PROTECT_BKT;ME1:Steel 1
19 EP19-900083 ELECTRIC_SWITCH 1
20 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1
21 1
22 FC15-000048A COVER-AP5_PROTECT_BKT;ME1:Steel 1
Page
HANWHA TECHWIN
92
SLM110S

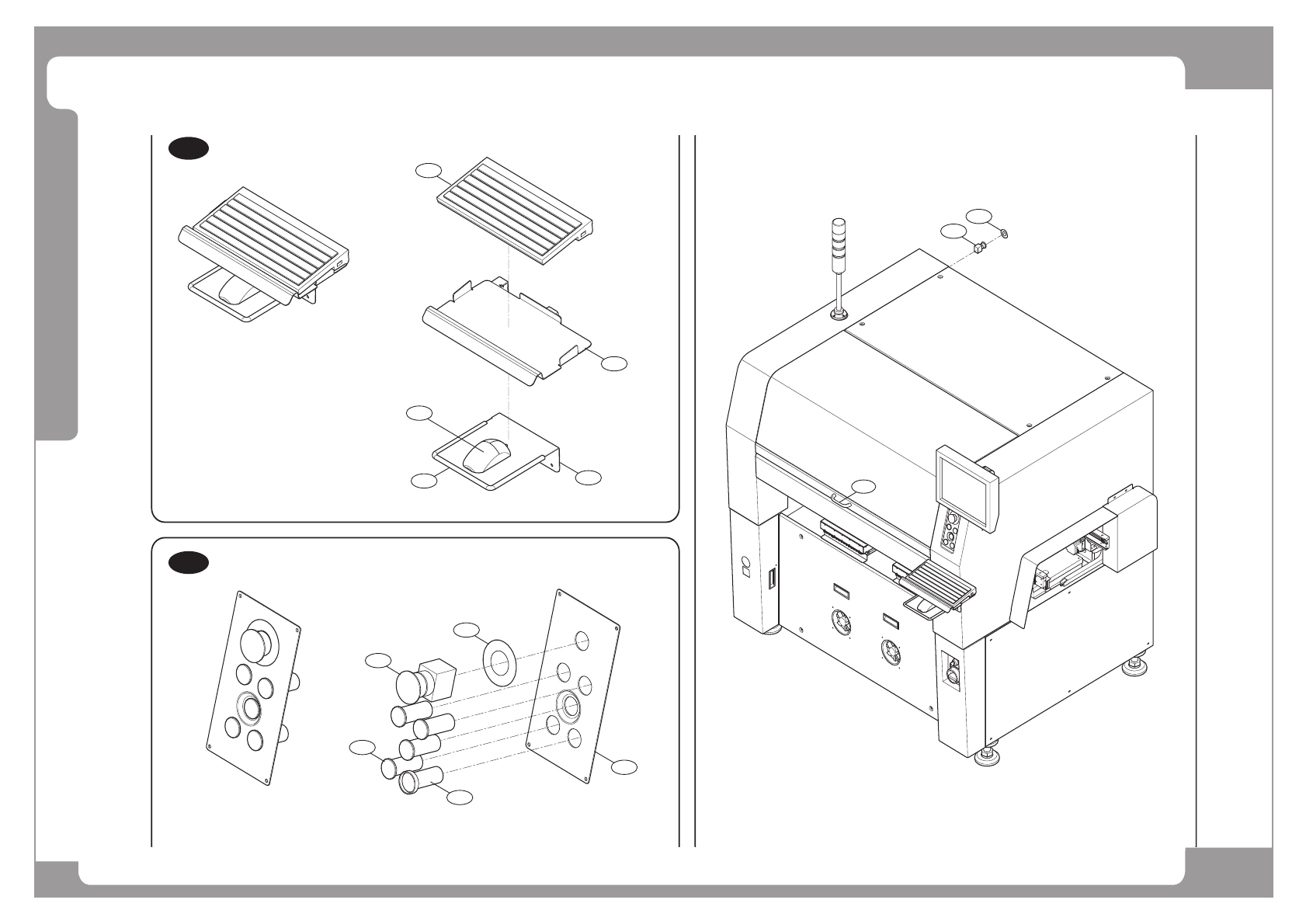

Cover Ass’y (2/3)
A-1
C-2
C-3
B-4
B-2
B-3
A-3
A-5
A-2
A-4
B-1
B-5
A
B
C-3
