Page HANWHA TECHWIN 81 SLM110S Air Ass’y (6/6) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference A J90581025A SM43 1_MANIFOLD_ASSY 1 B HP14-900026 SOLENOID V AL VE [K180-4E1-21-DC24 V] 2 CS O L E N O I D …
Page
HANWHA TECHWIN
80
SLM110S

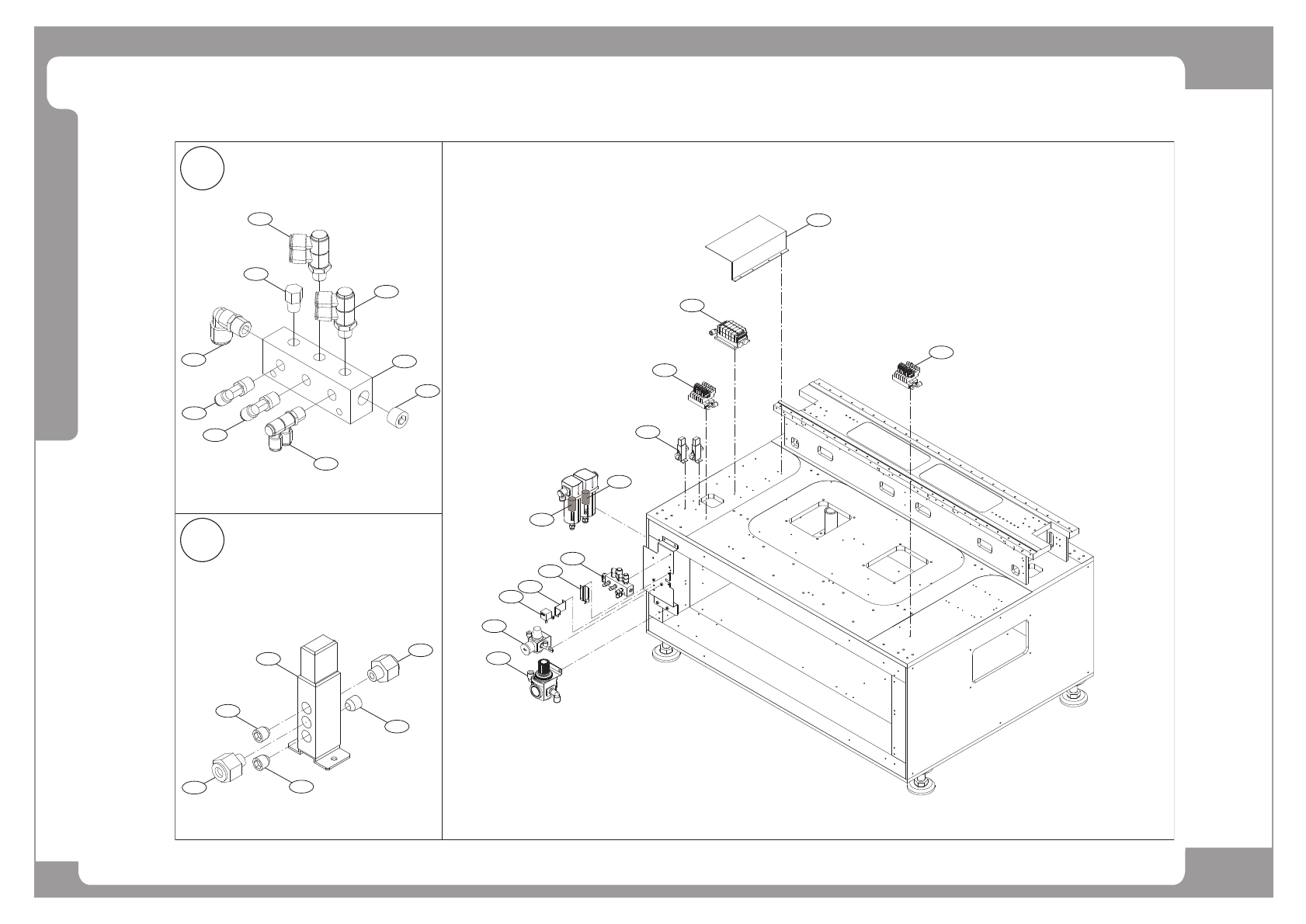

Air Ass’y (6/6)
Gi
A
B
9
8
12
13
14
15
11
11
17
10
16
18
18
18
17
3
19
4
2
A
5
6
7
B
C
D
1
20
Page
HANWHA TECHWIN
81
SLM110S
Air Ass’y (6/6)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A J90581025A SM431_MANIFOLD_ASSY 1
B HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 2
CSOLENOID_VALVE 2
D HP09-000002 AIR SUPPLY UNIT-VACUUM GENERATOR 1
1 HP04-900024 ELEMENT_SEPARATOR PFH4000-0005A-6083 1
2 HP09-900132 REGULATOR PR4-04B 1
3 J70791243A COVER_VAC_GEN J70791243A 1
4 HP09-900118 REGULATOR HP09-900118 1
5 J70521670A MAGNETIC_CATCHE_BAR_L J70521670A 1
6 J70521639A PRESSURE_GAUGE_BKT J70521639A 1
7 TE07-900092 PRESSURE_SENSOR PSA-1(RC1/8) 1
8 HP06-900163 DOUBLE UNIVERSAL ELBOW 1
9 FC14-900637 PLUG 1
10 HP06-900290 MALE ELBOW 1
11 HP06-900047 ELBOW FITTING 2
12 HP06-900081 DOUBLE UNIVERSAL ELBOW 1
13 FC14-900722 PLUG 1
14 J2100009 MANIFOLD 1
15 HP06-900082 DOUBLE UNIVERSAL ELBOW 1
16 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1
17 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 2
18 FC14-900724 PLUG [PT 1/8] 3
19 1
20 HP04-900025 ELEMENT_AIR TAF4000-05-6000 1
Page
HANWHA TECHWIN
82
SLM110S
Moving Frame Ass’y (1/2)
6
14
14
18
16
5
13
7
15
17
9
3
2
10
12
1
8
4
11
19
A
