Page HANWHA TECHWIN 150 SLM110S Motor IF Board Interface (4/4) ^4` ^5` ^6` ^7` ^8` ^9` AM03-004764A AP5_MD075
Page
HANWHA TECHWIN
149
SLM110S
Motor IF Board Interface (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004770A CABLE ASSY-LEFT_R4_MOTOR 1
2 J90834363A HEAD_R4_HOME_CABLE_ASSY AP5_MD073 1
3 J90834229A R3_MOTOR_CABLE_ASSY AP5_MD043 1
4 AM03-004767A CABLE ASSY-LEFT_Z5_MOTOR 1
5 J90834358A HEAD_Z5_HOME_SENSOR_CABLE_ASSY AP5_MD068 1
6 AM03-004766A CABLE ASSY-LEFT_Z4_MOTOR 1
7 J90834357A HEAD_Z4_HOME_SENSOR_CABLE_ASSY AP5_MD067 1
8 J90834220A Z3_MOTOR_CABLE_ASSY AP5_MD034 1
9 AM03-004765A CABLE ASSY-LEFT_Z2_MOTOR 1
10 J90834347A HEAD_Z2_HOME_SENSOR_CABLE_ASSY AP5_MD065 1
Page
HANWHA TECHWIN
150
SLM110S

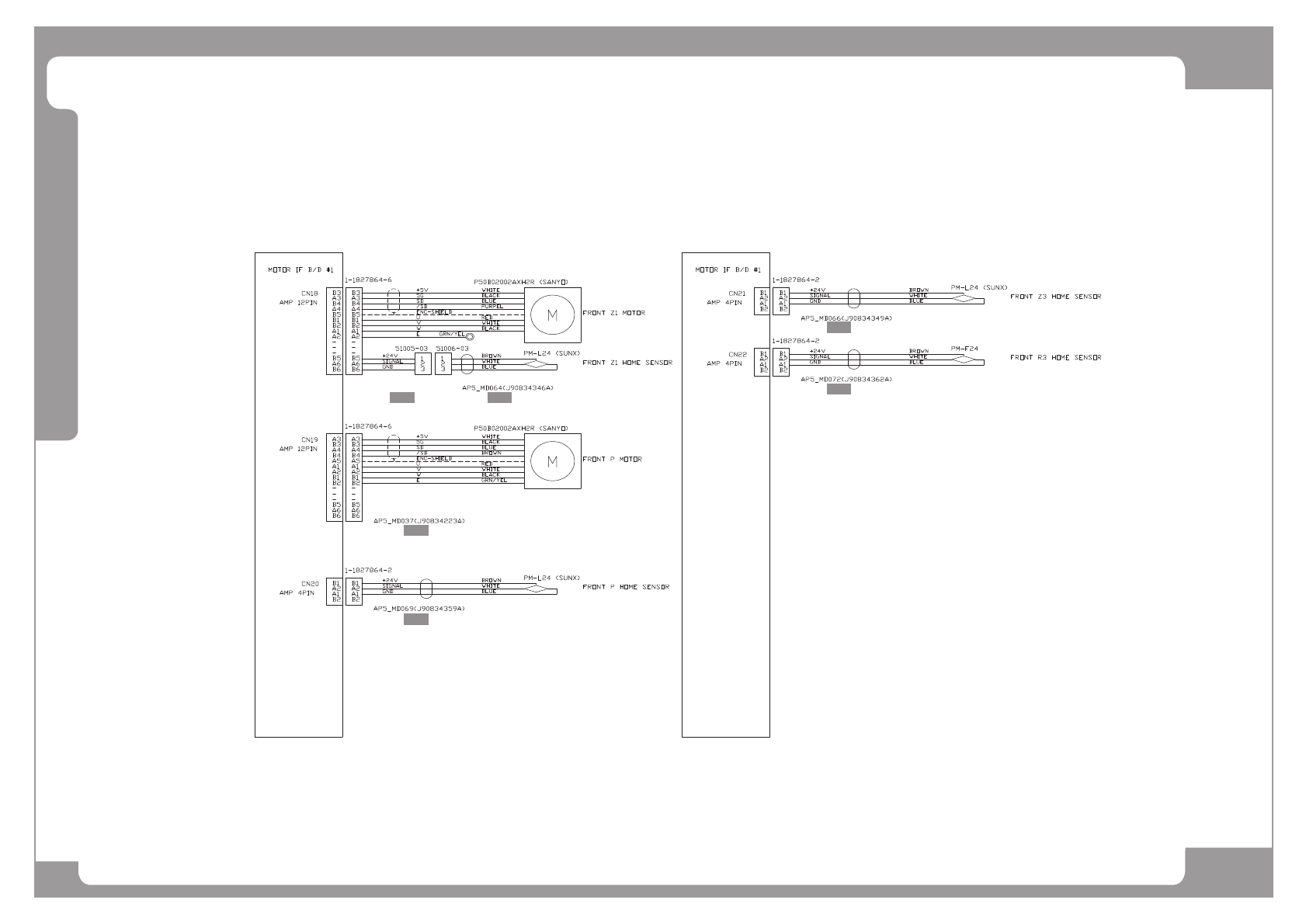

Motor IF Board Interface (4/4)
^4`
^5`
^6`
^7`
^8`
^9`
AM03-004764AAP5_MD075
Page
HANWHA TECHWIN
151
SLM110S
Motor IF Board Interface (4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004764A CABLE ASSY-LEFT_Z1_MOTOR 1
2 J90834346A HEAD_Z1_HOME_SENSOR_CABLE_ASSY AP5_MD064 1
3 J90834223A P_MOTOR_CABLE_ASSY AP5_MD037 1
4 J90834359A HEAD_P_HOME_CABLE_ASSY AP5_MD069 1
5 J90834349A HEAD_Z3_HOME_SENSOR_CABLE_ASSY AP5_MD066 1
6 J90834362A HEAD_R3_HOME_CABLE_ASSY AP5_MD072 1
