Page HANWHA TECHWIN 151 SLM110S Motor IF Board Interface (4/4) NO. Lev . P A RT NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-00476 4A CABLE ASSY -LEFT_ Z1_MOTOR 1 2 J90834346A HEAD_Z 1_HOME_SENSOR_…
Page
HANWHA TECHWIN
150
SLM110S
Motor IF Board Interface (4/4)
^4`
^5`
^6`
^7`
^8`
^9`
AM03-004764AAP5_MD075
Page
HANWHA TECHWIN
151
SLM110S
Motor IF Board Interface (4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004764A CABLE ASSY-LEFT_Z1_MOTOR 1
2 J90834346A HEAD_Z1_HOME_SENSOR_CABLE_ASSY AP5_MD064 1
3 J90834223A P_MOTOR_CABLE_ASSY AP5_MD037 1
4 J90834359A HEAD_P_HOME_CABLE_ASSY AP5_MD069 1
5 J90834349A HEAD_Z3_HOME_SENSOR_CABLE_ASSY AP5_MD066 1
6 J90834362A HEAD_R3_HOME_CABLE_ASSY AP5_MD072 1
Page
HANWHA TECHWIN
152
SLM110S

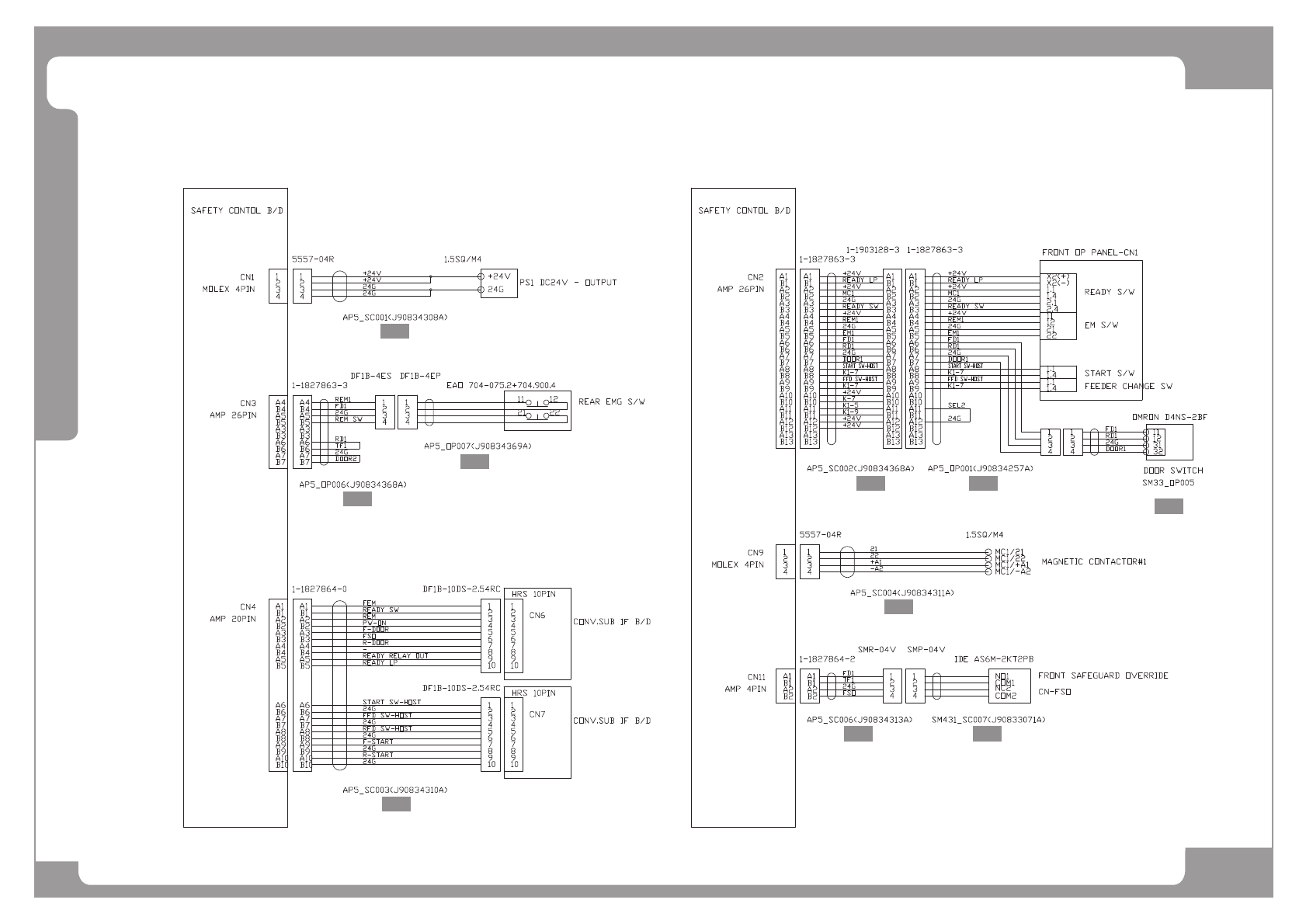

Safety Interlock Interface (1/2)
^4`
^5`
^6`
^7`
^:`
^8`
^;` ^<`
^6`
^9`
J90834261A
