Page HANWHA TECHWIN 17 SLM110S Conveyor Ass’y (3/5) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference
Page
HANWHA TECHWIN
16

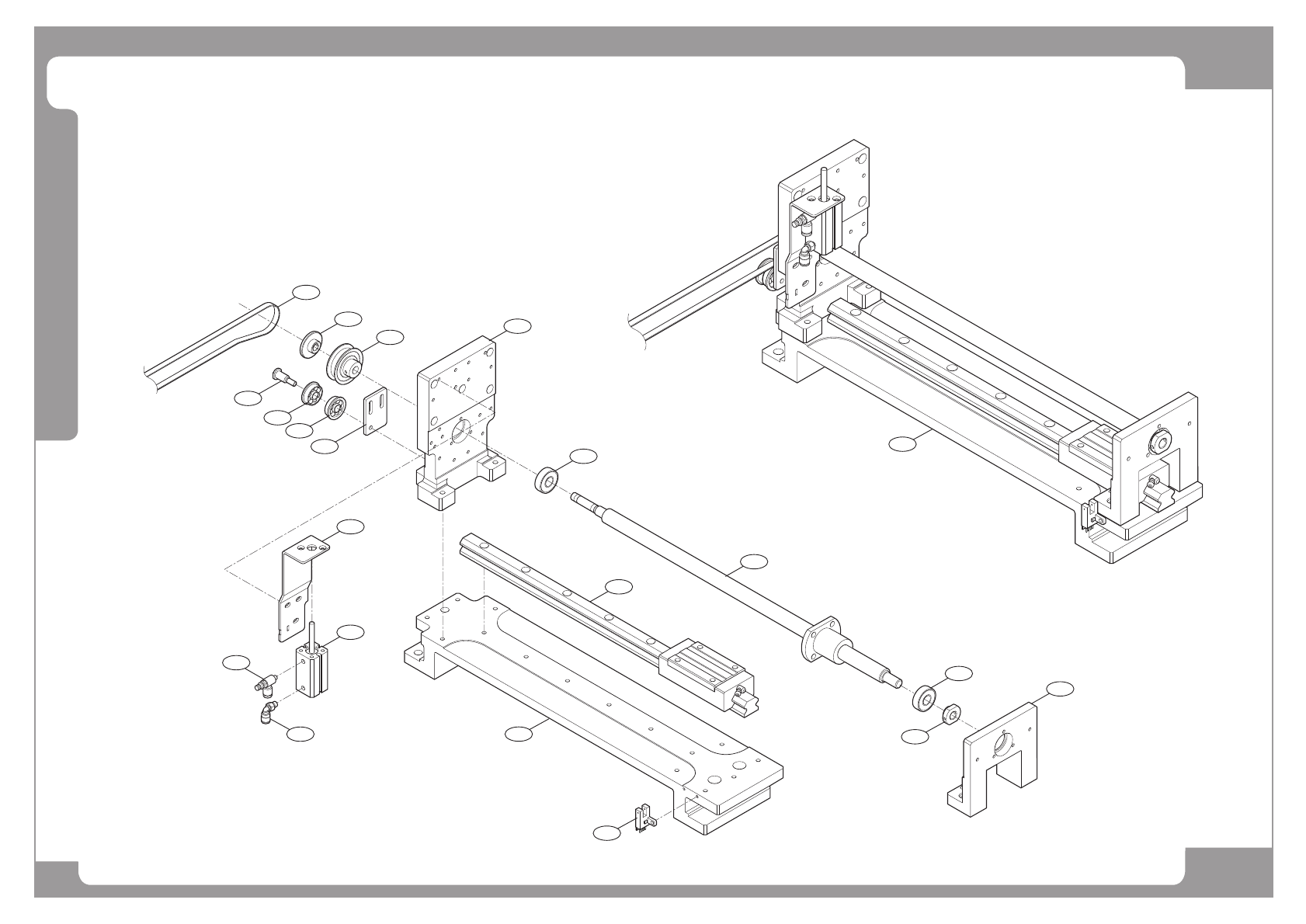

SLM110S
Conveyor Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
27 FC18-902629 BUTTON HEAD SOCKET SCREW M3*8 (NI/ZN) 28
28 J70531995A AP5-04-CLAMP_PLATE_NEW J70531995A 1
29 J7153373A FIDUCIAL DISK[J7153373A] 3
30 FC30-001099A PLATE-PLATE-PCB_CLAMPING_EXT 14
31 J71531377A CLAMP_STOPPER 4
32 J7253008B STOPPER 4
33 J70531996A CLAMP_PLATE-SPRING_NEW 8
34 J71531374A AP5-04-CLAMP_PLATE_F_NEW J71531374A 4
35 J71531375A AP5-04-CLAMP_PLATE_M_NEW J71531375A 4
36 J70531997A AP5-04-CLAMP_SHAFT J70531997A 4
37 J70531992A AP5-04-ADJUST_SHAFT J70531992A 4
38 J71531376A AP5-04-CLAMP_PLATE_RIB_NEW J71531376A 2
39 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 4
40 J90834114A 1ST_WORK_PCB_SEN_CABLE_ASSY AP5_CS004 1
41 J7253008B STOPPER[J7253008B] 4
42 FC09-000397C FEEDER_UNLOCK_SENS 2 FC09-000397A/ FC09-000397B
Page
HANWHA TECHWIN
17
SLM110S
Conveyor Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
18
SLM110S
