Page HANWHA TECHWIN 12 SLM110S Conveyor Ass’y (2/5) 2 3 4 1 9 7 1 2 CONVEYOR 170mm OPTION 8 2 1 10 3 1 4 2 5 2 1 6 5 6 1 2 CONVEYOR 310mm OPTION (ONL Y LR) RL1 RL2 LR1 LR2 LR1 LR2 LR1 LR2 LR1 LR2 CONVEYOR 310mm OPTION (O…
Page
HANWHA TECHWIN
11
SLM110S
Conveyor Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
12
SLM110S

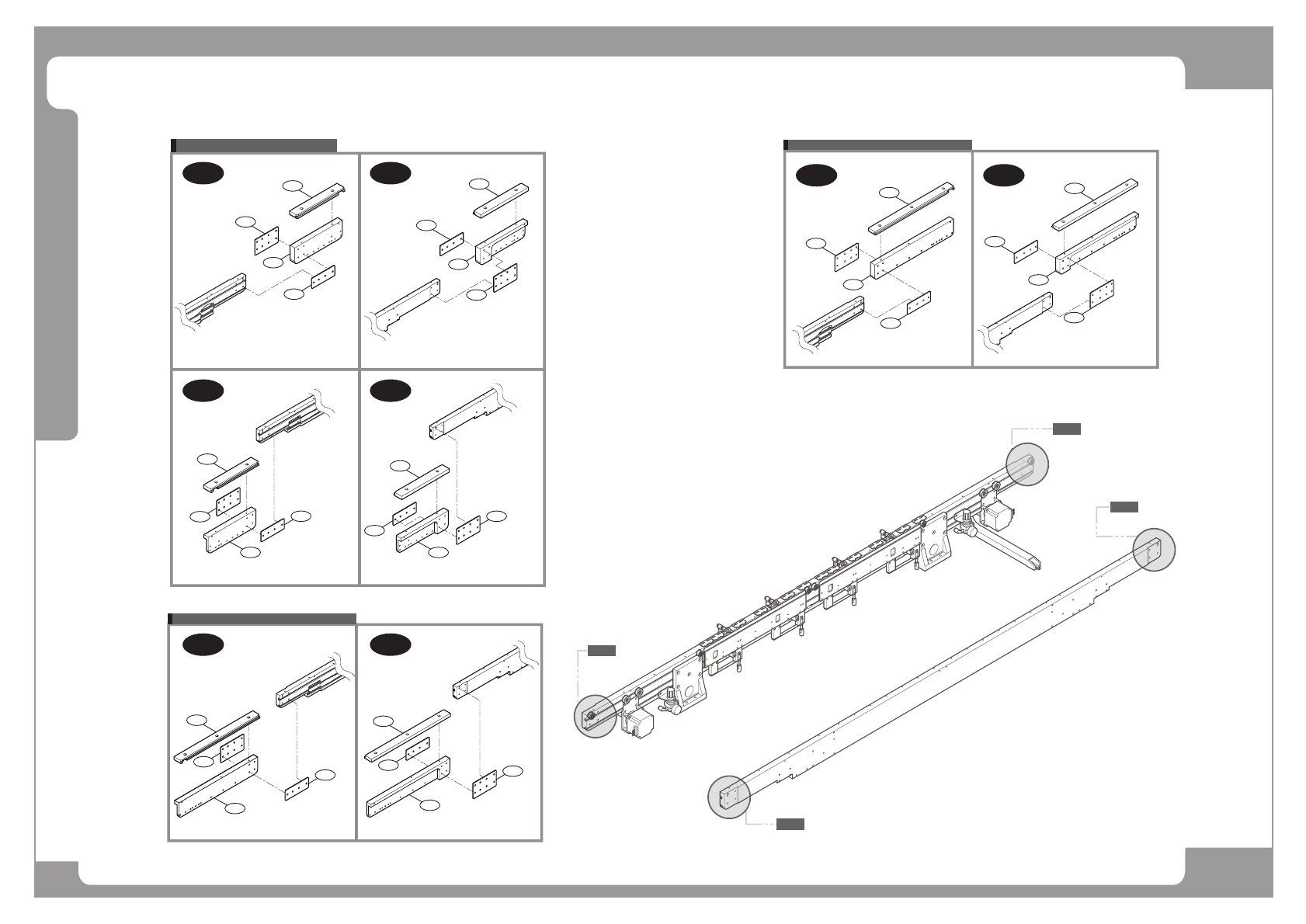

Conveyor Ass’y (2/5)
2
3
4
1
9
7
1
2
CONVEYOR 170mm OPTION
8
2
1
10
3
1
4
2
5
2
1
6
5
6
1
2
CONVEYOR 310mm OPTION (ONLY LR)
RL1
RL2
LR1
LR2
LR1 LR2
LR1 LR2
LR1 LR2
CONVEYOR 310mm OPTION (ONLY RL)
RL1 RL2
2
1
10
8
1
2
7
9
Page
HANWHA TECHWIN
13
SLM110S
Conveyor Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70531091A PLATE_LONG_OUT J70531091A 4 (170mm QTY:4EA) (310mm QTY:2EA)
2 J70531090A PLATE_LONG_IN J70531090A 4 (170mm QTY:4EA) (310mm QTY:2EA)
3 J70531051B EXTENSION GUIDE 1 2
4 J71531052B EXTENSION GUIDE 2 2
5 FC30-000322A EXTEND RAIL 1 2
6 FC30-000323A EXTEND RAIL 2 2
7 FC30-000376A PLATE-EXTENSION_GUIDE_2_310MM 1
8 FC30-000375A PLATE-EXTENSION_GUIDE_1_310MM 1
9 FC30-000373A PLATE-EXTEND_RAIL_1_310MM 1
10 FC30-000374A PLATE-EXTEND_RAIL_2_310MM 1
