Page HANWHA TECHWIN 145 SLM110S Motor IF Board Interface (1/4) NO. Lev . P A RT NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90831826A REAR_DOOR_SENSOR_CABL E_ASSY 2 2 AM03-013461 B HEAD_MOT OR_IF_BD_1…
Page
HANWHA TECHWIN
144
SLM110S

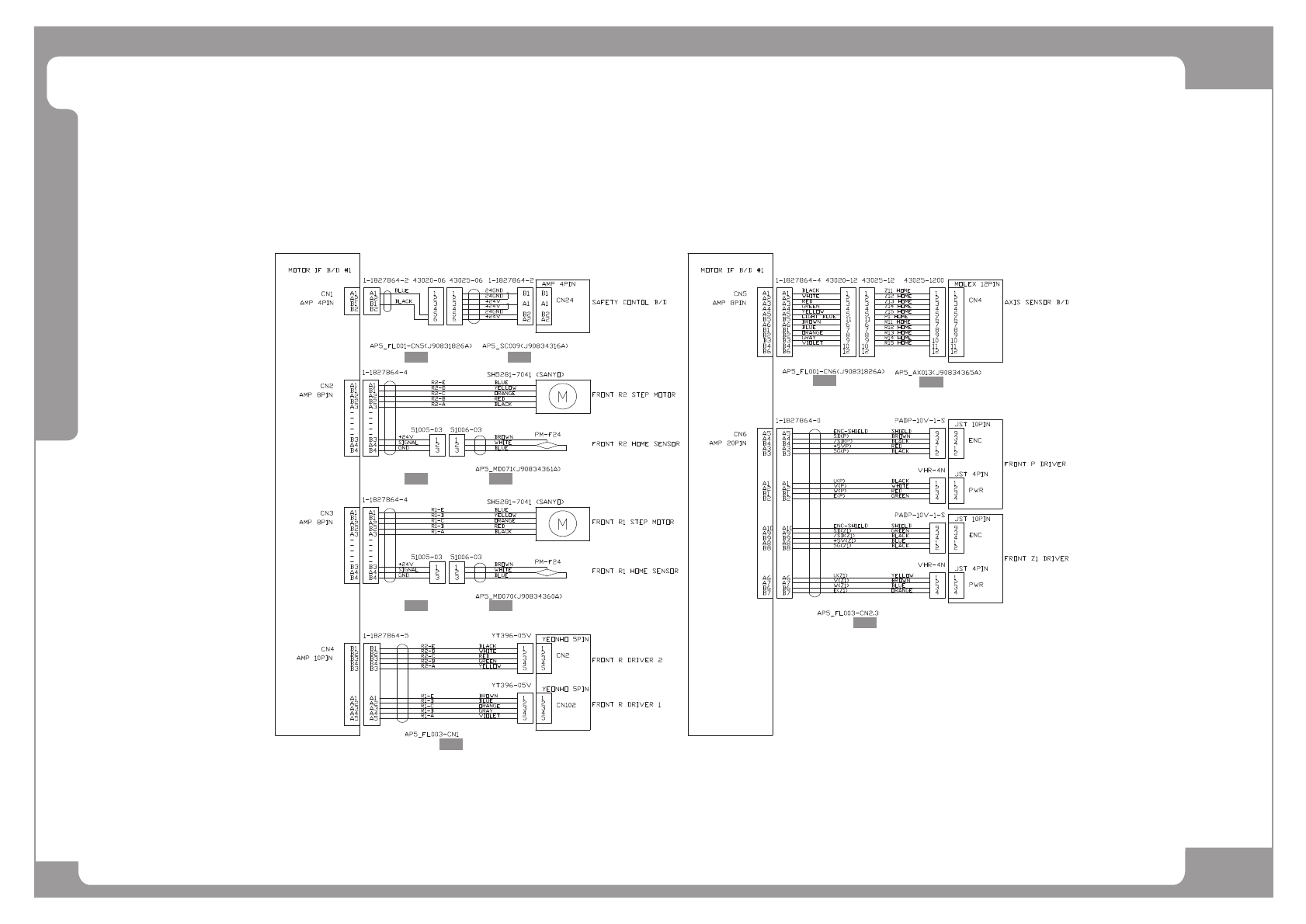

Motor IF Board Interface (1/4)
^4` ^5`
^6` ^7`
^:`
^8`
^4`
^;`
^9`
^:`
AM03-004769AAP5_MD080
AM03-004768AAP5_MD079
AM03-004789A
AM03-004789A
Page
HANWHA TECHWIN
145
SLM110S
Motor IF Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90831826A REAR_DOOR_SENSOR_CABLE_ASSY 2
2 AM03-013461B HEAD_MOTOR_IF_BD_1_PW_CABLE_ASSY
AP5_SC0
1 J90834316A/AM03-013461A
3 AM03-004769A CABLE ASSY-LEFT_R2_MOTOR 1
4 J90834361A HEAD_R2_HOME_CABLE_ASSY AP5_MD071 1
5 AM03-004768A CABLE ASSY-LEFT_R1_MOTOR 1
6 J90834360A HEAD_R1_HOME_CABLE_ASSY AP5_MD070 1
7 AM03-004789A CABLE ASSY-FL003_FLAT_CABLE_ASSY 2
8 AM03-013469A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013 1 J90834365A
Page
HANWHA TECHWIN
146
SLM110S

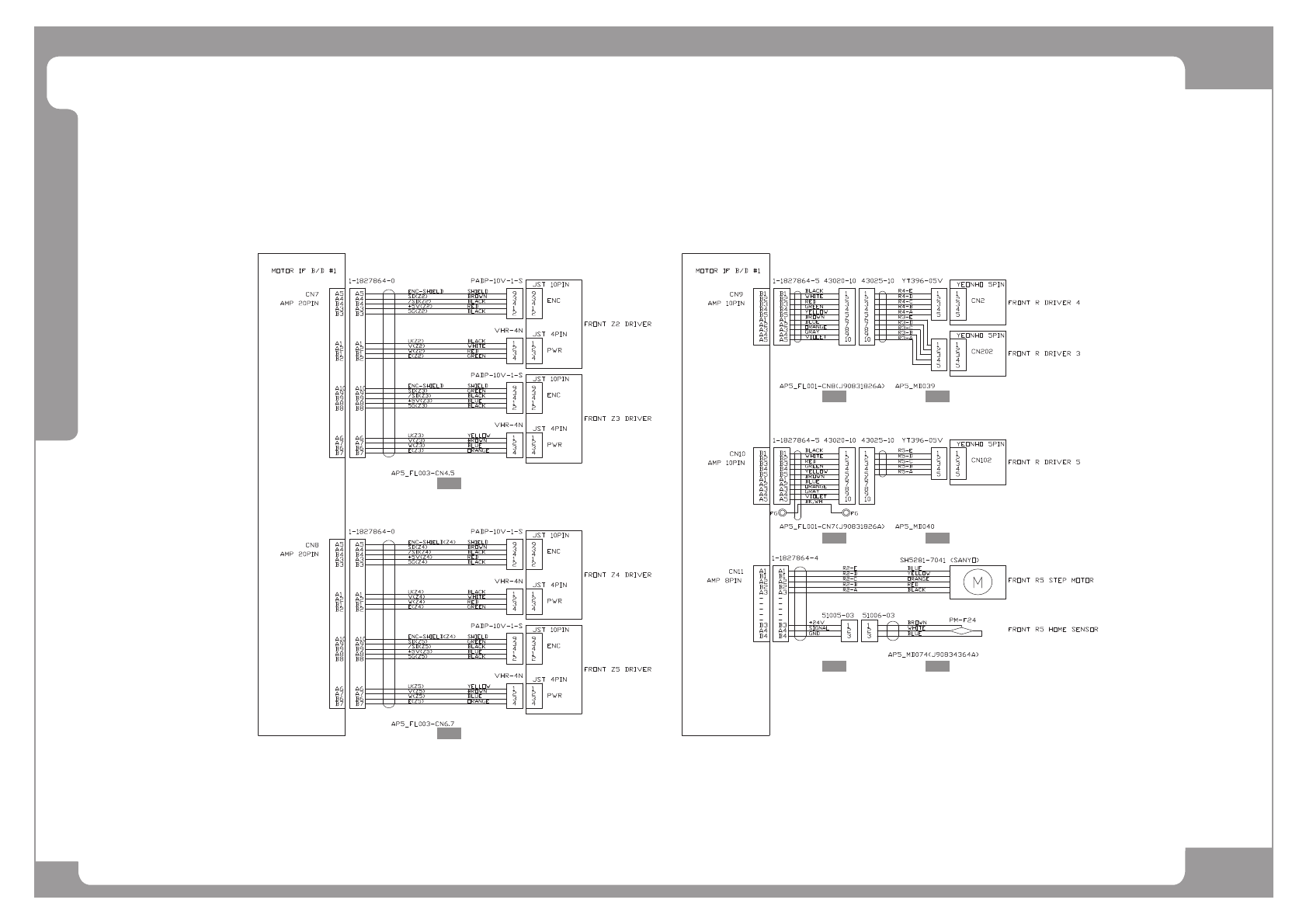

Motor IF Board Interface (2/4)
^4`
^4`
^5` ^6`
^5` ^7`
^8` ^9`
AM03-004789A
AM03-004789A
AM03-004784A
AM03-004783A
AM03-004771AAP5_MD082
