Page HANWHA TECHWIN 129 SLM110S Axis Sensor Board Interface (1/2) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Su pply Supply L T Reference 1 J90834082A AXIS_SEN_ BD_PW_CABLE _ASSY AP5_A X001 1 2 AM03-013463 B GAN…
Page
HANWHA TECHWIN
128
SLM110S
Axis Sensor Board Interface (1/2)
^4`
^5`
^7`
^6`
^8`
^9`
^:`
^6`
^;`
^6`
^<`
J90611876A
J90834365A
Page
HANWHA TECHWIN
129
SLM110S
Axis Sensor Board Interface (1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834082A AXIS_SEN_BD_PW_CABLE_ASSY AP5_AX001 1
2 AM03-013463B GANTRY_Y_SEN_FL_BRK_CABLE_ASSY 1 J90834083A/AM03-013463A
3 AM03-004236A CABLE ASSY-FLAT_CABLE [AP5_FL001] 3
4 J90834104A GANTRY_2_Y2_SEN_CABLE_ASSY AP5_AX009 1
5 AM03-013465A GANTRY_X_SEN_FL_BRK_CABLE_ASSY 1
6 J90834106A GANTRY_2_X2_SEN_CABLE_ASSY AP5_AX011 1
7 J90834365A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013 1 J90834365A
8 J90834366A HEAD_2_HOME_SEN_CABLE_ASSY AP5_AX014 1
9 J90834094A FRONT_AXIS_SENSOR_CABLE_ASSY AP5_AX004 1
Page
HANWHA TECHWIN
130
SLM110S

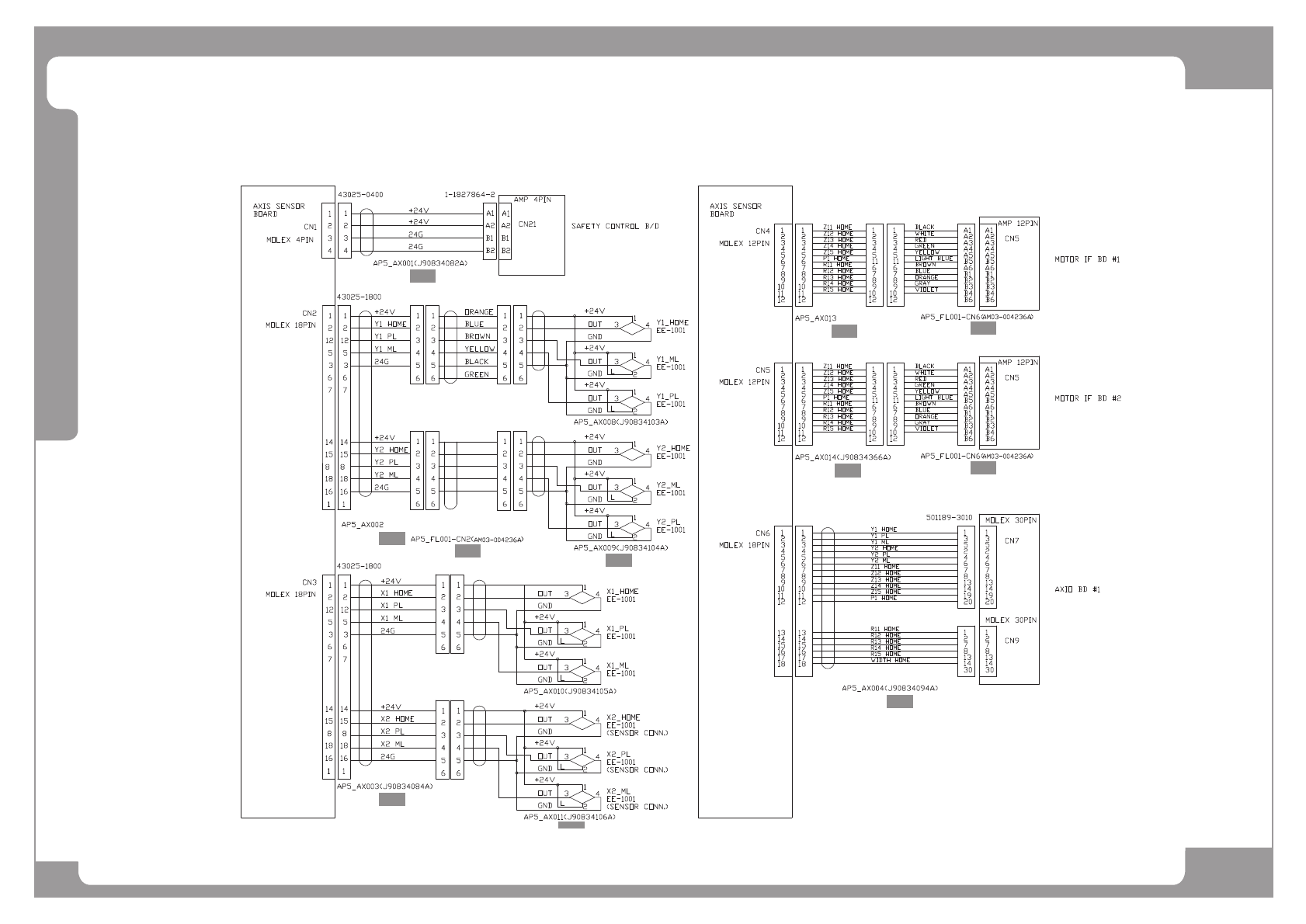

Axis Sensor Board Interface (2/2)
^4`
^5`
^7`
^6`
^8`
^9`
^:`
AM03-000170AAP5_CS036
