Page HANWHA TECHWIN 104 SLM110S Electric Device Ass’y (1/2) 10 6 1 17 13 14 9 19 8 11 2 12 15 16 3 5 4 7
Page
HANWHA TECHWIN
103
SLM110S
Electric Panel Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
104
SLM110S

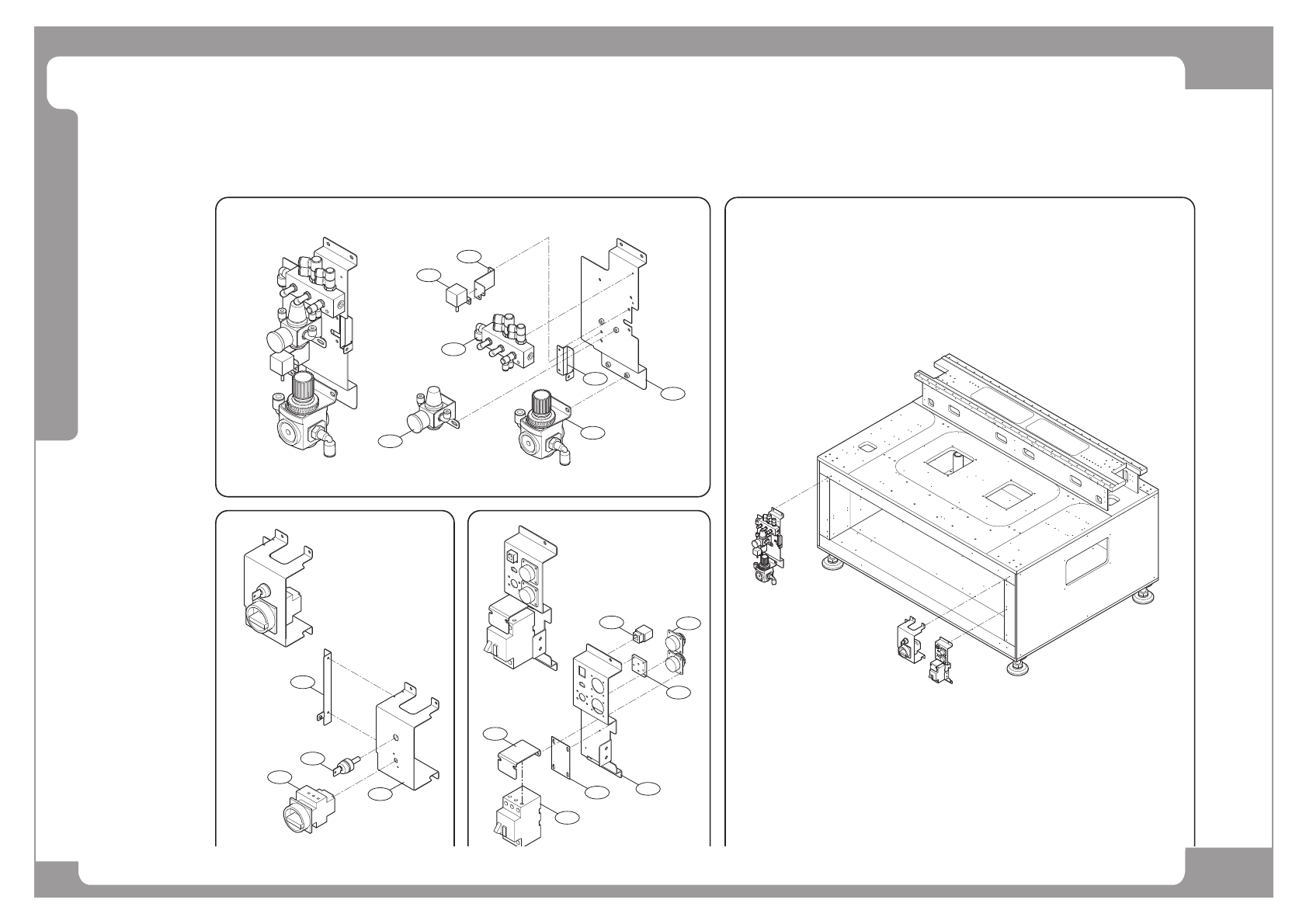

Electric Device Ass’y (1/2)
10
6
1
17
13
14
9
19
8
11
2
12
15
16
3
5
4
7
Page
HANWHA TECHWIN
105
SLM110S
Electric Device Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J72521004A ELEC_ACRYL J72521004A 1
2 J70521636A POWER_PANEL_F J70521636A 1
3 J70521637A POWER_PANEL_R J70521637A 1
4 FC09-002534A BRACKET-MAIN_AIR_PANEL_2_110S;SPCC 1
5 J7152027A GROUND TERMINAL [J7152027A] 1
6 FC09-001079A BRACKET-MAGNETIC_CATCHE_BAR 1
7 J70521670A MAGNETIC_CATCHE_BAR_L J70521670A 1
8 HP14-000246 VALVE-MANIFOLD_ASSY 1
9 J70521639A PRESSURE_GAUGE_BKT J70521639A 1
10 TE07-900092 PRESSURE_SENSOR PSA-1(RC1/8) 1
11 HP09-900118 REGULATOR HP09-900118 1
12 HP09-900132 REGULATOR PR4-04B 1
13 EP20-900133 KEYLOCK SWITCH[AS6M-2KT2PB] 1
14 EP20-900103 LOAD SWITCH 1
15 EP07-900027 MAIN CIRCUIT BREAKER[GV2-ME20] 1
16 EP21-900008 PANEL[GV2-AF02] 1
17 EP05-900721 CONNECTOR[555376-1] 1
18 J7152027A GROUND TERMINAL [J7152027A] 1
19 J90834151A INLINE_IN_OUT_CABLE_ASSY AP5_CV007 2
