Page HANWHA TECHWIN 35 SLM110S FLASH Backup Block Ass’y NO. P ART NO. P ART NAME Q'TY Old No. Sto ck Apply Reference A BACKUP_ BLOCK_ASSY 1 1 FC07-000285A BLOCK-BACKUP_T OP_ALIGN_4139S 1 2 FC07-000284A BLOCK-BACKUP_…
Page
HANWHA TECHWIN
34
SLM110S

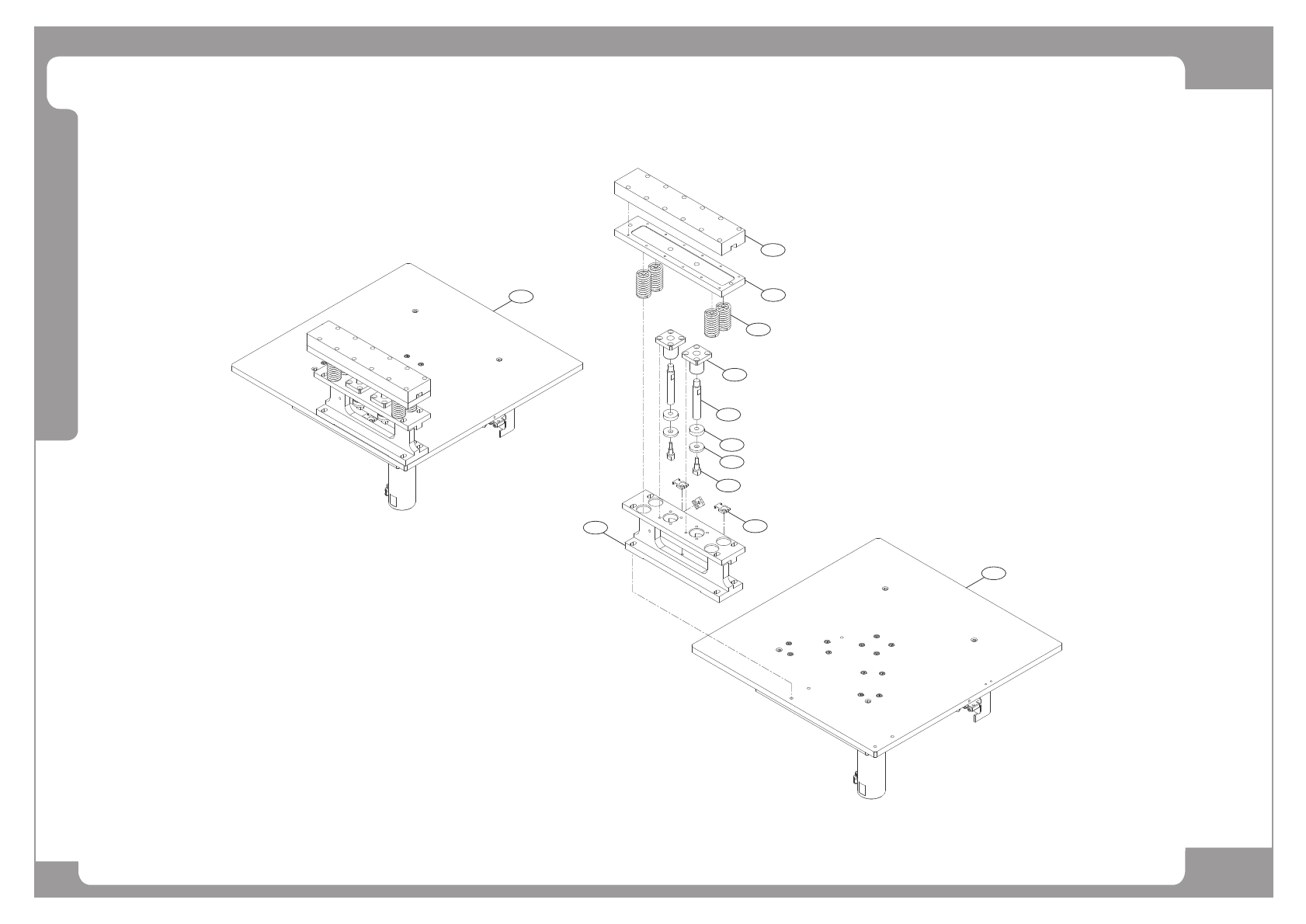

FLASH Backup Block Ass’y
9
4
A
11
3
2
1
5
6
7
8
10
Page
HANWHA TECHWIN
35
SLM110S
FLASH Backup Block Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A BACKUP_BLOCK_ASSY 1
1 FC07-000285A BLOCK-BACKUP_TOP_ALIGN_4139S 1
2 FC07-000284A BLOCK-BACKUP_BOTTOM_ALIGN_4139S 1
3 FC38-000046 SPRING-COIL 4
4 MC06-000013 BUSHING 2
5 MC19-000141A SHAFT-BUSHING 2
6 FC10-000008 CUSHION,RUBBER-WASHER 2
7 FC30-000372A PLATE-BACKUP_CUSHION 2
8 FC18-000271A BOLT-BACKUP_CUSHION 2
9 FC09-000692A BRACKET-BACKUP_ALIGN 1
10 FC18-903195 PROFILE MOUNT [DIA4.0] 3
11 AM03-000520A ASSY,CONVEYOR-BUT_LR_ASSY 1
Page
HANWHA TECHWIN
36
SLM110S

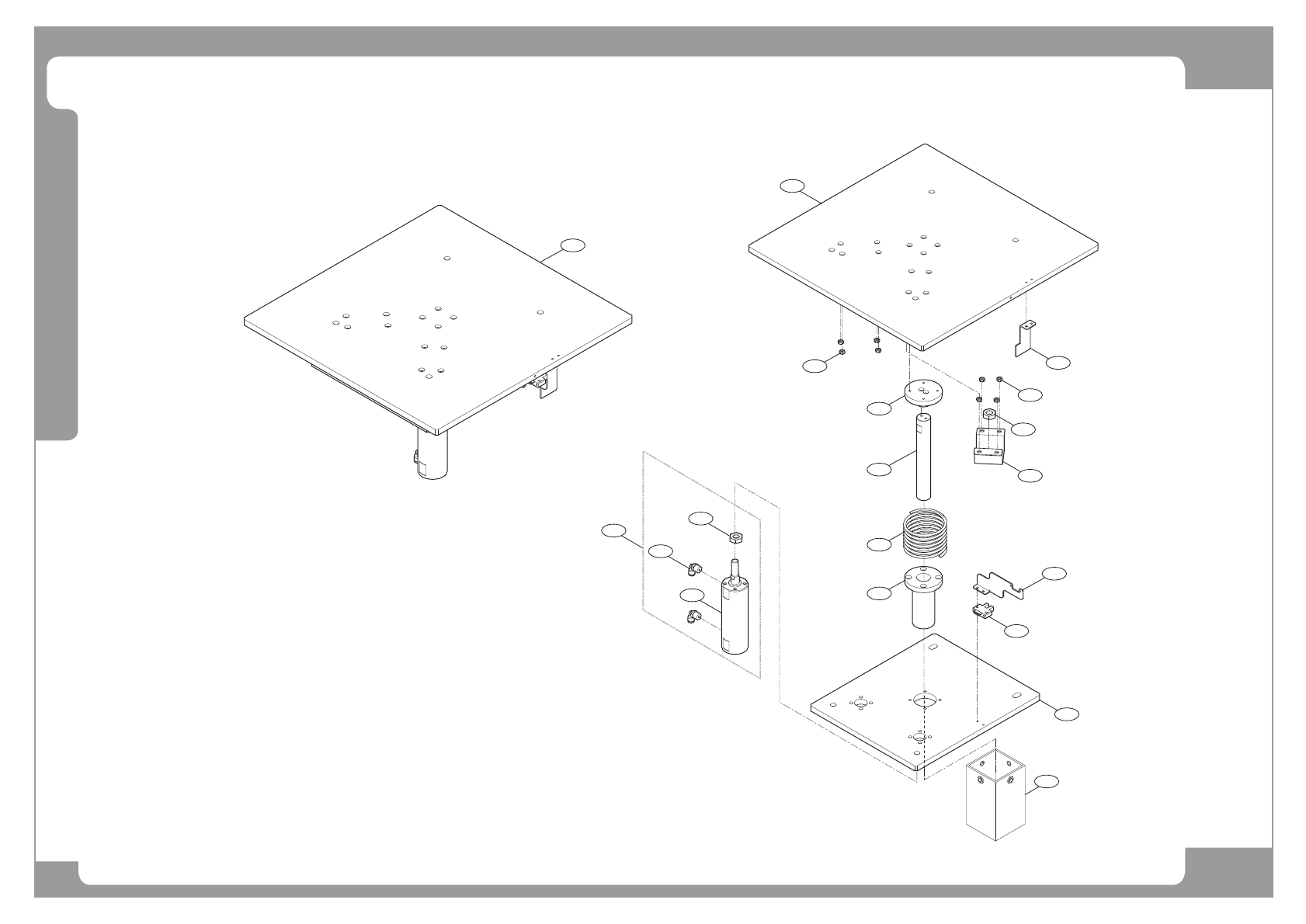

Backup Table Ass’y
14
5
3
16
13
15
2
A
6
11
4
9
7
10
9
15
8
12
1
