19
PCB Conveyor
Technical Data
PCB formats
Single conveyor Flexible dual
conveyor
Dual conveyor in
Single conveyor mode
Maximum dimensions
(length x width) 610 x 535 mm²
a
610 x 250 mm²
a
610 x 450 mm²
a
Standard dimensions
(length x width)
50 x 50 mm² to
450 x 535 mm²
b
50 x 50 mm² to
450 x 250 mm²
50 x 50 mm² to
450 x 450 mm²
Long board option 50 x 80 mm² to
610 x 535 mm²
50 x 80 mm² to
610 x 250 mm²
50 x 80 mm² to
610 x 450 mm²
PCB thickness Standard 0.3 mm to 4.5 mm (± 0.2 mm) (others available on request)
PCB warpage see page 23
PCB weight max. 3 kg
Clearance on PCB under-
side
25 mm ± 0.2 mm (standard)
PCB transport height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (option)
930 mm ± 15 mm (option)
950 mm ± 15 mm (SMEMA option)
Type of interface SMEMA / Siemens
Component-free PCB han-
dling edge
3 mm
PCB changeover time < 2.5 s
PCB positioning accuracy ± 0.5 mm
Flexible dual conveyor Conveyor mode: synchronous or asynchronous (selected via the soft-
ware)
Components to be placed on each conveyor track: same or different
PCB width on each conveyor track: same or different
Single conveyor Dual conveyor
synchronous
Dual conveyor
asynchronous
Bad fiducial detection standard Standard (no global
ink spot)
standard
Automatic electrical width
adjustment
standard standard standard
a) Long board option and Wide board configuration.
b) With PCB widths > 450 mm make sure that the peripheral modules are also able to process these
widths.
20
PCB Conveyor

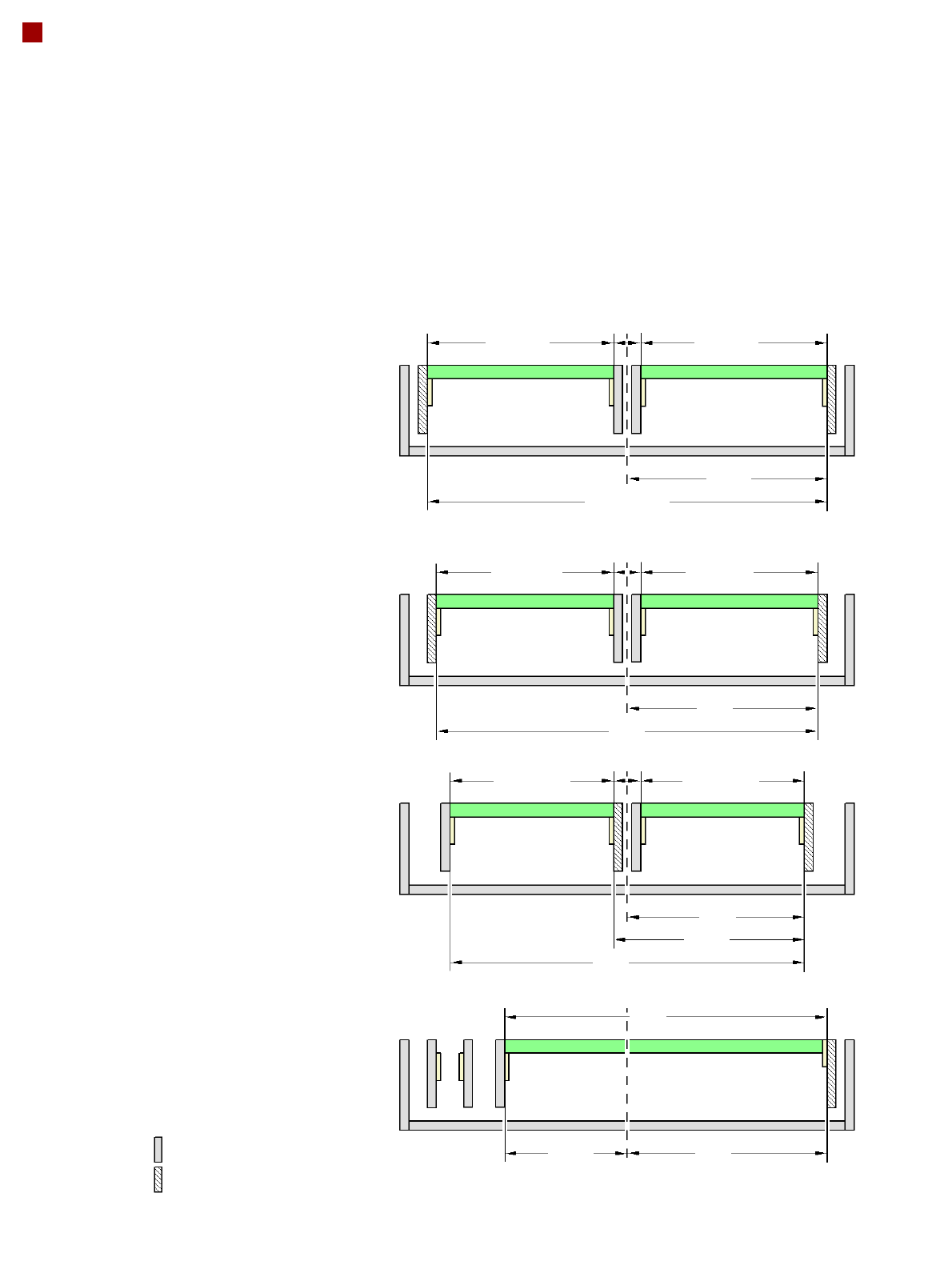

Conveyor Widths of the Flexible Dual Conveyor
Distance between outer con-
veyor edges: 535 mm, 2 tracks,
stationary outer conveyor edge
Distance between outer con-
veyor edges: 508 mm, 2 tracks,
stationary outer conveyor edge
Distance between outer con-
veyor edges: 468 mm, 2 tracks,
right conveyor edges are
stationary
a
Distance between outer con-
veyor edges: 535 mm, dual con-
veyor in Single conveyor mode,
right conveyor edge is
stationary
a
max. 250
Movable conveyor side
Stationary conveyor side
a) Only settings with stationary conveyor edge on the right are shown. A setting with the stationary conveyor edge on the left
is also possible. All dimensions in millimeters.
max. 250
267.5
535
min. 35
max. 236.5
254
508
min. 35 mm
max. 236.5
450
267.5182.5
max. 216.5
234
min. 35
max. 216.5
251.5
468
21
PCB Conveyor
Productivity Lane (XPL) and Shuttle (XPS)
SIPLACE X-Series Productivity Lane (XPL)
Conveyor mode PCB width
lane 1 [mm]
PCB width
XPL [mm]
PCB width
lane 2 [mm]
XPL max. 154 max. 154 max. 154
a) Essential for use with the Productivity Lane.
b) A shuttle is necessary if machines with a stationary left or right conveyor side are mixed together in a line.
SIPLACE X-Series
Productivity Shuttle
(XPS)
a, b
The shuttle module transfers
PCBs from up to three incom-
ing conveyor tracks to up to
three outgoing conveyor
tracks. The virtual PCB panel
coming in on a conveyor
track is transferred to an out-
going conveyor section. This
function for distributing the
PCBs on the shuttle is adjust-
able.
The “Productivity Lane”
option in the middle of the
PCB conveyor allows PCBs
to be overtaken in the place-
ment machine. As with the
Productivity Lift, the place-
ment machines are operated
in parallel. Shuttles at the
start and end of a cluster dis-
tribute the PCBs to be pro-
cessed to the required lane of
the PCB conveyor or to the
third conveyor lane.
