4 SIPLACE X-Series Content Vision Sensor Tech nology 37 PCB Position Recognition 37 Bad Board Recognition 38 3D Coplanarity Lase r Module 39 2D Coplanarity Lase r Module 40 01005 Placement 41 SIPLACE Software 42 SIPLACE …
3
SIPLACE X-Series
Content
Overview of the Technical Data 5
Maximum Values 5
Machine Description 6
Modular Machine Concept 8
Example of the SIPLACE X4 9
Machine Performance 10
Placement Heads 12
Overview 12
Standard Functions / Options 13
Collect&Place Heads 14
TwinHead 15
Nozzle Changer 16
Technical Data 17
PCB Conveyor 18
Single Conveyor and Dual Conveyor 18
Technical Data 19
Conveyor Widths of the Flexible Dual Conveyor 20
Productivity Lane (XPL) and Shuttle (XPS) 21
Productivity Shuttle (XPS) 22
Technical Data 22
PCB Warpage 23
PCB Barcode for Product-Controlled Production
(Option) 24
Component Feeding 25
Component Changeover Table 25
Technical Data 26
X Tape Feeder Modules 27
S Tape Feeder Modules 28
Alternative SIPLACE Feeder Modules 29
Waffle-Pack Tray Holders 30
Matrix Tray Changer (MTC) 31
Technical Data 32
Waffle-Pack Changer (WPC) 33
Technical Data 34
Digital Vision System 35
Checking the Component Quality 36
Spezifikation.book Seite 3 Freitag, 12. August 2011 9:42 09
4
SIPLACE X-Series
Content
Vision Sensor Technology 37
PCB Position Recognition 37
Bad Board Recognition 38
3D Coplanarity Laser Module 39
2D Coplanarity Laser Module 40
01005 Placement 41
SIPLACE Software 42
SIPLACE Services 44
Training Courses for the SIPLACE X-Series 45
Maximum Quality in Production 46
Technical Data 47
SMEMA Interface 47
Connector Assignment 47
Signal Sequence 48
Siemens Signal Interface 49
Connector Assignment 49
Signal Sequence 50
Electrical Ratings and Compressed Air Supply 51
Electrical Connection, Interfaces and Compressed Air Connection 52
Dimensions and Set-up Conditions 53
Dimensions of the Placement System 54
Placement System’s Center of Gravity 54
Maneuvering Radii for the Component Changeover Tables 55
Maneuvering Radius for the MTC 56
Maneuvering Radii for the WPC 57
Spacing Distances for the Single Conveyor 58
Spacing Distances for the Flexible Dual Conveyor 59
Spacing Distances for the Flexible Dual Conveyor withProductivityLane 60
Spacing Distances for the Placement Machine with MTC 61
Spacing Distances for the Placement Machine with WPC 62
Transport and Delivery Configuration 63
Standard List 64
List of Options 65
List of Languages 67
SIPLACE X-Series Configuration Help 68
SR.605.xx 68
Awards 69
Spezifikation.book Seite 4 Freitag, 12. August 2011 9:42 09
5
Overview of the Technical Data
Maximum Values
Placement rate
a
IPC value
Benchmark value
Theoretical value
a) See page 10 for a definition of the output values.
81,000 comp./h
90,000 comp./h
124,500 comp./h
Component range 01005 - 200 x 125 mm²
Placement accuracy
b
/
angular accuracy
b) The accuracy value was measured using the vendor-neutral IPC standard.
± 22 µm, ± 0.05° / (3),
± 30 µm, ± 0.07° / (4)
Feeder module types Tape feeder modules, waffle-pack trays, stick
magazine feeders, bulk cases, dip modules,
application-specific OEM feeder modules
Feeding capacity, (SIPLACE X
component changeover table)
160 8 mm X feeder modules
Feeding capacity, (SIPLACE HF
component changeover table)
180 tracks with 3 x 8 mm S
PCB format max. 610 x 535 mm²
PCB thickness 0.3 - 4.5 mm (others available on request)
PCB weight max. 3 kg
Camera 6 illumination levels

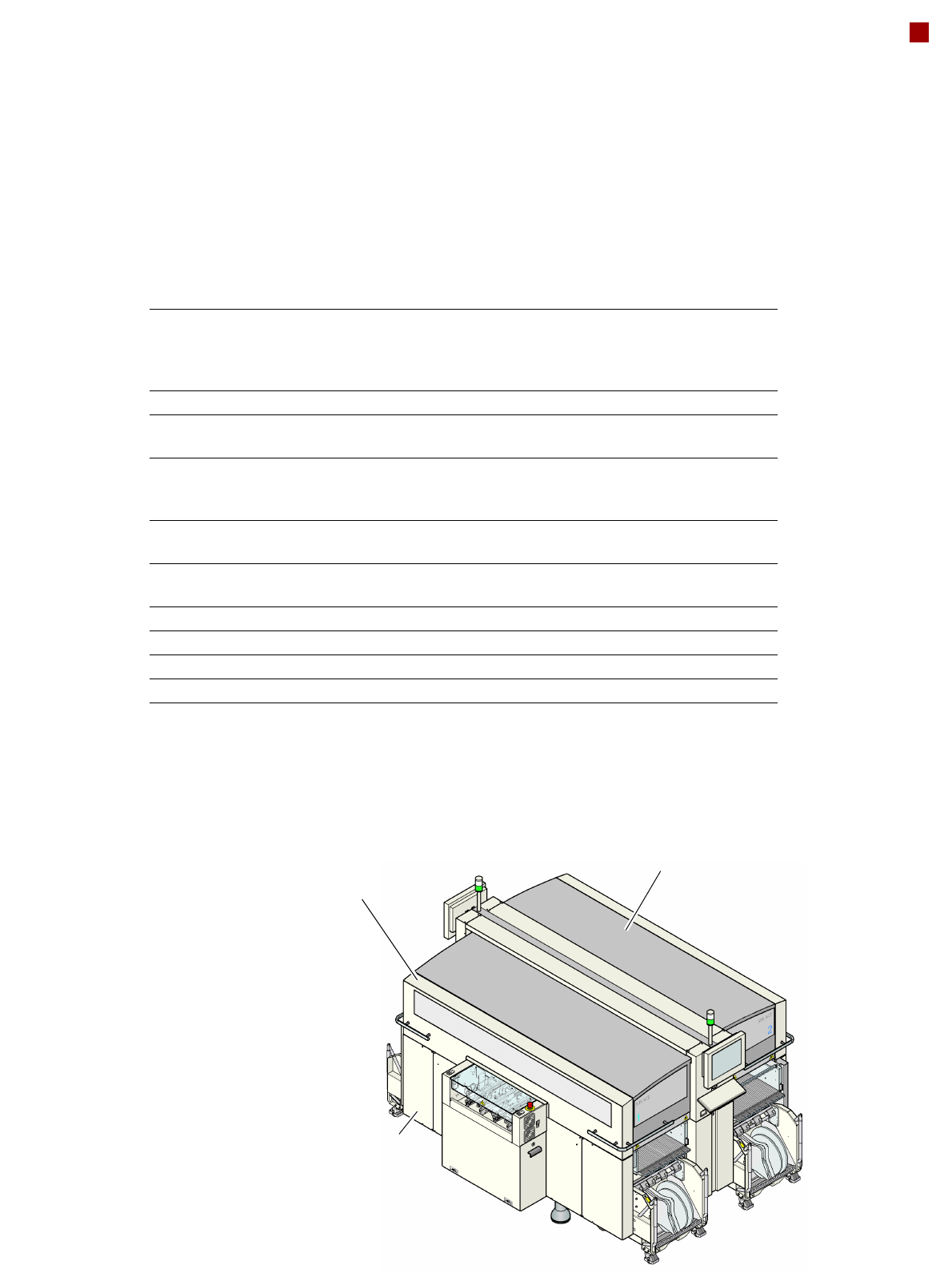

SIPLACE X4
SIPLACE X-Series machine colors
Machine protection: Light Basic Gray
(SIPLACE color code B002)
Pantone solid coated:
Warm Gray 3C
Hoods: Slate Gray, RAL 7015
(SIPLACE color code C002)
Hoods: Light Basic Gray
(SIPLACE color code B002)
Pantone solid coated:
Warm Gray 3C
