Specification SIPLACE X-Series规格说明书1.pdf - 第58页
58 Technical Data Spacing Distances for the Single Conveyor Stationary conveyor side left Stationary conveyor side right
57
Technical Data
Maneuvering Radii for the WPC
Machine Location 2 Location 4
Maneuvering radius R
X3 1300 -
X2 1300 1300
Distance L1: Middle of machine to outer edge of WPC
X3 1824 -
X2 1824 1824
Distance L2: Middle of machine to the wall
X3 2558 -
X2 2558 2558
58
Technical Data

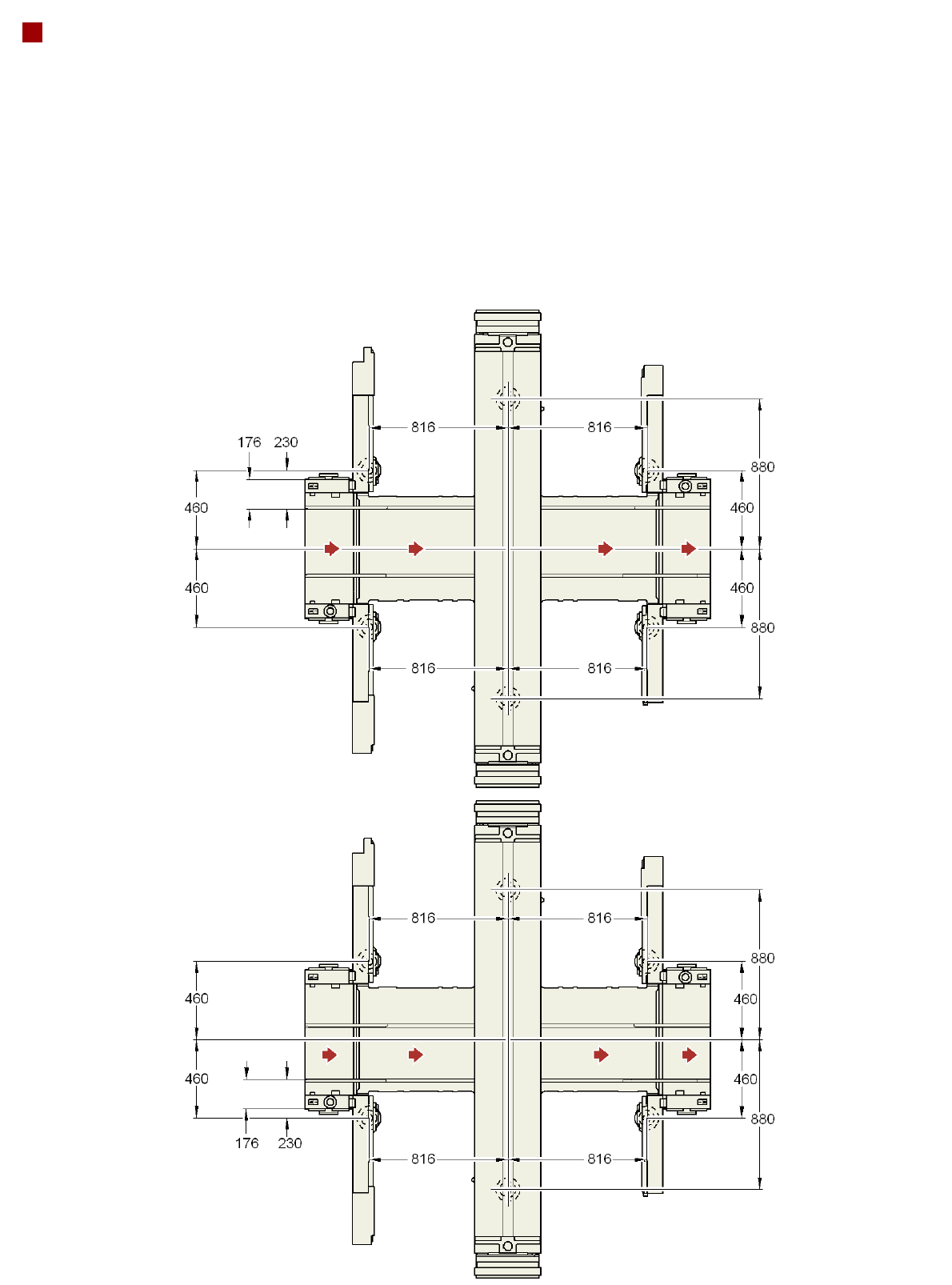

Spacing Distances for the Single Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
59
Technical Data

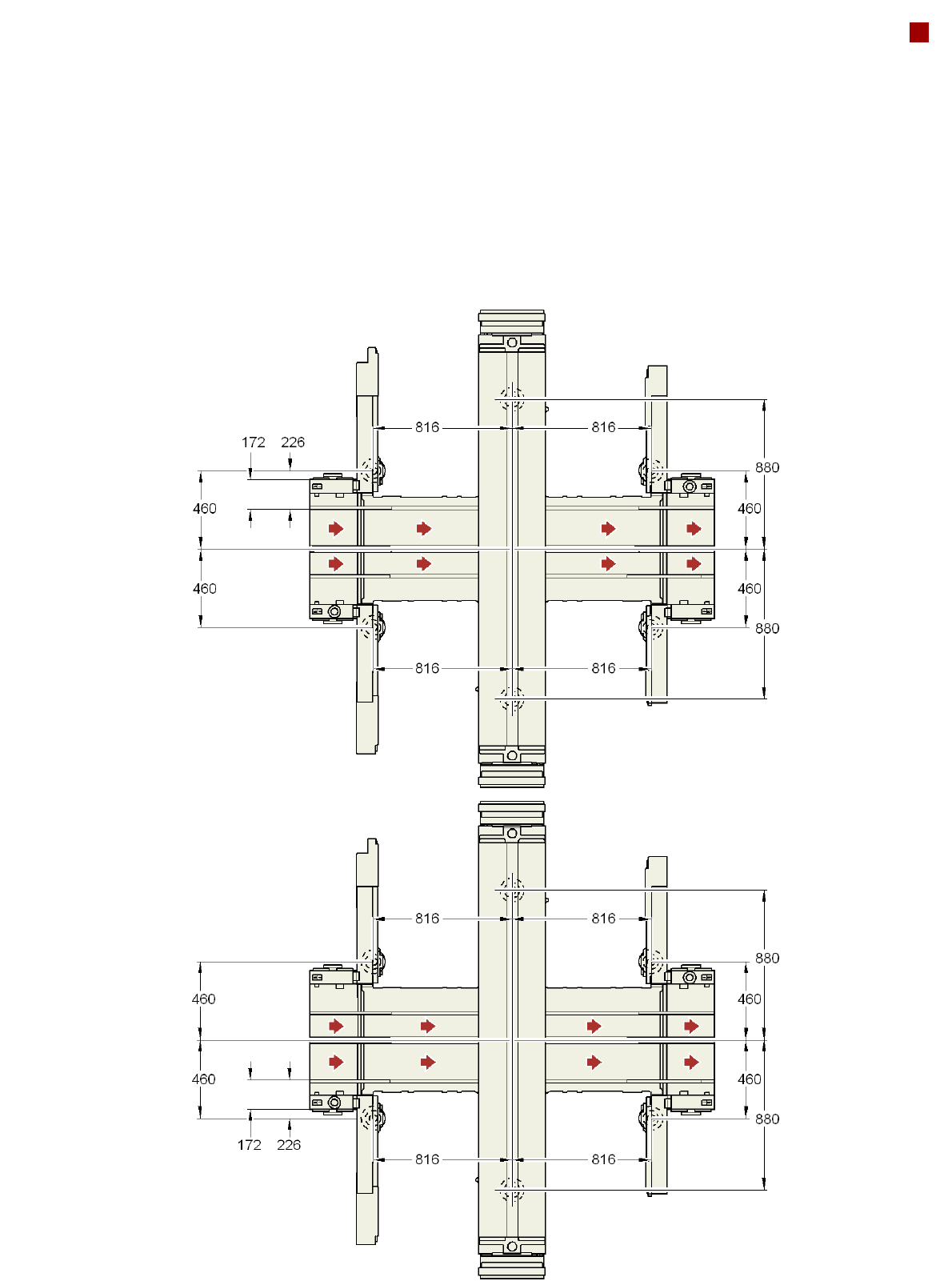

Spacing Distances for the Flexible Dual Conveyor
Stationary conveyor
side left
Stationary conveyor
side right
