56 Technical Data Maneuvering Radius for the MTC Machine Location 2 Location 4 Maneuvering ra dius R X4 1303 1303 X3 1123 1303 X2 1123 1123 Distance L1: Middle of machine to outer edge of MTC X4 1802 1802 X3 1622 1802 X2…
55
Technical Data
Maneuvering Radii for the
Component Changeover Tables
Machine Maneuvering radius R
Location 1 Location 2 Location 3 Location 4
X4 750 750 750 750
X3 750 600 750 750
X2 750 600 750 600
56
Technical Data

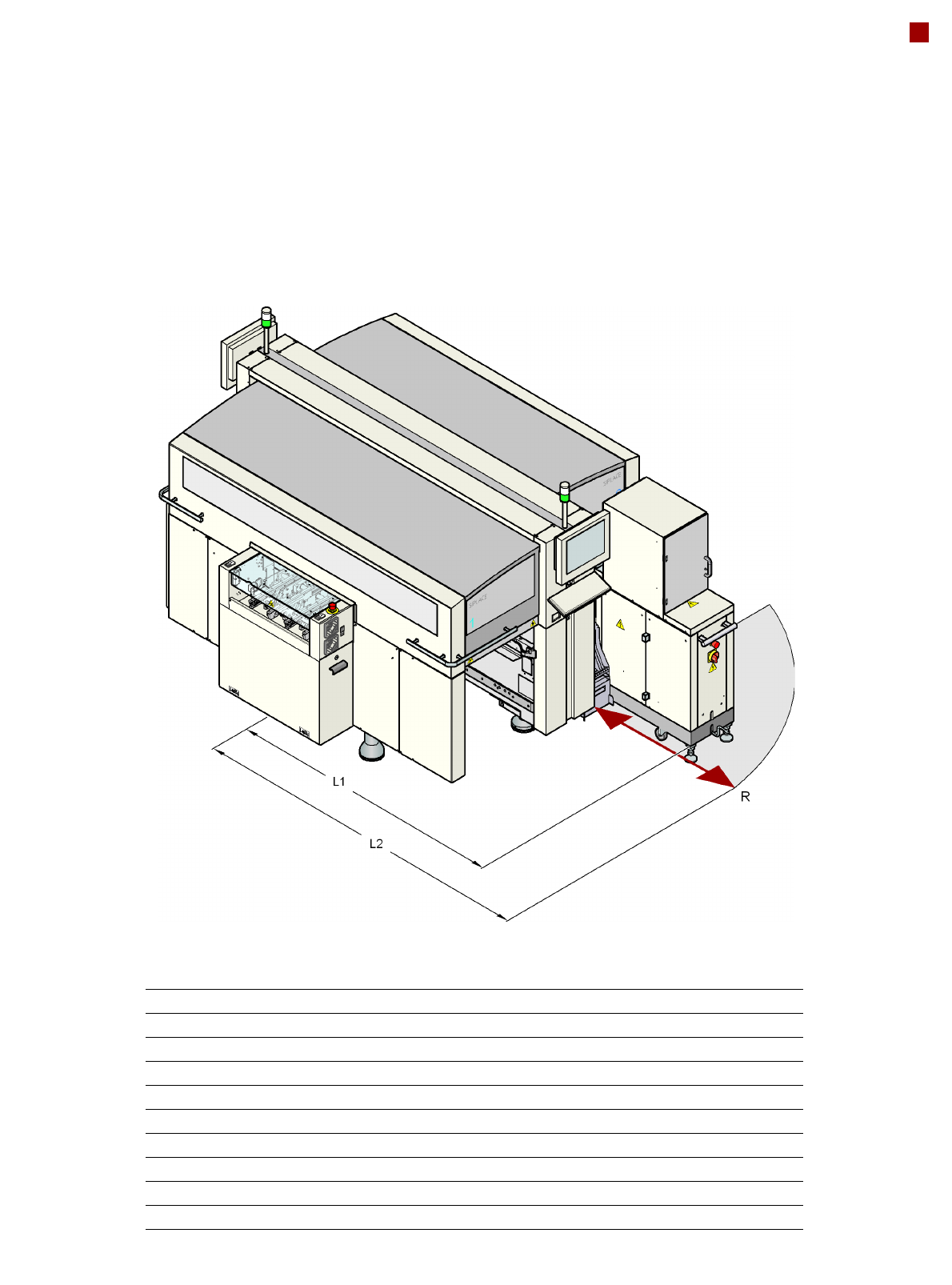

Maneuvering Radius for the MTC
Machine Location 2 Location 4
Maneuvering radius R
X4 1303 1303
X3 1123 1303
X2 1123 1123
Distance L1: Middle of machine to outer edge of MTC
X4 1802 1802
X3 1622 1802
X2 1622 1622
Distance L2: Middle of machine to the wall
X4 2562 2562
X3 2382 2562
X2 2382 2382
57
Technical Data
Maneuvering Radii for the WPC
Machine Location 2 Location 4
Maneuvering radius R
X3 1300 -
X2 1300 1300
Distance L1: Middle of machine to outer edge of WPC
X3 1824 -
X2 1824 1824
Distance L2: Middle of machine to the wall
X3 2558 -
X2 2558 2558
