55 Technical Data Maneuvering Radii for the Component Changeover Tables Machine Maneuvering radius R Location 1 Location 2 Loc ation 3 Location 4 X4 750 750 750 750 X3 750 600 750 750 X2 750 600 750 600
54
Technical Data

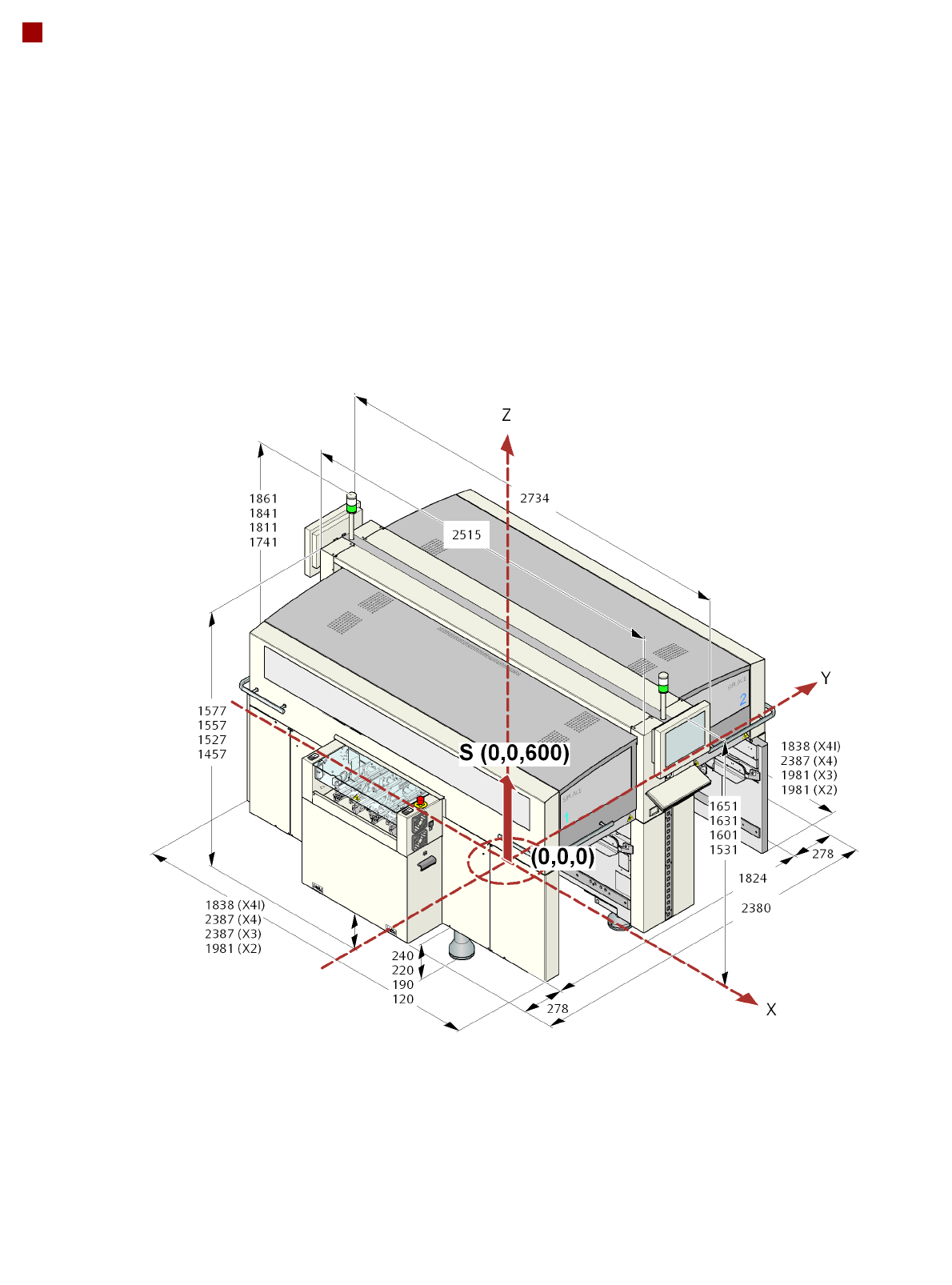

Dimensions of the Placement System
Placement System’s Center of Gravity
55
Technical Data

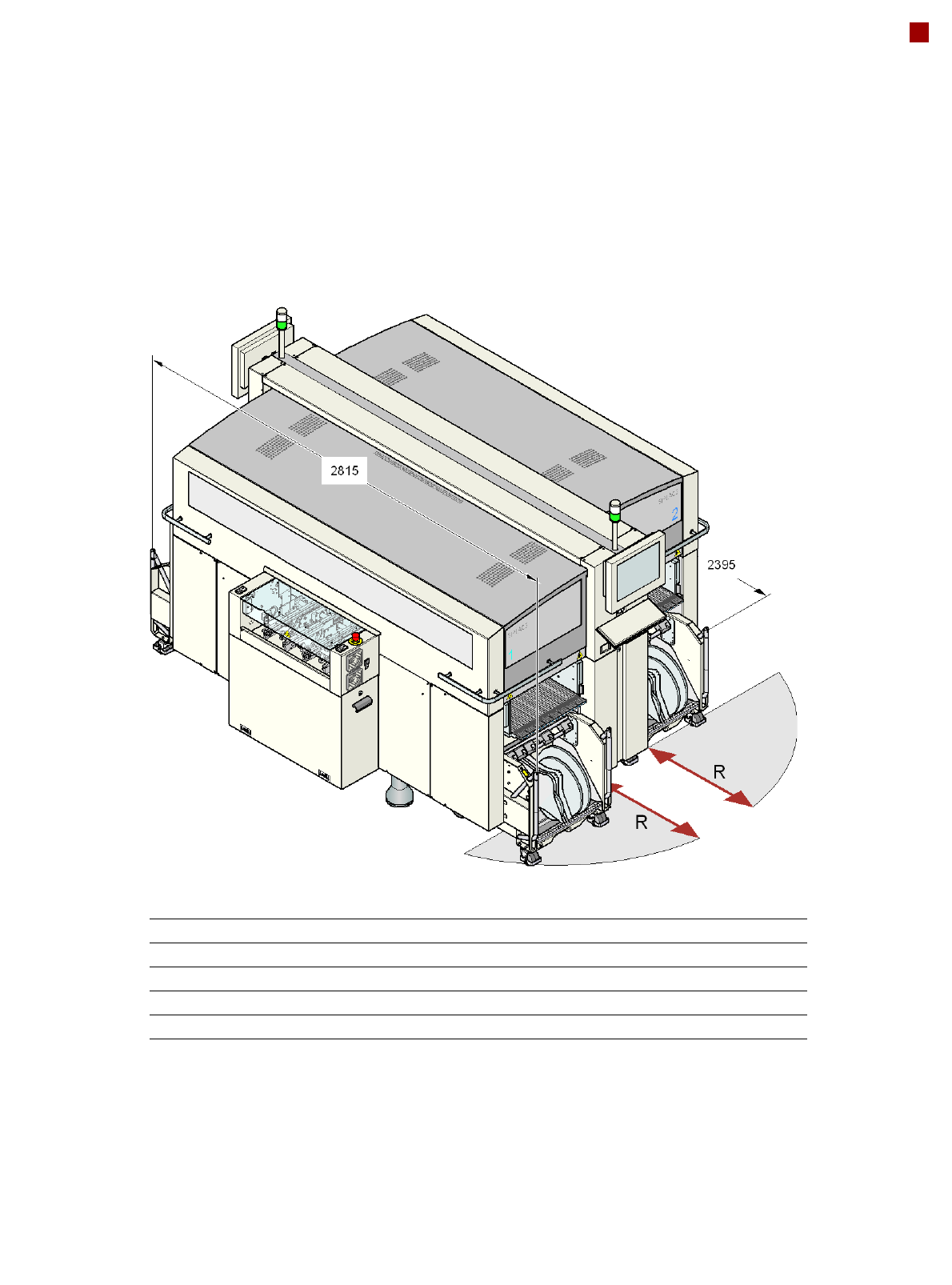

Maneuvering Radii for the
Component Changeover Tables
Machine Maneuvering radius R
Location 1 Location 2 Location 3 Location 4
X4 750 750 750 750
X3 750 600 750 750
X2 750 600 750 600
56
Technical Data

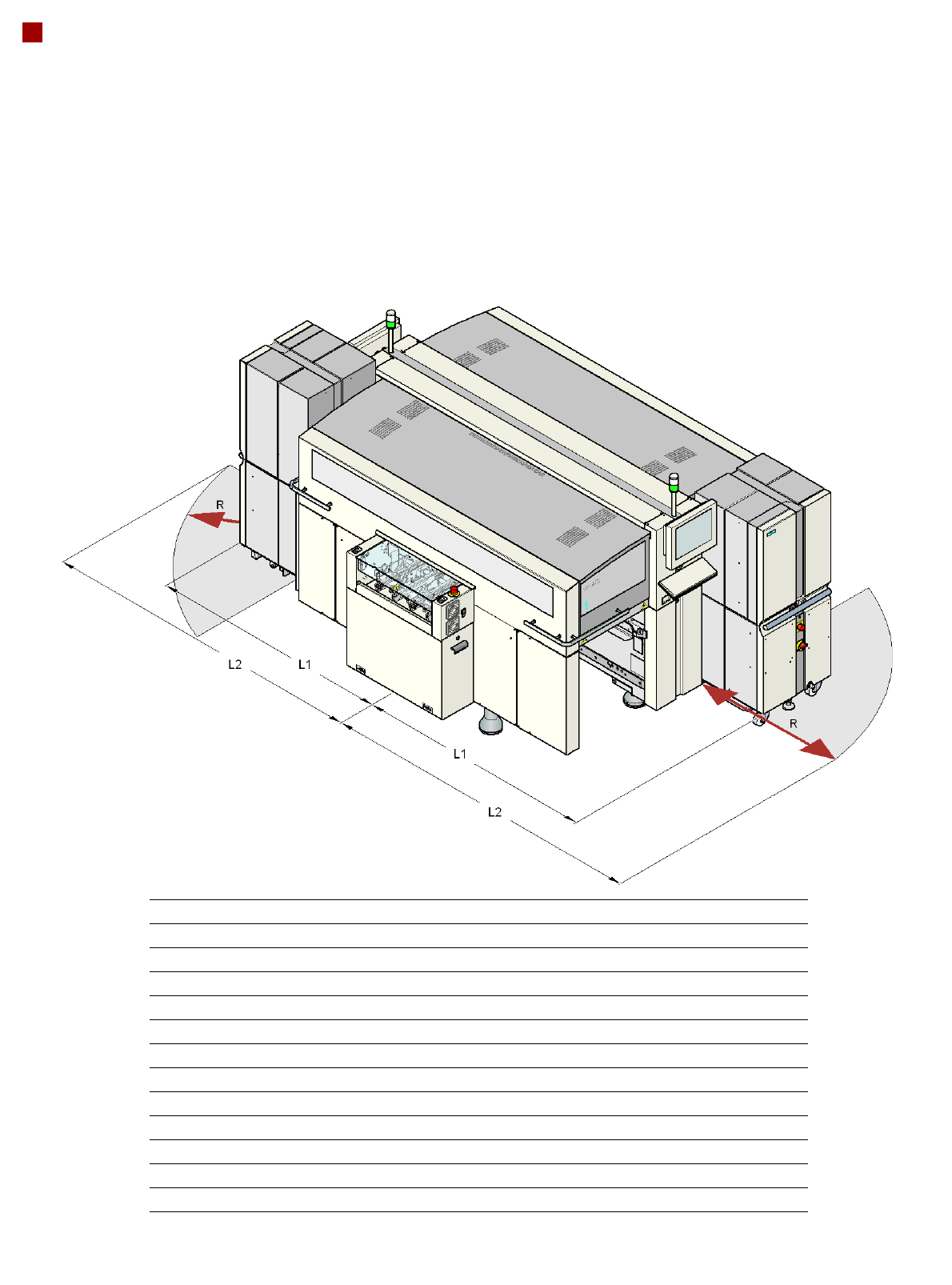

Maneuvering Radius for the MTC
Machine Location 2 Location 4
Maneuvering radius R
X4 1303 1303
X3 1123 1303
X2 1123 1123
Distance L1: Middle of machine to outer edge of MTC
X4 1802 1802
X3 1622 1802
X2 1622 1622
Distance L2: Middle of machine to the wall
X4 2562 2562
X3 2382 2562
X2 2382 2382
