30 Component Feeding Waffle-Pack Tray Holders Technical data for SIPLACE X waffle-pa ck tray Dimensions LxWxH 429 x 376 x 200 mm³ Location assign ment on the SIPLACE X component changeover t able 32 Positioning options o…

Component Feeding

Alternative SIPLACE Feeder Modules

Technical data

Linear vibratory feeder, type 3

Packaging form

Number of tracks and width

Location

Stick magazines

SIPLACE X component

changeover table

3 x  9.5 mm

2 x  15 mm

1 x  30 mm

Takes up 3 locations of a

3 x 8 mm X feeder module

SIPLACE HF component

changeover table

3 x  9.5 mm

2 x  15 mm

1 x  30 mm

Takes up 1 location of a

3 x 8 mm S feeder module

Dip module

for SIPLACE HF component

changeover table

Takes up 3 locations of a 3 x 8 mm S feeder module

Linear dip module (LDU X)

for SIPLACE X component

changeover table

Takes up 9 locations of an 8 mm X feeder module,

no more than 1 per head

a) with X adapter.

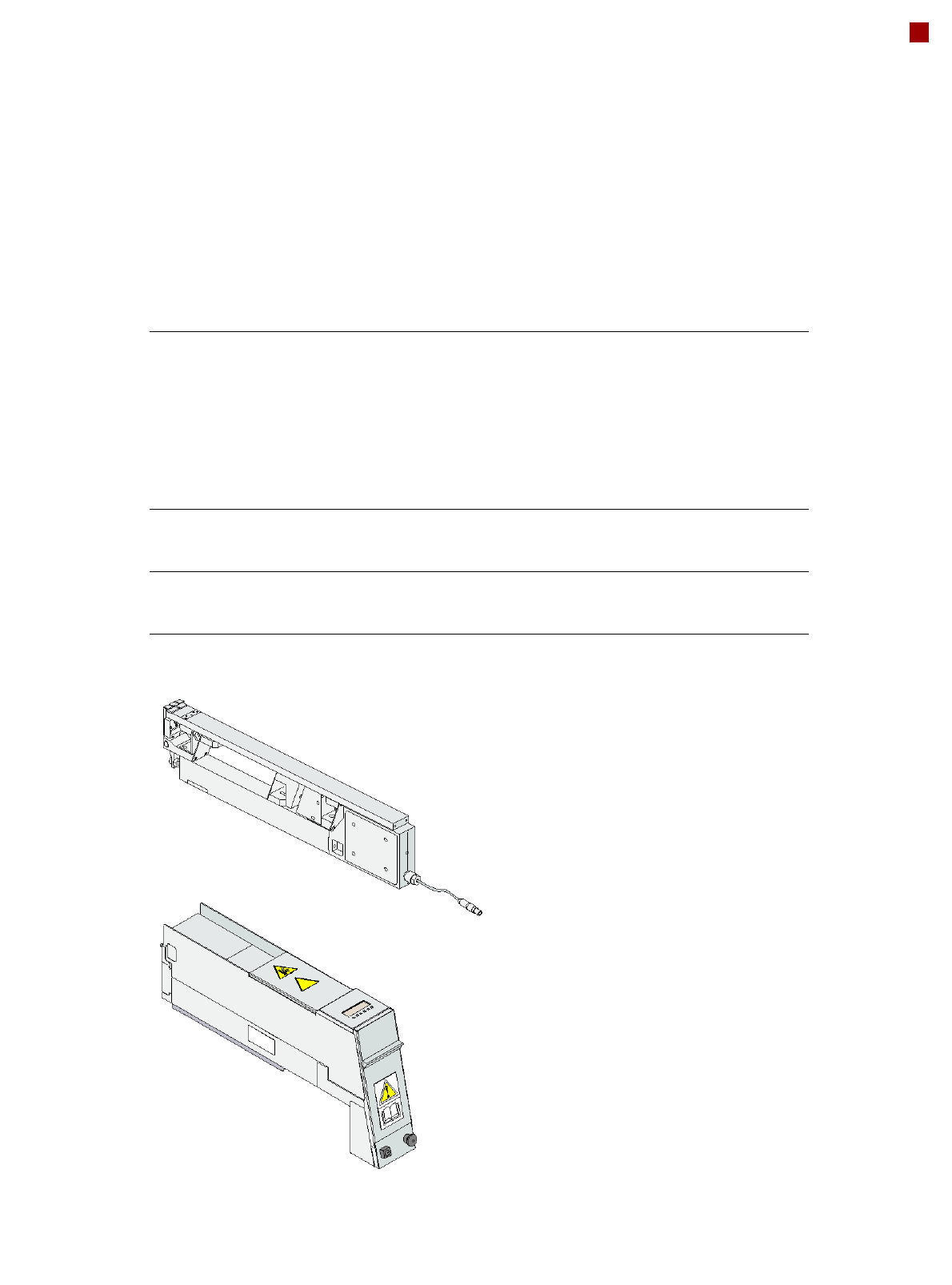

Linear vibratory feeder, type 3

Linear dip module

Description

Linear vibratory feeders

are used to process compo-

nents in stick magazines.

They are easy to set up on

the SIPLACE HF or

SIPLACE X component

changeover table using the X

adapter. They can be refilled

without stopping the

machine.

The DIP module is suitable

for dip-fluxing flip-chips,

CSPs (chip-scale/size pack-

ages) and for wetting flip-chip

bumps with isotropic, con-

ductive adhesive.

Other alternative feeder

modules for the SIPLACE HF

component changeover table

are the label presenter, the

surftape feeder module and

the reject conveyor. The

adapter X allows both the

label presenter module and

the reject conveyor to be set

up on the SIPLACE X com-

ponent changeover table.

Component Feeding

Waffle-Pack Tray Holders

Technical data for SIPLACE X waffle-pack tray

Dimensions LxWxH 429 x 376 x 200 mm³

Location assignment on the

SIPLACE X component

changeover table

Positioning options on the

X-series machines

Locations 2 and 4

Range of placement heads TwinHead, C&P6, C&P12

Max. waffle-pack tray height

including component

C&P12

C&P6

TwinHead

16 mm

30 mm

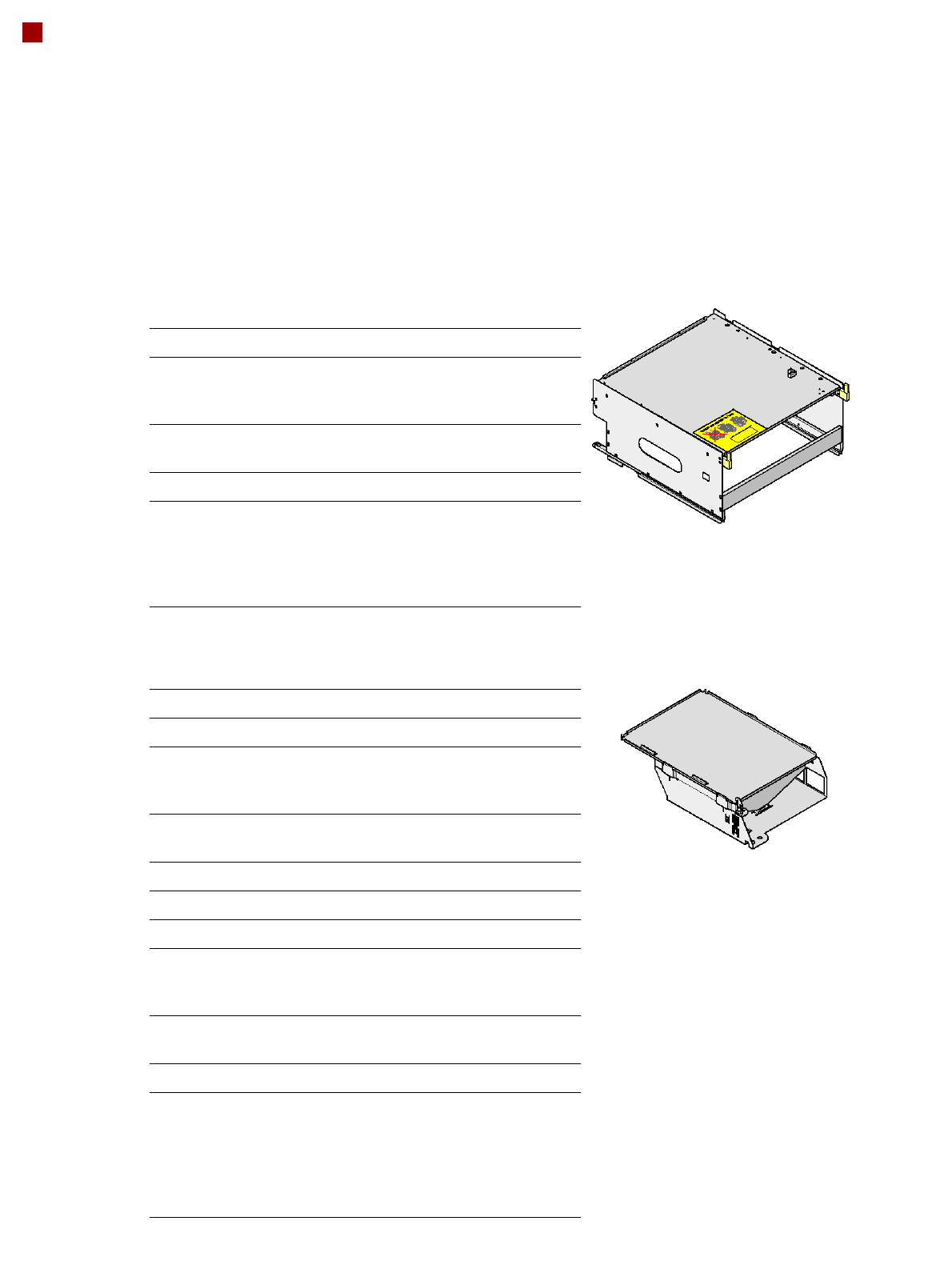

Waffle-pack tray holder

SIPLACE X

Waffle-pack tray holder

SIPLACE HF

Technical data for SIPLACE HF waffle-pack tray

Holder for large waffle-pack tray

Dimensions LxWxH 425 x 264 x 113 mm³

Location assignment on the

SIPLACE HF component

changeover table

Positioning options on the

X-series machines

Locations 2 and 4

Range of placement heads TwinHead, C&P6, C&P12

Holder for small waffle-pack tray

Dimensions LxWxH 425 x 140 x 113 mm³

Location assignment on the

SIPLACE HF component

changeover table

Positioning options on the

X-series machines

Locations 2 and 4

Range of placement heads TwinHead, C&P6, C&P12

Max. waffle-pack tray height

including component

C&P20

C&P12

C&P6

TwinHead

Not possible

12.5 mm

28.5 mm

Component Feeding

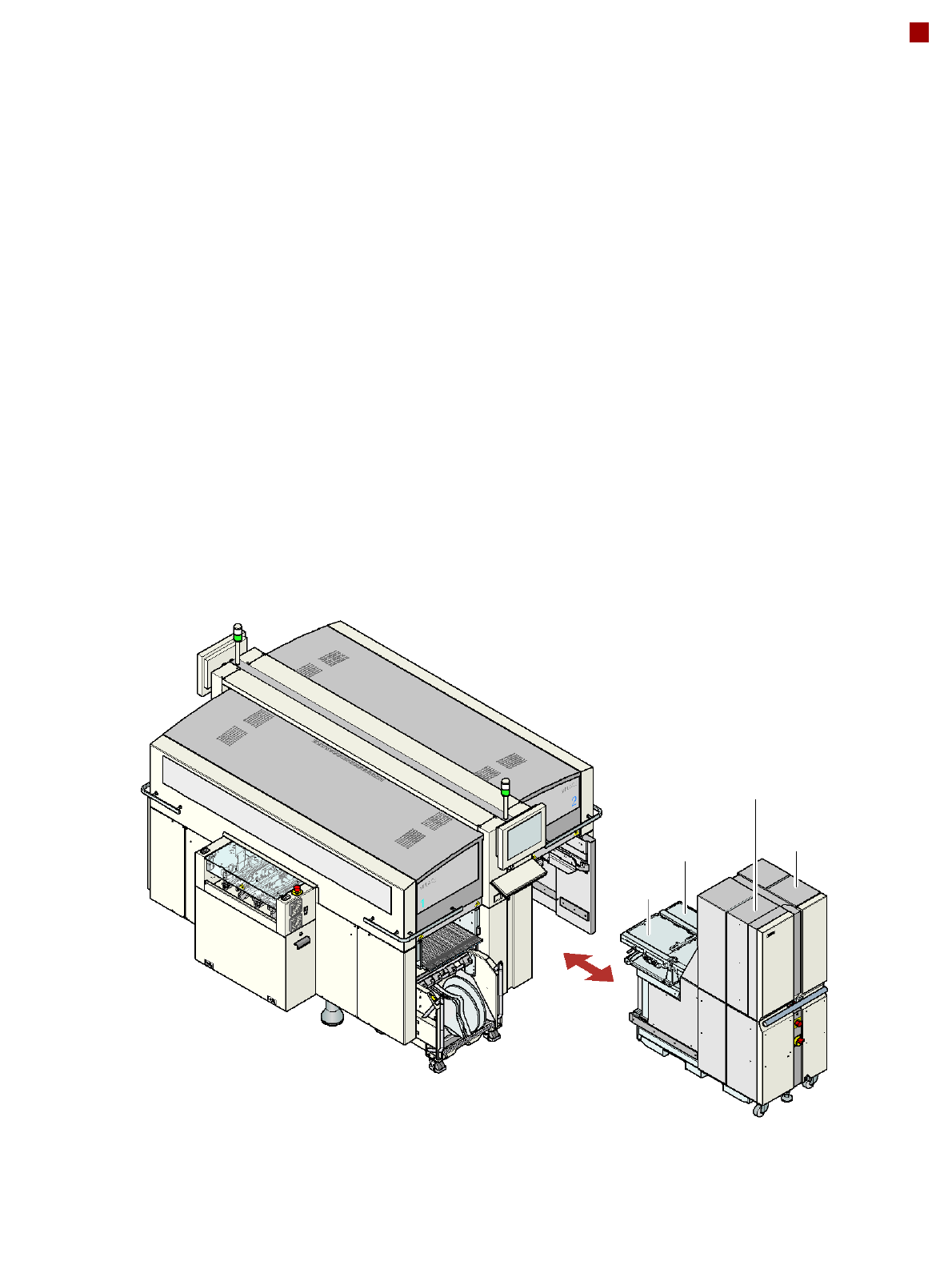

Matrix Tray Changer (MTC)

For numerous tray fed com-

ponents we recommend an

automatic tray change using

a matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled.

Two bins with component

trays move independently of

one another in the vertical

direction until the desired

magazine is within the range

of the feed axis. The horizon-

tal feed axis transports the

waffle-pack tray from the bin

into the access area of the

placement head.

The first magazine is made

available as soon as a PCB

moves onto the PCB con-

veyor, and valid panel and

set-up data is available. All

other magazine changes are

carried out time-neutrally

during the placement pro-

cess. The magazines can be

refilled without stopping the

machine. Defective compo-

nents are returned to the

original tray.

The matrix tray changer can-

not be used with the 20-

nozzle Collect& Place head.

Tray supply 1

Feed

axis 1

Positioning options for the MTC:

locations 2 and 4

Tray supply 2

Feed

axis 2
