Technical Data

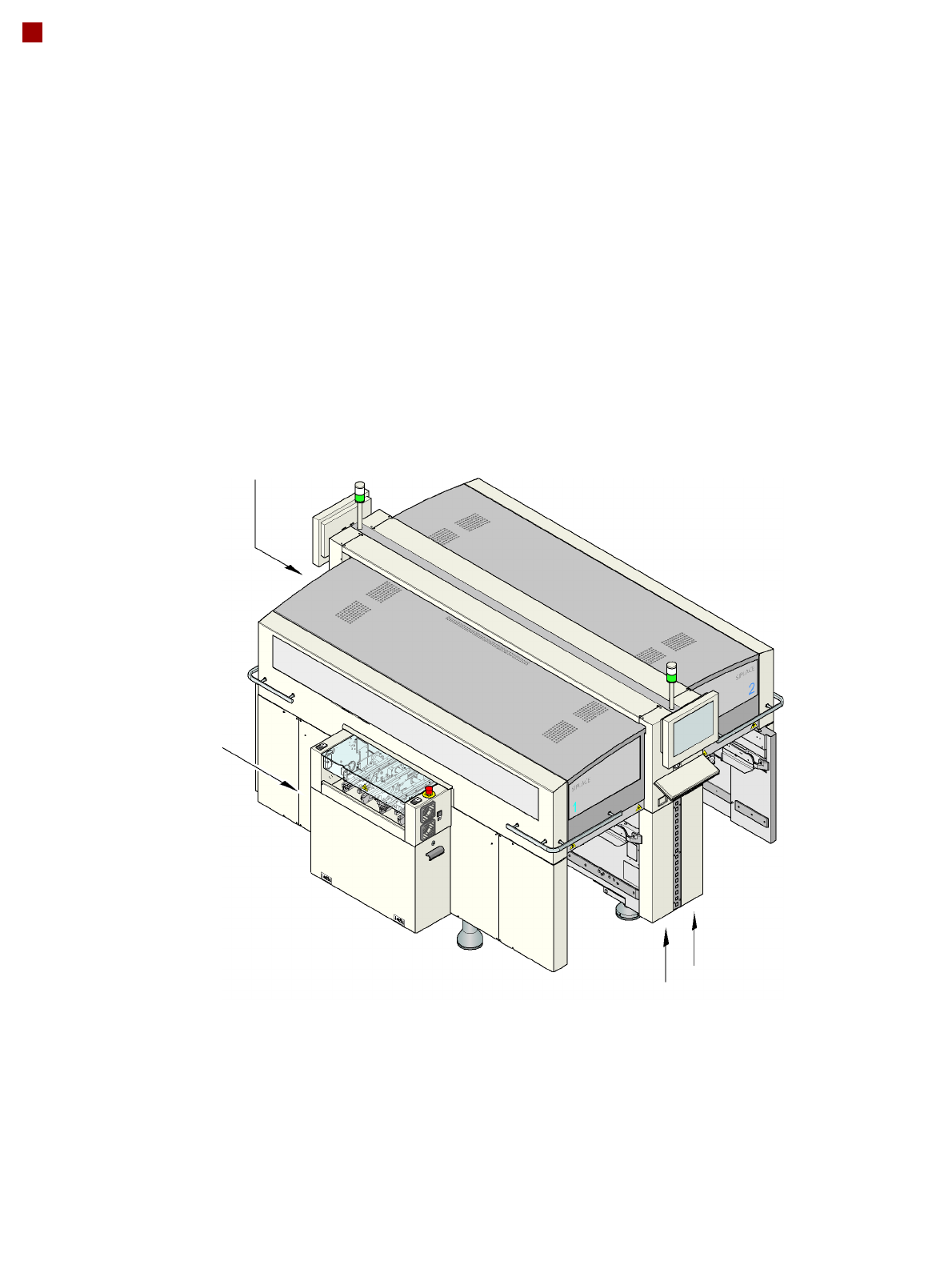

Electrical Connection, Interfaces and
Compressed Air Connection
Compressed air
connection
SMEMA/Siemens interface
PC and LAN connection
Power connector
5 x 6 mm² cable with CEKON plug 5 x 32 A (3 x 208 VAC / 3 x 230 VAC)
5 x 4 mm² cable with CEKON plug 5 x 16 A (3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
Power supply connection
53
Technical Data
Dimensions and Set-up Conditions
Length
with both extension kits
with one extension kit
with no extension kits
2380 mm
2103 mm
1826 mm
Width of the basic machine
X4 with component changeover table (locations 1 + 4)
X4 with component changeover table (locations 2 + 3)
X3 with component changeover table (locations 1 + 4)
X3 with component changeover table (locations 2 + 3)
X2 with component changeover table (locations 1 + 4)
X2 with component changeover table (locations 2 + 3)
with monitors
with keyboards
2815 mm
2815 mm
2815 mm
2395 mm
2395 mm
2395 mm
2766 mm
2804 mm
Height of the machine
with indicator lamp
with folded-up protective covers
max. 1863 mm
1990 mm (PCB transport height 830 mm)
2060 mm (PCB transport height 900 mm)
2090 mm (PCB transport height 930 mm)
2112 mm (PCB transport height 950 mm)
Machine ground clearance 120 mm (PCB transport height 830 mm)
190 mm (PCB transport height 900 mm)
220 mm (PCB transport height 930 mm)
240 mm (PCB transport height 950 mm)
Weight
X4 (machine with component changeover table)
X4 (full configuration with feeder modules)
X3 (machine with component changeover table)
X3 (full configuration with feeder modules)
X2 (machine with component changeover table)
X2 (full configuration with feeder modules)
3880 kg
4255 kg
3790 kg
4171 kg
3705 kg
4086 kg
Footprint
X4, X3 and X2 6.70 m²
Load per unit area
a
X4
X3
X2
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
5.98 kN/m²
5.84 kN/m²
6.20 kN/m²
Number of machine feet 6
Maximum noise emissions 75 dB (A)
Room temperature between 15°C and 35°C
Atmospheric humidity 30 to 75 % (no higher than 45% on aver-
age to prevent any possibility of conden-
sation on the machine)
54
Technical Data
Dimensions of the Placement System
Placement System’s Center of Gravity
